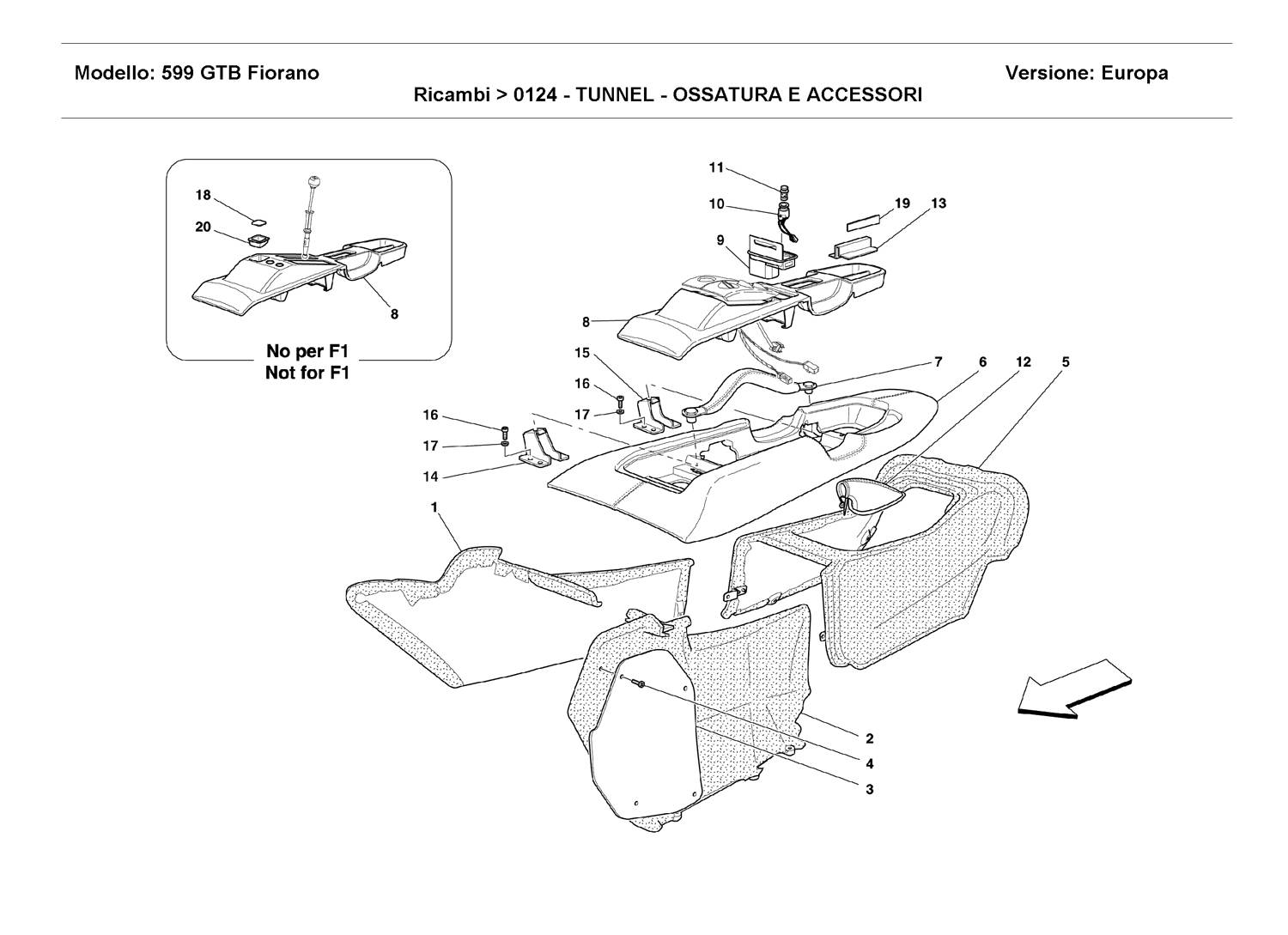

TUNNEL - FRAMEWORK AND ACCESSORIES

Go to Split View

TUNNEL - FRAMEWORK AND ACCESSORIES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 685571 *Qty: 1 R.H. FRONT TUNNEL COVER
-Not for RHD-
Call
Location: 1 Prev | Next Part: 691335 *Qty: 1 R.H. FRONT TUNNEL COVER
-Valid for RHD-
Call
Location: 2 Prev | Next Part: 685572 *Qty: 1 L.H. FRONT TUNNEL COVER
-Not for RHD-
Call
Location: 2 Prev | Next Part: 691336 *Qty: 1 L.H. FRONT TUNNEL COVER
-Valid for RHD-
Call
Location: 3 Prev | Next Part: 69353600 *Qty: 1 ACCELERATOR PEDAL PROTECTION
-Not for RHD-
Call
Location: 3 Prev | Next Part: 67932500 *Qty: 1 ACCELERATOR PEDAL PROTECTION
-Valid for RHD-
Call
Location: 4 Prev | Next Part: 15914777 *Qty: 4 SCREW $0.90
Location: 5 Prev | Next Part: 690121 *Qty: 1 REAR TUNNEL COVER Call
Location: 6 Prev | Next Part: 691561 *Qty: 1 CENTRAL CONSOLE
-Valid for F1-
-Not for RHD-
Call
Location: 6 Prev | Next Part: 691337 *Qty: 1 CENTRAL CONSOLE
-Valid for F1-
-Valid for RHD-
Call
Location: 6 Prev | Next Part: 692471 *Qty: 1 CENTRAL CONSOLE
-Not for F1
-
-Not for RHD-
Call
Location: 6 Prev | Next Part: 691353 *Qty: 1 CENTRAL CONSOLE
-Not for F1
-
-Valid for RHD-
Call
Location: 7 Prev | Next Part: 691553 *Qty: 1 HANDLE MOULDING
-Not for RHD-
Call
Location: 7 Prev | Next Part: 691338 *Qty: 1 HANDLE MOULDING
-Valid for RHD-
Call
Location: 8 Prev | Next Part: 69143200 *Qty: 1 CENTER TUNNEL
-Valid for F1
-
-Carbon version-
-Not for RHD-
$4,239.48
Location: 8 Prev | Next Part: 69135900 *Qty: 1 CENTER TUNNEL
-Valid for F1-
-Carbon version-
-Valid for RHD-
Call
Location: 8 Prev | Next Part: 69247500 *Qty: 1 CENTER TUNNEL
-Not for F1-
-Carbon version-
-Not for RHD-
$9,674.80
Location: 8 Prev | Next Part: 69135400 *Qty: 1 CENTER TUNNEL
-Not for F1
-
-Carbon version-
-Valid for RHD-
Call
Location: 8 Prev | Next Part: 692584 *Qty: 1 CENTER TUNNEL
-Valid for F1
-
-Leather version-
-Not for RHD-
Call
Location: 8 Prev | Next Part: 697028 *Qty: 1 CENTER TUNNEL
-Valid for F1
-
-Leather version-
-Valid for RHD-
Call
Location: 8 Prev | Next Part: 693555 *Qty: 1 CENTER TUNNEL
-Not for F1-
-Leather version-
-Not for RHD-
Call
Location: 8 Prev | Next Part: 697023 *Qty: 1 CENTER TUNNEL
-Not for F1
-
-Leather version-
-Valid for RHD-
Call
Location: 9 Prev | Next Part: 69717400 *Qty: 1 ASH TRAY $215.04
Location: 10 Prev | Next Part: 183271 *Qty: 1 CIGAR LIGHTER BODY $19.42
Location: 11 Prev | Next Part: 183270 *Qty: 1 CIGAR LIGHTER $26.58
Location: 12 Prev | Next Part: 685576 *Qty: 1 HAND BRAKE COVER
-Not for RHD-
Call
Location: 12 Prev | Next Part: 698629 *Qty: 1 HAND BRAKE COVER
-Valid for RHD-
Call
Location: 13 Prev | Next Part: 691427 *Qty: 1 R.H. REAR END PLATE
-Carbon version-
-Not for RHD-
-Not as spare part-
Call
Location: 13 Prev | Next Part: 698612 *Qty: 1 R.H. REAR END PLATE
-Carbon version-
-Valid for RHD-
-Not as spare part-
Call
Location: 13 Prev | Next Part: 691428 *Qty: 1 L.H. REAR END PLATE
-Carbon version-
-Not for RHD-
-Not as spare part-
Call
Location: 13 Prev | Next Part: 698613 *Qty: 1 L.H. REAR END PLATE
-Carbon version-
-Valid for RHD-
-Not as spare part-
Call
Location: 13 Prev | Next Part: 697035 *Qty: 1 REAR END PLATE
-Not for RHD-
Call
Location: 13 Prev | Next Part: 698614 *Qty: 1 REAR END PLATE
-Not for F1
-
-Valid for RHD-
Call
Location: 13 Prev | Next Part: 698620 *Qty: 1 REAR END PLATE
-Valid for F1-
-Valid for RHD-
Call
Location: 14 Prev | Next Part: 69246300 *Qty: 1 FRONT BRACKET
-Not for RHD-
Call
Location: 14 Prev | Next Part: 69708600 *Qty: 1 FRONT BRACKET
-Valid for RHD-
Call
Location: 15 Prev | Next Part: 69246400 *Qty: 1 REAR BRACKET
-Not for RHD-
Call
Location: 15 Prev | Next Part: 69701800 *Qty: 1 REAR BRACKET
-Valid for RHD-
Call
Location: 16 Prev | Next Part: 16043224 *Qty: 8 SCREW $0.90
Location: 17 Prev | Next Part: 10519601 *Qty: 8 WASHER Superseded
Location: 18 Prev | Next Part: 69248700 *Qty: 1 FRONT END PLATE
-Not for F1
-
Call
Location: 19 Prev | Next Part: 69959600 *Qty: 1 VERTICAL SHIELD
-Carbon version-
-Not for RHD-
Call
Location: 19 Prev | Next Part: 69959800 *Qty: 1 VERTICAL SHIELD
-Carbon version-
-Valid for RHD-
-Valid for F1-
Call
Location: 19 Prev | Next Part: 69959700 *Qty: 1 VERTICAL SHIELD
-Carbon version-
-Valid for RHD-
-Not for F1
-
Call
Location: 20 Prev | Next Part: 69860300 *Qty: 1 CONTAINER-Not for F1- Call

* Quantity shown indicates the number of pieces used in the diagram.
