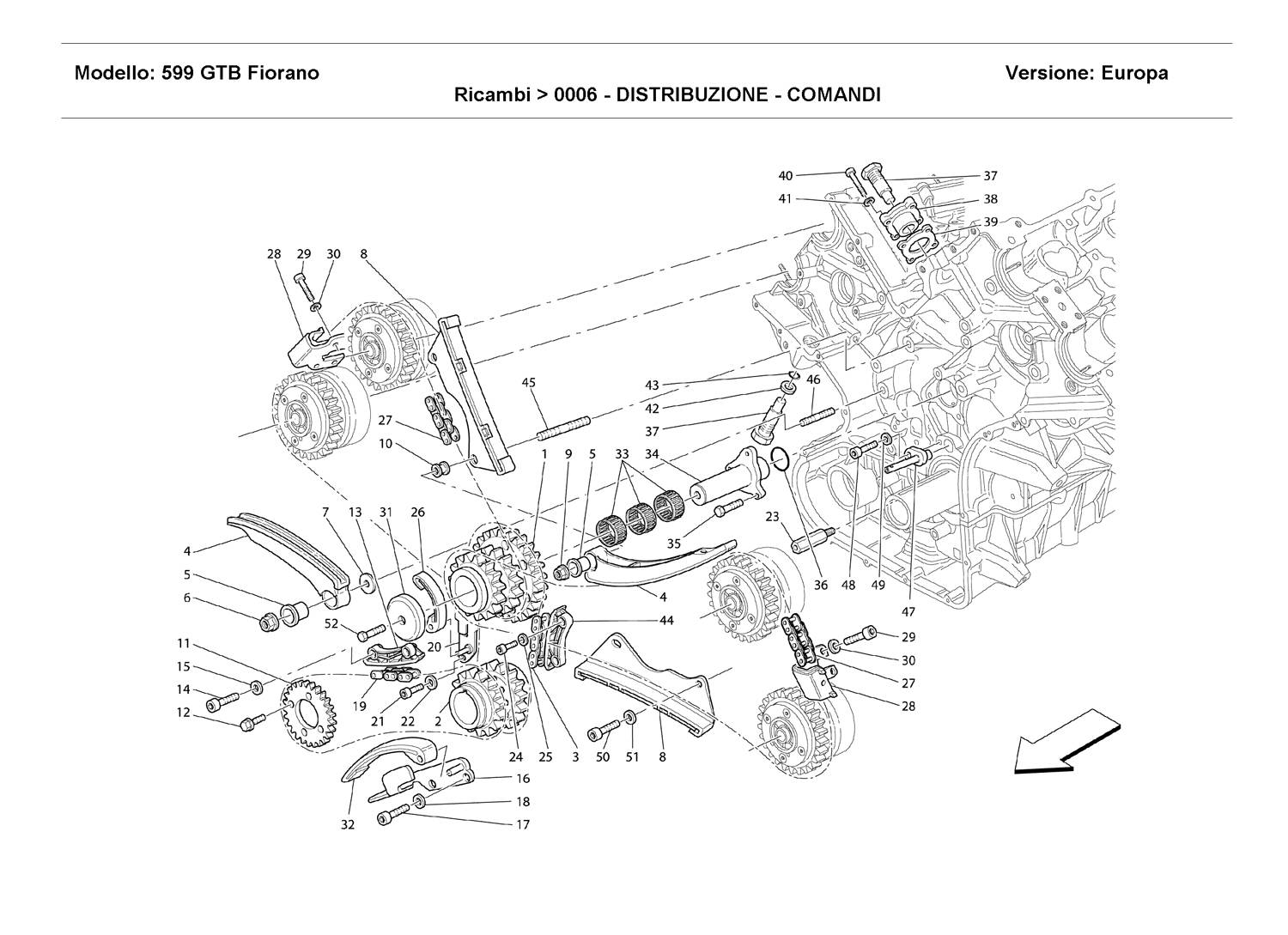

TIMING - CONTROLS

Go to Split View

TIMING - CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 227190 *Qty: 1 TRANSMISSION TOOTHED WHEEL $209.33
Location: 2 Prev | Next Part: 186854 *Qty: 1 CRANKSHAFT TOOTHED WHEEL $146.85
Location: 3 Prev | Next Part: 175286 *Qty: 1 TRANSMISSION CHAIN $47.01
Location: 4 Prev | Next Part: 183761 *Qty: 2 MOBILE GUIDE SHOE $432.10
Location: 5 Prev | Next Part: 175303 *Qty: 2 BUSHING $13.43
Location: 6 Prev | Next Part: 177778 *Qty: 1 NUT $1.83
Location: 7 Prev | Next Part: 175306 *Qty: 1 WASHER $5.06
Location: 8 Prev | Next Part: 198034 *Qty: 2 FIXED TENSION $72.71
Location: 9 Prev | Next Part: 177778 *Qty: 1 NUT $1.83
Location: 10 Prev | Next Part: 183929 *Qty: 1 BUSHING $9.73
Location: 11 Prev | Next Part: 187656 *Qty: 1 TOOTHED WHEEL CONTROL PUMP $260.76
Location: 12 Prev | Next Part: 186668 *Qty: 4 SCREW $17.31
Location: 13 Prev | Next Part: 186186 *Qty: 1 FIXED TENSION $29.66
Location: 14 Prev | Next Part: 14305424 *Qty: 2 SCREW Superseded
Location: 15 Prev | Next Part: 11197774 *Qty: 2 WASHER Superseded
Location: 16 Prev | Next Part: 192922 *Qty: 1 SUPPORT $46.56
Location: 17 Prev | Next Part: 14305624 *Qty: 2 SCREW $0.90
Location: 18 Prev | Next Part: 11197774 *Qty: 2 WASHER Superseded
Location: 19 Prev | Next Part: 175314 *Qty: 1 PUMPS CONTROL CHAIN $48.98
Location: 20 Prev | Next Part: 186159 *Qty: 1 COMPLETE SUPPORT $31.45
Location: 21 Prev | Next Part: 14305724 *Qty: 2 SCREW $0.90
Location: 22 Prev | Next Part: 11197774 *Qty: 2 WASHER Superseded
Location: 23 Prev | Next Part: 175410 *Qty: 1 STUD $8.26
Location: 24 Prev | Next Part: 14432224 *Qty: 2 SCREW Superseded
Location: 25 Prev | Next Part: 11197774 *Qty: 2 WASHER Superseded
Location: 26 Prev | Next Part: 196683 *Qty: 1 GUIDE SHOE ASSEMBLY $47.09
Location: 27 Prev | Next Part: 198035 *Qty: 2 TIMING CONTROL CHAIN $1,067.88
Location: 28 Prev | Next Part: 199770 *Qty: 2 UPPER FIXED TENSION Call
Location: 29 Prev | Next Part: 14305934 *Qty: 8 SCREW $0.90
Location: 30 Prev | Next Part: 11197774 *Qty: 8 WASHER Superseded
Location: 31 Prev | Next Part: 194262 *Qty: 1 SHOULDER $39.87
Location: 32 Prev | Next Part: 185725 *Qty: 1 CHAIN TIGHTENER GUIDE SHOE $55.59
Location: 33 Prev | Next Part: 187742 *Qty: 3 ROLLER CAGE $12.95
Location: 34 Prev | Next Part: 199101 *Qty: 1 TRANSMISSION SUPPORT $534.04
Location: 35 Prev | Next Part: 181336 *Qty: 3 SCREW $2.19
Location: 36 Prev | Next Part: 148225 *Qty: 1 O.R. GASKET $0.90
Location: 37 Prev | Next Part: 197880 *Qty: 2 HYDRAULIC TIGHTENER $153.88
Location: 38 Prev | Next Part: 190060 *Qty: 1 BUSH FOR TIGHTENER $43.17
Location: 39 Prev | Next Part: 185854 *Qty: 1 GASKET $3.76
Location: 40 Prev | Next Part: 14432224 *Qty: 4 SCREW Superseded
Location: 41 Prev | Next Part: 11197774 *Qty: 4 WASHER Superseded
Location: 42 Prev | Next Part: 190171 *Qty: 1 SPACER $8.02
Location: 43 Prev | Next Part: 192069 *Qty: 1 O.R. GASKET $0.90
Location: 44 Prev | Next Part: 186181 *Qty: 1 FIXED TENSION $25.14
Location: 45 Prev | Next Part: 13543824 *Qty: 1 STUD Superseded
Location: 46 Prev | Next Part: 13543124 *Qty: 1 STUD $0.99
Location: 47 Prev | Next Part: 187818 *Qty: 1 JET $98.52
Location: 48 Prev | Next Part: 14305224 *Qty: 1 SCREW $0.90
Location: 49 Prev | Next Part: 11197774 *Qty: 1 WASHER Superseded
Location: 50 Prev | Next Part: 14306224 *Qty: 3 SCREW $0.90
Location: 51 Prev | Next Part: 11193874 *Qty: 3 WASHER $0.90
Location: 52 Prev | Next Part: 16043124 *Qty: 1 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
