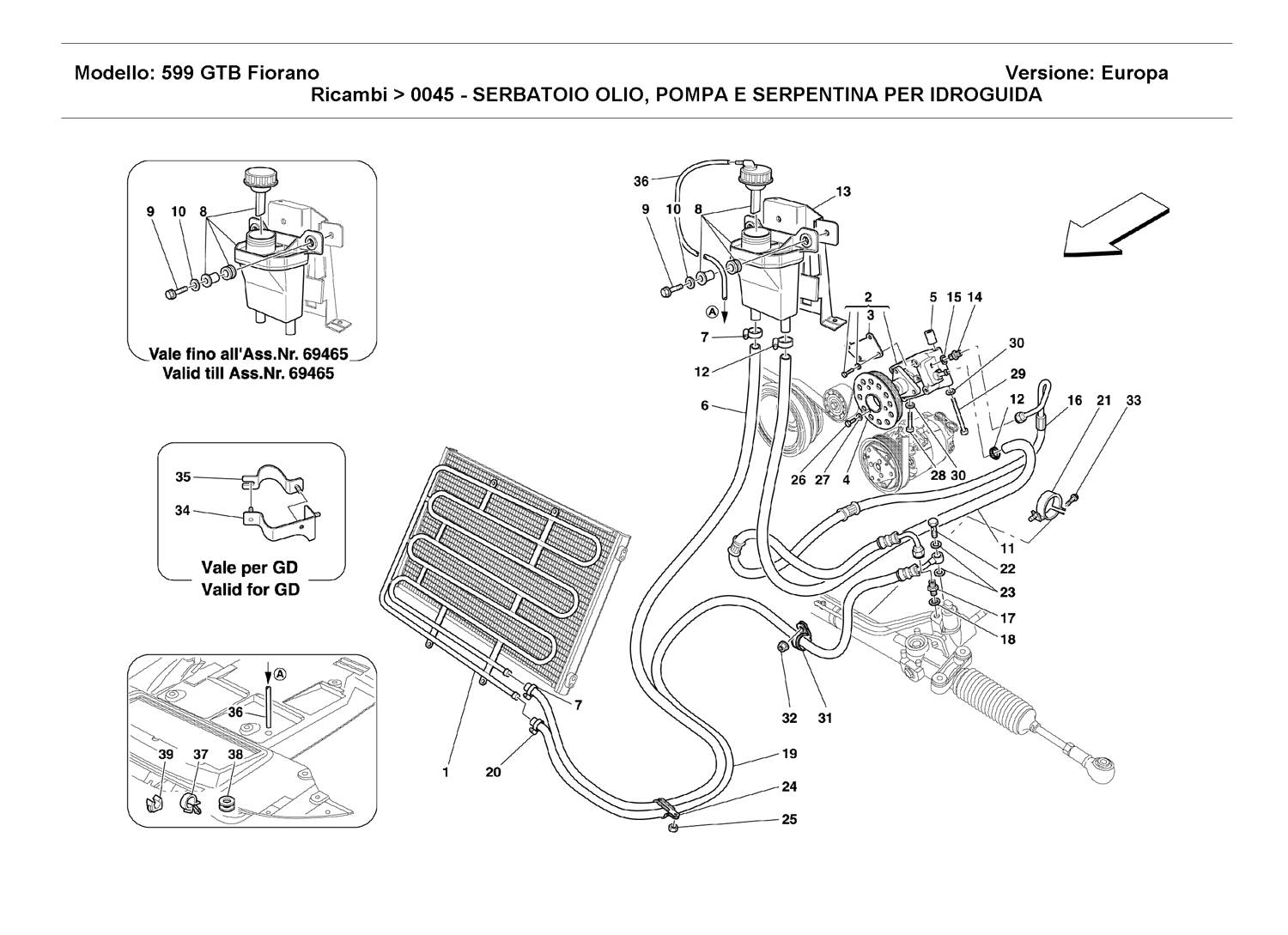

OIL TANK, PUMP AND SERPENTINE FOR SERVOSTEERING

Go to Split View

OIL TANK, PUMP AND SERPENTINE FOR SERVOSTEERING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 210354 *Qty: 1 REFRIGERATING COIL $600.22
Location: 2 Prev | Next Part: 198036 *Qty: 1 HYDRAULIC SERVO-CONTROL PUMP $996.32
Location: 3 Prev | Next Part: 182833 *Qty: 1 BRACKET FOR PUMP SUPPORT $178.11
Location: 4 Prev | Next Part: 195936 *Qty: 1 POWER STEERING PULLEY $122.99
Location: 5 Prev | Next Part: 226087 *Qty: 1 SPACER
-Die cast-
$40.09
Location: 5 Prev | Next Part: 226087 *Qty: 1 SPACER
-As an alternative-
$40.09
Location: 6 Prev | Next Part: 169890 *Qty: 1 PIPE FROM COIL TO OIL TANK $62.28
Location: 7 Prev | Next Part: 161490 *Qty: 2 SCREW COLLAR $2.47
Location: 8 Prev | Next Part: 227882 *Qty: 1 OIL TANK FOR SERVOSTEERING
-Valid till Ass. Nr. 69465-
$297.57
Location: 8 Prev | Next Part: 233605 *Qty: 1 OIL TANK FOR SERVOSTEERING
-Valid from Ass. Nr. 69466-
$84.21
Location: 9 Prev | Next Part: 16287224 *Qty: 2 SCREW Superseded
Location: 10 Prev | Next Part: 12604474 *Qty: 2 WASHER $0.90
Location: 11 Prev | Next Part: 202824 *Qty: 1 PIPE FROM OIL TANK TO HYDRAULIC PUMP $26.25
Location: 12 Prev | Next Part: 13000390 *Qty: 2 SCREW COLLAR $0.97
Location: 13 Prev | Next Part: 226446 *Qty: 1 TANK SUPPORT $132.22
Location: 14 Prev | Next Part: 174091 *Qty: 1 UNION $8.54
Location: 15 Prev | Next Part: 10261460 *Qty: 1 GASKET $0.90
Location: 16 Prev | Next Part: 202821 *Qty: 1 PIPE FROM HYDRAULIC PUMP TO STEERING BOX
-Not for RHD-
$191.38
Location: 16 Prev | Next Part: 222119 *Qty: 1 PIPE FROM HYDRAULIC PUMP TO STEERING BOX
-Valid for RHD-
Call
Location: 17 Prev | Next Part: 205048 *Qty: 1 THREADED UNION $94.66
Location: 18 Prev | Next Part: 10261360 *Qty: 1 GASKET $0.90
Location: 19 Prev | Next Part: 214729 *Qty: 1 PIPE FROM STEERING BOX TO COIL
-Not for RHD-
$134.06
Location: 19 Prev | Next Part: 222118 *Qty: 1 PIPE FROM STEERING BOX TO COIL
-Valid for RHD-
Call
Location: 20 Prev | Next Part: 161490 *Qty: 1 SCREW COLLAR $2.47
Location: 21 Prev | Next Part: 203091 *Qty: 1 PIPE FIXING BRACKET
-Not for RHD-
$35.65
Location: 22 Prev | Next Part: 10185111 *Qty: 1 UNION $5.52
Location: 23 Prev | Next Part: 10280060 *Qty: 2 GASKET $0.90
Location: 24 Prev | Next Part: 139512 *Qty: 1 BRACKET WITH SHEATH $2.92
Location: 25 Prev | Next Part: 14058419 *Qty: 1 NUT $1.08
Location: 26 Prev | Next Part: 14306224 *Qty: 3 SCREW $0.90
Location: 27 Prev | Next Part: 12604474 *Qty: 3 WASHER $0.90
Location: 28 Prev | Next Part: 14302224 *Qty: 1 SCREW $0.90
Location: 29 Prev | Next Part: 143873 *Qty: 1 SCREW $18.93
Location: 30 Prev | Next Part: 11193874 *Qty: 2 WASHER $0.90
Location: 31 Prev | Next Part: 10441790 *Qty: 1 BRACKET WITH SHEATH $0.94
Location: 32 Prev | Next Part: 14058419 *Qty: 1 NUT $1.08
Location: 33 Prev | Next Part: 16296924 *Qty: 1 SCREW-Not for RHD- $0.90
Location: 34 Prev | Next Part: 226210 *Qty: 1 SUPPORT-Valid for RHD- Call
Location: 35 Prev | Next Part: 226209 *Qty: 1 SEAL
-Valid for RHD-
Call
Location: 36 Prev | Next Part: 122760 *Qty: 1 OIL VENT PIPE
-Valid from Ass. Nr. 69466-
-Not as spare part-
-Replaced by 239478-
$9.24
Location: 36 Prev | Next Part: 239478 *Qty: 1 OIL VENT PIPE $134.79
Location: 37 Prev | Next Part: 14569880 *Qty: 2 CLIP
-Valid from Ass. Nr. 69466-
-Not as spare part-
-Replaced by 140727-
$0.90
Location: 37 Prev | Next Part: 140727 *Qty: 2 CLIP $0.90
Location: 38 Prev | Next Part: 10397380 *Qty: 1 CABLE GROMMET
-Valid from Ass. Nr. 69466-
$1.91
Location: 39 Prev | Next Part: 141546 *Qty: 2 CLIP-Valid from Ass. Nr.69466- $0.90

* Quantity shown indicates the number of pieces used in the diagram.
