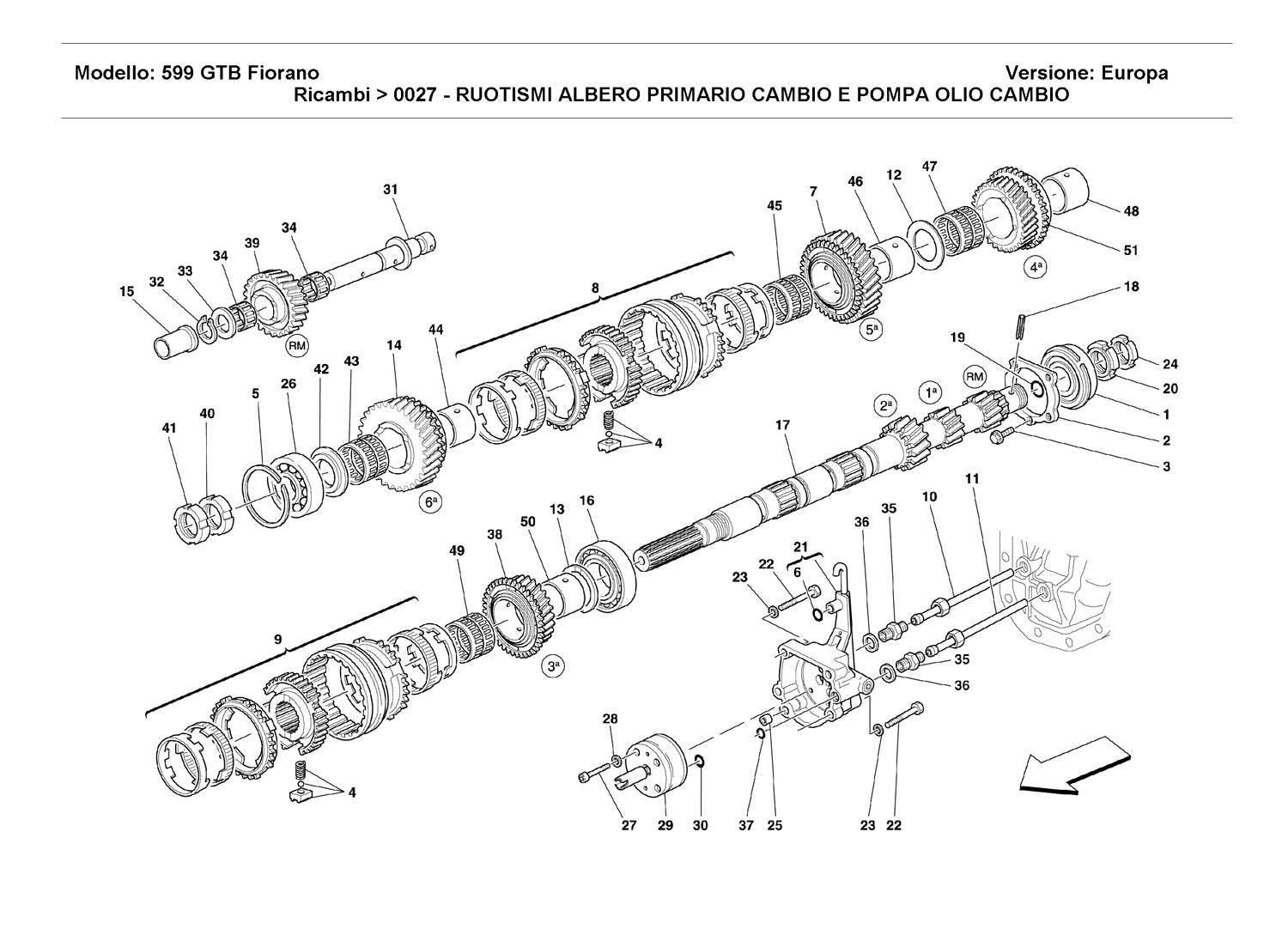

MAIN SHAFT GEARS AND CLUTCH OIL PUMP

Go to Split View

MAIN SHAFT GEARS AND CLUTCH OIL PUMP

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 184019 *Qty: 1 BEARING FOR MAIN SHAFT PUMP OIL SIDE $100.04
Location: 2 Prev | Next Part: 144444 *Qty: 1 SUPPORT RING $73.99
Location: 3 Prev | Next Part: 16287124 *Qty: 1 SCREW $1.44
Location: 4 Prev | Next Part: 194029 *Qty: 2 PAD FOR SYNCHRONIZER/BALL/SPRING REPLACEMENT KIT $15.60
Location: 5 Prev | Next Part: 144511 *Qty: 1 STOP RING $1.24
Location: 6 Prev | Next Part: 14452981 *Qty: 1 O.R. GASKET $1.76
Location: 7 Prev | Next Part: 197563 *Qty: 1 PINION FOR 5th GEAR $1,227.78
Location: 8 Prev | Next Part: 189689 *Qty: 1 5th AND 6th GEAR COMPLETE SYNCHRONIZER $854.90
Location: 9 Prev | Next Part: 189657 *Qty: 1 3rd AND 4th GEAR COMPLETE SYNCHRONIZER $806.51
Location: 10 Prev | Next Part: 179660 *Qty: 1 OIL RETURN PIPE $119.62
Location: 11 Prev | Next Part: 204984 *Qty: 1 OIL DELIVERY PIPE $50.27
Location: 12 Prev | Next Part: 195810 *Qty: 1 RING $29.31
Location: 13 Prev | Next Part: 189700 *Qty: 1 RING $45.60
Location: 14 Prev | Next Part: 189693 *Qty: 1 PINION FOR 6th GEAR $857.75
Location: 15 Prev | Next Part: 211961 *Qty: 1 SPACER BUSHING $25.99
Location: 16 Prev | Next Part: 228055 *Qty: 1 ROLLER BEARING $183.47
Location: 17 Prev | Next Part: 210495 *Qty: 1 MAIN SHAFT FOR GEAR LEVER $4,344.35
Location: 18 Prev | Next Part: 14601270 *Qty: 1 FLEXIBLE PIN $0.90
Location: 19 Prev | Next Part: 109724 *Qty: 1 O.R. GASKET $1.58
Location: 20 Prev | Next Part: 163670 *Qty: 1 RING NUT $73.92
Location: 20 Prev | Next Part: 196155 *Qty: 1 COMPLETE OIL PUMP BODY $581.09
Location: 21 Prev | Next Part: 195013 *Qty: 1 OIL PUMP BODY
-With complete oil pump body-
Call
Location: 22 Prev | Next Part: 16044321 *Qty: 4 SCREW $0.90
Location: 23 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 163684 *Qty: 1 RING NUT $24.17
Location: 25 Prev | Next Part: 102704 *Qty: 1 CENTERING DOWEL $2.18
Location: 26 Prev | Next Part: 228054 *Qty: 1 ROLLER BEARING $224.82
Location: 27 Prev | Next Part: 14303521 *Qty: 4 SCREW $0.90
Location: 28 Prev | Next Part: 10571379 *Qty: 4 WASHER $0.90
Location: 29 Prev | Next Part: 185458 *Qty: 1 COMPLETE BEARBOX OIL PUMP $447.98
Location: 30 Prev | Next Part: 137192 *Qty: 1 O.R. GASKET $0.90
Location: 31 Prev | Next Part: 211960 *Qty: 1 PIN $114.59
Location: 32 Prev | Next Part: 211962 *Qty: 1 FLEXIBLE RING $3.51
Location: 33 Prev | Next Part: 193891 *Qty: 1 SPACER WASHER
-Th. mm. 4,0-
$34.92
Location: 34 Prev | Next Part: 104256 *Qty: 2 ROLLER CAGE $10.19
Location: 35 Prev | Next Part: 150577 *Qty: 2 UNION $24.49
Location: 36 Prev | Next Part: 10257060 *Qty: 2 GASKET $0.90
Location: 37 Prev | Next Part: 137192 *Qty: 1 GASKET $0.90
Location: 38 Prev | Next Part: 189659 *Qty: 1 PINION FOR 3rd GEAR $857.75
Location: 39 Prev | Next Part: 210496 *Qty: 1 IDLE GEAR FOR REVERSE $171.49
Location: 40 Prev | Next Part: 189707 *Qty: 1 RING NUT $64.83
Location: 41 Prev | Next Part: 189708 *Qty: 1 RING NUT $97.30
Location: 42 Prev | Next Part: 189704 *Qty: 1 SPACER
-Th. mm 3,9-
$32.58
Location: 42 Prev | Next Part: 189709 *Qty: 1 SPACER-Th. mm 4,15- $38.42
Location: 43 Prev | Next Part: 109002 *Qty: 1 ROLLER CAGE $35.95
Location: 44 Prev | Next Part: 189705 *Qty: 1 BUSHING $76.81
Location: 45 Prev | Next Part: 109002 *Qty: 1 ROLLER CAGE $35.95
Location: 46 Prev | Next Part: 195809 *Qty: 1 BUSHING $137.57
Location: 47 Prev | Next Part: 109002 *Qty: 1 ROLLER CAGE $35.95
Location: 48 Prev | Next Part: 195809 *Qty: 1 BUSHING $137.57
Location: 49 Prev | Next Part: 109002 *Qty: 1 ROLLER CAGE $35.95
Location: 50 Prev | Next Part: 189656 *Qty: 1 BUSHING $65.15
Location: 51 Prev | Next Part: 197562 *Qty: 1 PINION FOR 4th GEAR $1,056.49

* Quantity shown indicates the number of pieces used in the diagram.
