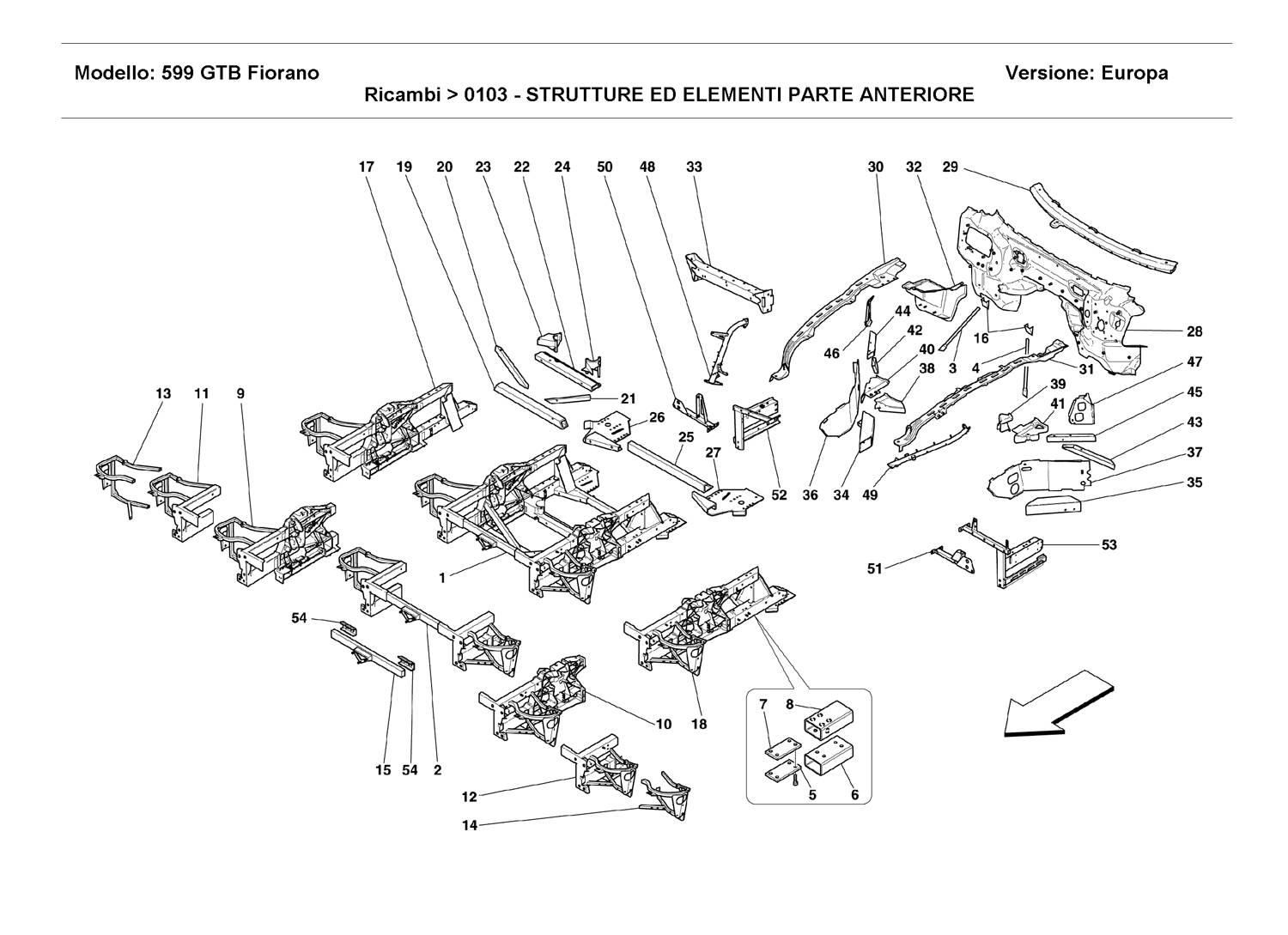

FRONT STRUCTURES AND COMPONENTS

Go to Split View

FRONT STRUCTURES AND COMPONENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 985223084 *Qty: 1 COMPLETE FRONT MODOLE
-Not for RHD-
Call
Location: 1 Prev | Next Part: 985223095 *Qty: 1 COMPLETE FRONT MODOLE
-Valid for RHD-
Call
Location: 2 Prev | Next Part: 985223085 *Qty: 1 COMPLETE FRONT FRAME Call
Location: 3 Prev | Next Part: 985215518 *Qty: 1 R.H. SUPPORT FOR MOTOR COMPARTMENT Call
Location: 4 Prev | Next Part: 985215517 *Qty: 1 L.H. SUPPORT FOR MOTOR COMPARTMENT Call
Location: 5 Prev | Next Part: 985208231 *Qty: 2 LOWER PLATE Call
Location: 6 Prev | Next Part: 985208233 *Qty: 2 LOWER PIN Call
Location: 7 Prev | Next Part: 985208230 *Qty: 2 UPPER PLATE Call
Location: 8 Prev | Next Part: 985208232 *Qty: 2 UPPER PIN Call
Location: 9 Prev | Next Part: 985223086 *Qty: 1 R.H. LATERAL FRONT SPRAG Call
Location: 10 Prev | Next Part: 985223087 *Qty: 1 L.H. LATERAL FRONT SPRAG Call
Location: 11 Prev | Next Part: 985223088 *Qty: 1 R.H. LATERAL FRONT SEMI-SPRAG Call
Location: 12 Prev | Next Part: 985223089 *Qty: 1 L.H. LATERAL FRONT SEMI-SPRAG Call
Location: 13 Prev | Next Part: 68550511 *Qty: 1 R.H. FRONT FRAME SHIELD Call
Location: 14 Prev | Next Part: 68550611 *Qty: 1 L.H. FRONT FRAME SHIELD Call
Location: 15 Prev | Next Part: 985223090 *Qty: 1 UPPER CROSS MEMBER $579.58
Location: 16 Prev | Next Part: 985215495 *Qty: 2 FLANGE Call
Location: 17 Prev | Next Part: 985223091 *Qty: 1 COMPLETE R.H. FRONT SIDEWALL Call
Location: 18 Prev | Next Part: 985223092 *Qty: 1 COMPLETE L.H. FRONT SIDEWALL Call
Location: 19 Prev | Next Part: 985221197 *Qty: 1 LOWER FRONT SUSPENSIONS CROSS MEMBER Call
Location: 20 Prev | Next Part: 985221115 *Qty: 1 R.H. FRONT REINFORCEMENT Call
Location: 21 Prev | Next Part: 985221114 *Qty: 1 L.H. FRONT REINFORCEMENT Call
Location: 22 Prev | Next Part: 985201840 *Qty: 1 MOTOR CROSS MEMBER Call
Location: 23 Prev | Next Part: 985195245 *Qty: 1 R.H. SUPPORT ENGINE Call
Location: 24 Prev | Next Part: 985195244 *Qty: 1 L.H. SUPPORT ENGINE Call
Location: 25 Prev | Next Part: 985221298 *Qty: 1 TORQUE BOX CONNECTION Call
Location: 26 Prev | Next Part: 985187340 *Qty: 1 R.H. REINFORCEMENT Call
Location: 27 Prev | Next Part: 985187339 *Qty: 1 L.H. REINFORCEMENT Call
Location: 28 Prev | Next Part: 985223093 *Qty: 1 COMPLETE FRONT SHIELD
-Not for RHD-
Call
Location: 28 Prev | Next Part: 985223813 *Qty: 1 COMPLETE FRONT SHIELD
-Valid for RHD-
Call
Location: 29 Prev | Next Part: 985213731 *Qty: 1 COMPLETE UNDER WINDSCREEN CROSS MEMBER
-Not for RHD-
Call
Location: 29 Prev | Next Part: 985213736 *Qty: 1 COMPLETE UNDER WINDSCREEN CROSS MEMBER
-Valid for RHD-
Call
Location: 30 Prev | Next Part: 68551111 *Qty: 1 R.H. UPPER FRAME Call
Location: 31 Prev | Next Part: 68551011 *Qty: 1 L.H. UPPER FRAME Call
Location: 32 Prev | Next Part: 68055000 *Qty: 1 AIR INTAKE PAN
-Not for RHD-
$738.90
Location: 32 Prev | Next Part: 69364700 *Qty: 1 AIR INTAKE PAN
-Valid for RHD-
Call
Location: 33 Prev | Next Part: 985208698 *Qty: 1 SUSPENSIONS CROSS MEMBER Call
Location: 34 Prev | Next Part: 985221707 *Qty: 1 R.H. OUTER FRONT TORQUE BOX Call
Location: 35 Prev | Next Part: 985214760 *Qty: 1 L.H. OUTER FRONT TORQUE BOX Call
Location: 36 Prev | Next Part: 985213803 *Qty: 1 R.H. SEAL Call
Location: 37 Prev | Next Part: 985221605 *Qty: 1 L.H. SEAL Call
Location: 38 Prev | Next Part: 985221720 *Qty: 1 R.H. SPRAG CONNECTION Call
Location: 39 Prev | Next Part: 985219747 *Qty: 1 L.H. SPRAG CONNECTION Call
Location: 40 Prev | Next Part: 985221722 *Qty: 1 R.H. OUTER REINFORCEMENT Call
Location: 41 Prev | Next Part: 985192806 *Qty: 1 L.H. OUTER REINFORCEMENT Call
Location: 42 Prev | Next Part: 985188100 *Qty: 1 R.H. CONNECTION Call
Location: 43 Prev | Next Part: 985188099 *Qty: 1 L.H. CONNECTION Call
Location: 44 Prev | Next Part: 985221653 *Qty: 1 R.H. UPPER FRONT DIAGONAL Call
Location: 45 Prev | Next Part: 985221652 *Qty: 1 L.H. UPPER FRONT DIAGONAL Call
Location: 46 Prev | Next Part: 985221257 *Qty: 1 R.H. SIDE PANEL Call
Location: 47 Prev | Next Part: 985221256 *Qty: 1 L.H. SIDE PANEL Call
Location: 48 Prev | Next Part: 985217540 *Qty: 1 R.H. DIAGONAL
-Not for RHD-
Call
Location: 48 Prev | Next Part: 985225143 *Qty: 1 R.H. DIAGONAL
-Valid for RHD-
Call
Location: 49 Prev | Next Part: 985214745 *Qty: 1 L.H. DIAGONAL Call
Location: 50 Prev | Next Part: 68574811 *Qty: 1 R.H. LOWER TRANSVERSE PIPE Call
Location: 51 Prev | Next Part: 67103611 *Qty: 1 L.H. LOWER TRANSVERSE PIPE $360.51
Location: 52 Prev | Next Part: 985223097 *Qty: 1 COMPLETE R.H. FRAME Call
Location: 53 Prev | Next Part: 985223098 *Qty: 1 COMPLETE L.H. FRAME Call
Location: 54 Prev | Next Part: 985221736 *Qty: 2 REINFORCEMENT Call

* Quantity shown indicates the number of pieces used in the diagram.
