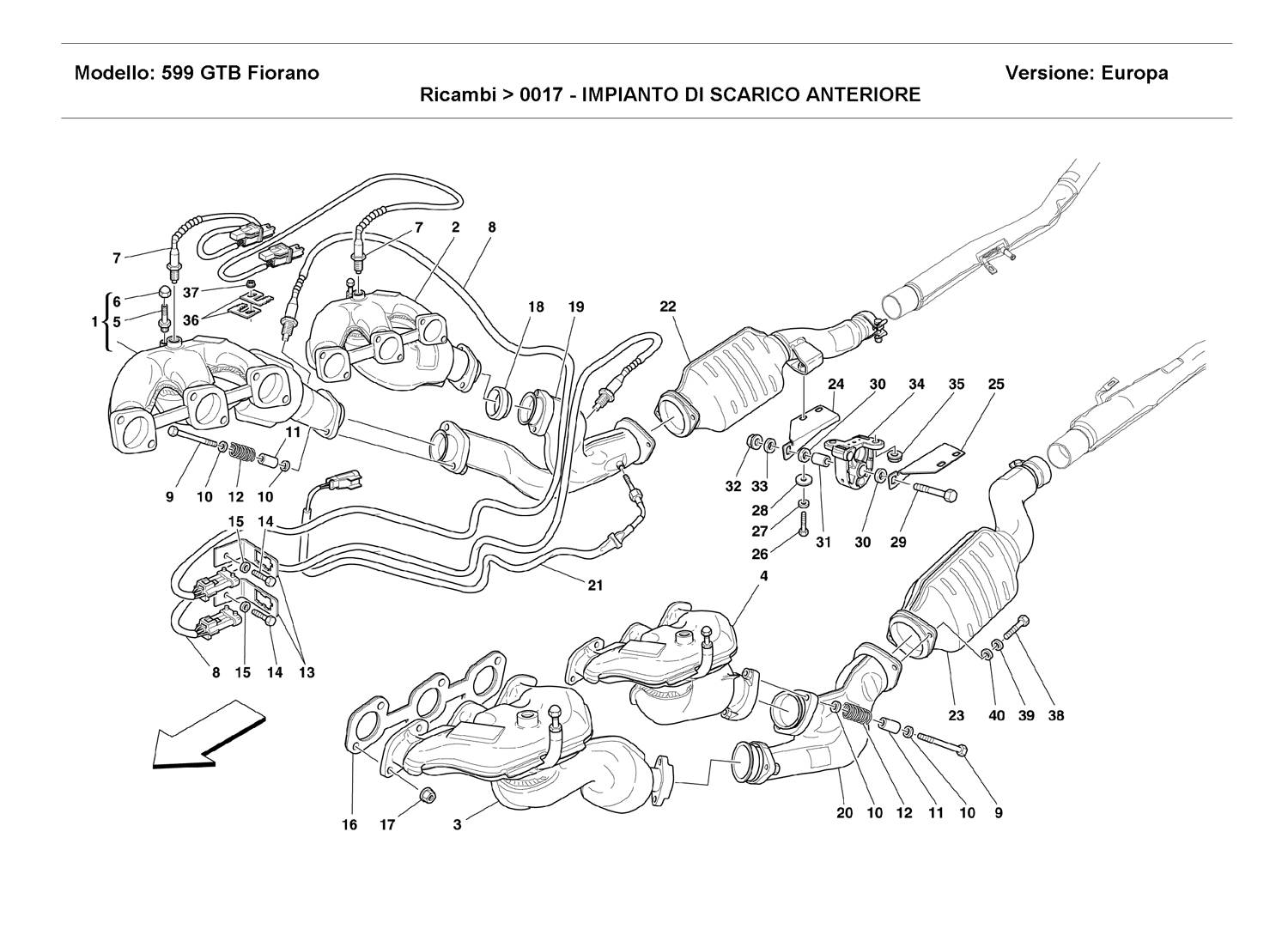

FRONT EXHAUST SYSTEM

Go to Split View

FRONT EXHAUST SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 222281 *Qty: 1 R.H. FRONT EXHAUST MANIFOLD $4,602.28
Location: 2 Prev | Next Part: 222282 *Qty: 1 R.H. REAR EXHAUST MANIFOLD $4,492.26
Location: 3 Prev | Next Part: 222283 *Qty: 1 L.H. FRONT EXHAUST MANIFOLD $4,602.28
Location: 4 Prev | Next Part: 222284 *Qty: 1 L.H. REAR EXHAUST MANIFOLD $4,492.26
Location: 5 Prev | Next Part: 152630 *Qty: 4 THREADED UNION $67.44
Location: 6 Prev | Next Part: 150595 *Qty: 4 CAP NUT $1.20
Location: 7 Prev | Next Part: 182837 *Qty: 2 FRONT LAMBDA FEELER
-L= 500 mm-
-For front engine cylinderes 1
-2-3/10-11
-12-
$240.00
Location: 7 Prev | Next Part: 187587 *Qty: 2 FRONT LAMBDA FEELER
-For rear engine cylinderes 4-5-6/7-8-9-
$281.99
Location: 8 Prev | Next Part: 180915 *Qty: 2 REAR LAMBDA FEELER
-L= 1200 mm-
-For front engine cylinderes 1-2-3/10-11-12-
$175.00
Location: 8 Prev | Next Part: 187586 *Qty: 2 REAR LAMBDA FEELER
-For rear engine cylinderes 4-5-6/7-8-9-
$264.74
Location: 9 Prev | Next Part: 16044834 *Qty: 8 SCREW $0.90
Location: 10 Prev | Next Part: 112761 *Qty: 16 WASHER Superseded
Location: 11 Prev | Next Part: 114749 *Qty: 8 SPACER $1.29
Location: 12 Prev | Next Part: 111743 *Qty: 8 SPRING $10.00
Location: 13 Prev | Next Part: 178366 *Qty: 4 BRACKET $2.36
Location: 14 Prev | Next Part: 14305724 *Qty: 4 SCREW $0.90
Location: 15 Prev | Next Part: 14499324 *Qty: 4 WASHER Superseded
Location: 16 Prev | Next Part: 212702 *Qty: 4 GASKET $14.57
Location: 17 Prev | Next Part: 210971 *Qty: 24 NUT $2.28
Location: 18 Prev | Next Part: 154981 *Qty: 4 GASKET $13.53
Location: 19 Prev | Next Part: 213131 *Qty: 1 R.H. STUB PIPE $1,841.52
Location: 20 Prev | Next Part: 213130 *Qty: 1 L.H. STUB PIPE $1,841.52
Location: 21 Prev | Next Part: 200934 *Qty: 2 TEMPERATURE SENSOR $250.31
Location: 22 Prev | Next Part: 220686 *Qty: 1 R.H. CATALYST $5,916.71
Location: 23 Prev | Next Part: 220687 *Qty: 1 L.H. CATALYST $5,916.71
Location: 24 Prev | Next Part: 214716 *Qty: 1 R.H. BRACKET $13.56
Location: 25 Prev | Next Part: 214717 *Qty: 1 L.H. BRACKET $13.56
Location: 26 Prev | Next Part: 16043224 *Qty: 4 SCREW $0.90
Location: 27 Prev | Next Part: 12638578 *Qty: 4 WASHER $0.90
Location: 28 Prev | Next Part: 12646724 *Qty: 4 WASHER $0.90
Location: 29 Prev | Next Part: 16044324 *Qty: 1 SCREW $0.90
Location: 30 Prev | Next Part: 12642024 *Qty: 2 WASHER $0.90
Location: 31 Prev | Next Part: 190622 *Qty: 1 SPACER $4.45
Location: 32 Prev | Next Part: 114748 *Qty: 1 NUT $0.90
Location: 33 Prev | Next Part: 14496524 *Qty: 1 WASHER $0.90
Location: 34 Prev | Next Part: 199731 *Qty: 1 ANTI-VIBRATION SUPPORT $93.87
Location: 35 Prev | Next Part: 175283 *Qty: 2 NUT $0.90
Location: 36 Prev | Next Part: 175856 *Qty: 2 CONNECTOR FIXING BRACKET $2.44
Location: 37 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 38 Prev | Next Part: 16136124 *Qty: 4 SCREW $1.88
Location: 39 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 40 Prev | Next Part: 12646778 *Qty: 4 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
