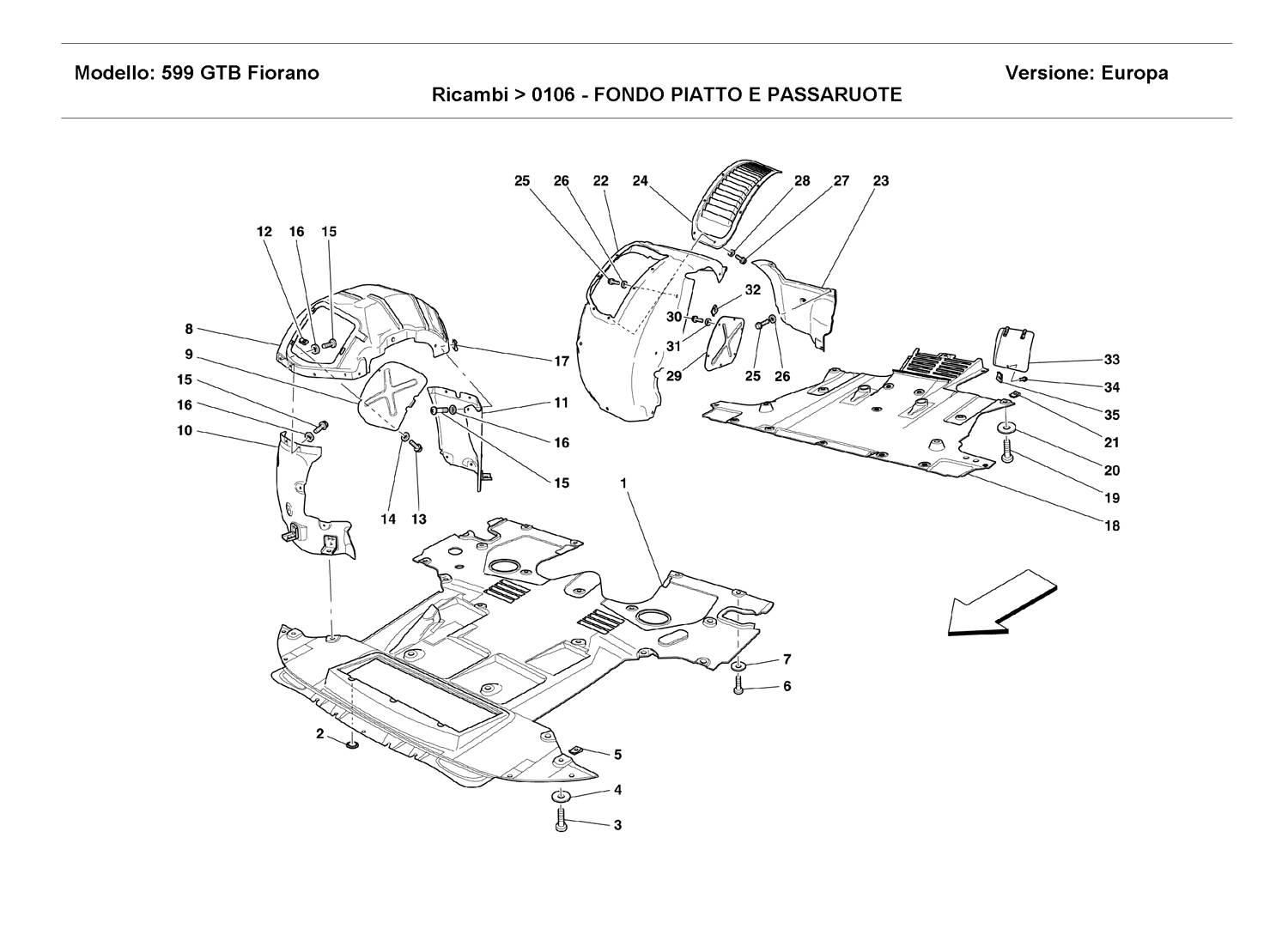

FLAT FLOOR PAN AND WHEELHOUSES

Go to Split View

FLAT FLOOR PAN AND WHEELHOUSES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 68563900 *Qty: 1 FRONT AEREODYNAMIC BOTTOM
-Not for RHD-
$2,395.63
Location: 1 Prev | Next Part: 69864900 *Qty: 1 FRONT AEREODYNAMIC BOTTOM
-Valid for RHD-
Call
Location: 2 Prev | Next Part: 14507987 *Qty: 3 PLUG $6.50
Location: 3 Prev | Next Part: 15687375 *Qty: 8 SCREW $0.90
Location: 4 Prev | Next Part: 12640677 *Qty: 8 WASHER
-Not as spare part-
-Replaced by 12640678-
Call
Location: 4 Prev | Next Part: 12640678 *Qty: 8 WASHER $2.35
Location: 5 Prev | Next Part: 66252300 *Qty: 4 CLIP FOR SCREW $2.49
Location: 6 Prev | Next Part: 64830600 *Qty: 21 SCREW $2.23
Location: 7 Prev | Next Part: 12641378 *Qty: 21 WASHER $0.90
Location: 8 Prev | Next Part: 68575600 *Qty: 1 R.H. FRONT WHEELHOUSE $305.76
Location: 8 Prev | Next Part: 68575700 *Qty: 1 L.H. FRONT WHEELHOUSE $305.76
Location: 9 Prev | Next Part: 68576200 *Qty: 1 R.H. WHEELHOUSE DOOR $35.65
Location: 9 Prev | Next Part: 68576300 *Qty: 1 L.H. WHEELHOUSE DOOR $35.65
Location: 10 Prev | Next Part: 68575800 *Qty: 1 FRONT GRAVEL GUARD FOR R.H. FRONT WHEELHOUSE
-Not for AUS-
$161.41
Location: 10 Prev | Next Part: 80200900 *Qty: 1 FRONT GRAVEL GUARD FOR R.H. FRONT WHEELHOUSE
-Valid for AUS-
Call
Location: 10 Prev | Next Part: 68575900 *Qty: 1 FRONT GRAVEL GUARD FOR L.H. FRONT WHEELHOUSE
-Not for AUS-
$202.67
Location: 10 Prev | Next Part: 80201000 *Qty: 1 FRONT GRAVEL GUARD FOR L.H. FRONT WHEELHOUSE
-Valid for AUS-
Call
Location: 11 Prev | Next Part: 68576000 *Qty: 1 REAR GRAVEL GUARD FOR R.H. FRONT WHEELHOUSE $170.94
Location: 11 Prev | Next Part: 68576100 *Qty: 1 REAR GRAVEL GUARD FOR L.H. FRONT WHEELHOUSE $170.94
Location: 12 Prev | Next Part: 68119800 *Qty: 4 PLATE FOR SCREW $1.92
Location: 13 Prev | Next Part: 13274214 *Qty: 4 SCREW $0.90
Location: 14 Prev | Next Part: 12638124 *Qty: 4 WASHER $0.90
Location: 15 Prev | Next Part: 14778914 *Qty: 32 SCREW $0.90
Location: 16 Prev | Next Part: 12643724 *Qty: 32 WASHER $0.90
Location: 17 Prev | Next Part: 62766300 *Qty: 6 CLIP FOR SCREW $0.94
Location: 18 Prev | Next Part: 68564000 *Qty: 1 REAR AEREODYNAMIC BOTTOM $1,676.34
Location: 19 Prev | Next Part: 64830600 *Qty: 19 SCREW $2.23
Location: 19 Prev | Next Part: 66207700 *Qty: 2 SCREW $3.25
Location: 20 Prev | Next Part: 12641378 *Qty: 16 WASHER $0.90
Location: 20 Prev | Next Part: 12647601 *Qty: 2 WASHER-D.6.45-16X 2- $0.90
Location: 20 Prev | Next Part: 12642078 *Qty: 2 WASHER-D.8.45-25X1.5- $1.25
Location: 20 Prev | Next Part: 10523107 *Qty: 1 WASHER $3.48
Location: 21 Prev | Next Part: 14189071 *Qty: 2 BRACKET $0.94
Location: 22 Prev | Next Part: 67134400 *Qty: 1 R.H. COMPARTMENT FRAME SHIELD $249.47
Location: 22 Prev | Next Part: 67134500 *Qty: 1 L.H. COMPARTMENT FRAME SHIELD $249.49
Location: 23 Prev | Next Part: 68575400 *Qty: 1 R.H. REAR PANEL FOR REAR WHEELHOUSE $163.63
Location: 23 Prev | Next Part: 68575500 *Qty: 1 L.H. REAR PANEL FOR REAR WHEELHOUSE $163.63
Location: 24 Prev | Next Part: 67134200 *Qty: 1 R.H. DOOR $88.77
Location: 25 Prev | Next Part: 13274277 *Qty: 22 SCREW $0.90
Location: 26 Prev | Next Part: 12624178 *Qty: 22 WASHER $0.90
Location: 27 Prev | Next Part: 13274214 *Qty: 2 SCREW $0.90
Location: 28 Prev | Next Part: 12638124 *Qty: 2 WASHER $0.90
Location: 29 Prev | Next Part: 67106200 *Qty: 1 R.H. PLUG $106.22
Location: 30 Prev | Next Part: 65366700 *Qty: 5 SCREW $1.26
Location: 31 Prev | Next Part: 12638178 *Qty: 5 WASHER $0.90
Location: 32 Prev | Next Part: 62764200 *Qty: 5 CLIP FOR SCREW $0.90
Location: 33 Prev | Next Part: 68771400 *Qty: 1 L.H. PLUG $41.91
Location: 34 Prev | Next Part: 169813 *Qty: 1 SCREW $1.20
Location: 35 Prev | Next Part: 62764200 *Qty: 1 CLIP FOR SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
