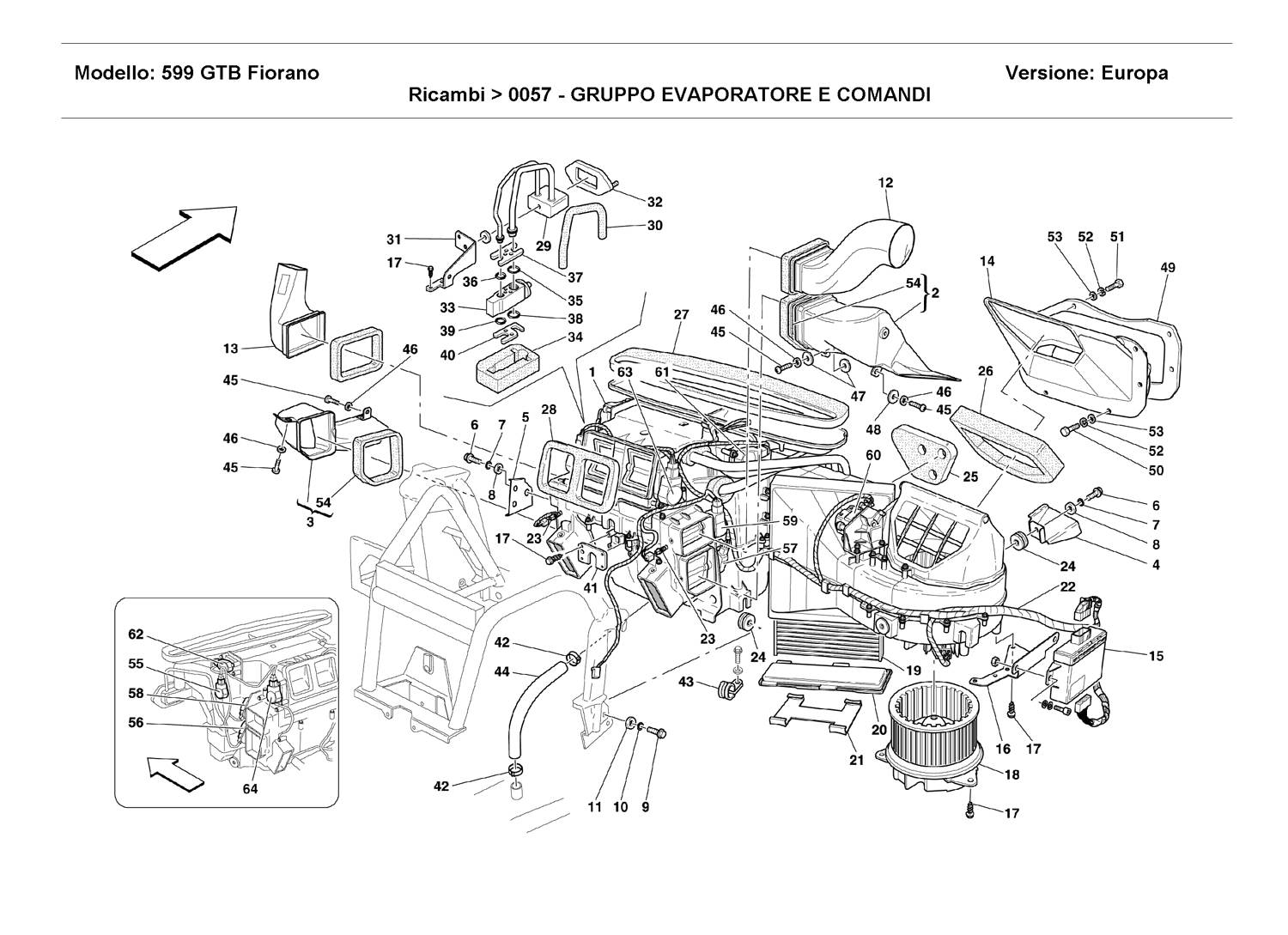

EVAPORATOR UNIT AND CONTROLS

Go to Split View

EVAPORATOR UNIT AND CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 69376300 *Qty: 1 COMPLETE EVAPORATOR SET
-Not for RHD-
$5,464.00
Location: 1 Prev | Next Part: 69131300 *Qty: 1 COMPLETE EVAPORATOR SET
-Valid for RHD-
Call
Location: 2 Prev | Next Part: 67002100 *Qty: 1 R.H. AIR DUCTING
-Not for RHD-
$53.91
Location: 2 Prev | Next Part: 67924300 *Qty: 1 R.H. AIR DUCTING
-Valid for RHD-
Call
Location: 3 Prev | Next Part: 67002200 *Qty: 1 L.H. AIR DUCTING
-Not for RHD-
$53.91
Location: 3 Prev | Next Part: 67924400 *Qty: 1 L.H. AIR DUCTING
-Valid for RHD-
Call
Location: 4 Prev | Next Part: 67439100 *Qty: 1 R.H. BRACKET-Not for RHD- Call
Location: 4 Prev | Next Part: 67452700 *Qty: 1 L.H. BRACKET
-Valid for RHD-
Call
Location: 5 Prev | Next Part: 67439200 *Qty: 1 L.H. BRACKET $47.87
Location: 6 Prev | Next Part: 16286024 *Qty: 4 SCREW $0.90
Location: 7 Prev | Next Part: 12601274 *Qty: 4 WASHER $0.90
Location: 8 Prev | Next Part: 12643724 *Qty: 4 WASHER $0.90
Location: 9 Prev | Next Part: 16286024 *Qty: 3 SCREW $0.90
Location: 10 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 11 Prev | Next Part: 12643724 *Qty: 3 WASHER $0.90
Location: 12 Prev | Next Part: 66853400 *Qty: 1 R.H. SLEEVE-Not for RHD- $55.15
Location: 12 Prev | Next Part: 67457100 *Qty: 1 R.H. SLEEVE
-Valid for RHD-
Call
Location: 13 Prev | Next Part: 66853500 *Qty: 1 L.H. SLEEVE-Not for RHD- $55.15
Location: 13 Prev | Next Part: 67457200 *Qty: 1 L.H. SLEEVE-Valid for RHD- Call
Location: 14 Prev | Next Part: 68125800 *Qty: 1 AIR CONVEYOR
-Not for RHD-
$85.62
Location: 14 Prev | Next Part: 67852400 *Qty: 1 AIR CONVEYOR
-Valid for RHD-
Call
Location: 15 Prev | Next Part: 217836 *Qty: 1 ELECTRONIC CONTROL STATION $1,693.44
Location: 16 Prev | Next Part: 68391600 *Qty: 1 CONTROL UNIT FIXING BRACKET $84.86
Location: 17 Prev | Next Part: 68391900 *Qty: 12 SCREW $0.90
Location: 18 Prev | Next Part: 68391000 *Qty: 1 FAN Call
Location: 19 Prev | Next Part: 66855200 *Qty: 1 ANTI-POLLEN FILTER $118.69
Location: 20 Prev | Next Part: 68390600 *Qty: 1 FILTER COVER $46.61
Location: 21 Prev | Next Part: 68390700 *Qty: 1 COVER FIXING $62.92
Location: 22 Prev | Next Part: 69833300 *Qty: 1 ELECTRIC WIRING $653.77
Location: 23 Prev | Next Part: 68390100 *Qty: 2 SENSOR AIR $15.58
Location: 24 Prev | Next Part: 68389800 *Qty: 5 RUBBER $8.50
Location: 25 Prev | Next Part: 68391500 *Qty: 1 WATER PIPE SINK $4.94
Location: 26 Prev | Next Part: 68389500 *Qty: 1 INLET SINK $23.49
Location: 27 Prev | Next Part: 68390000 *Qty: 1 SINK FOR DEFROST DUCTING $35.06
Location: 28 Prev | Next Part: 68391800 *Qty: 1 FRONT SINK $5.61
Location: 29 Prev | Next Part: 68390200 *Qty: 1 PRESHAPED FREON PIPE ASSEMBLY $421.33
Location: 30 Prev | Next Part: 68391400 *Qty: 1 PROTECTION $3.23
Location: 31 Prev | Next Part: 68390300 *Qty: 1 BRACKET $84.27
Location: 32 Prev | Next Part: 68389400 *Qty: 1 GASKET $39.49
Location: 33 Prev | Next Part: 68391100 *Qty: 1 TGK VALVE $124.64
Location: 34 Prev | Next Part: 68389600 *Qty: 1 SINK FOR VALVE $5.17
Location: 35 Prev | Next Part: 68391300 *Qty: 1 O.R. GASKET $2.49
Location: 36 Prev | Next Part: 66309300 *Qty: 1 O.R. GASKET $2.14
Location: 37 Prev | Next Part: 64281500 *Qty: 1 UPPER FLANGE $5.56
Location: 38 Prev | Next Part: 66309500 *Qty: 1 O.R. GASKET $2.57
Location: 39 Prev | Next Part: 66309400 *Qty: 1 O.R. GASKET $2.57
Location: 40 Prev | Next Part: 67588300 *Qty: 1 LOWER FLANGE $24.18
Location: 41 Prev | Next Part: 68391700 *Qty: 1 BRACKET $26.72
Location: 42 Prev | Next Part: 178053 *Qty: 2 CLAMP $1.72
Location: 43 Prev | Next Part: 10441790 *Qty: 1 BRACKET WITH SHEATH $0.94
Location: 44 Prev | Next Part: 67134100 *Qty: 1 PIPE FOR CONDENSATE VENT $24.57
Location: 45 Prev | Next Part: 13274111 *Qty: 4 SCREW $0.90
Location: 46 Prev | Next Part: 12637824 *Qty: 4 WASHER $0.90
Location: 47 Prev | Next Part: 12640624 *Qty: 2 WASHER $0.90
Location: 48 Prev | Next Part: 12647701 *Qty: 1 WASHER $0.90
Location: 49 Prev | Next Part: 67612600 *Qty: 1 GASKET-Not for RHD- $11.83
Location: 49 Prev | Next Part: 67852500 *Qty: 1 GASKET
-Valid for RHD-
Call
Location: 50 Prev | Next Part: 10978024 *Qty: 5 SCREW $0.90
Location: 51 Prev | Next Part: 10977724 *Qty: 1 SCREW $0.90
Location: 52 Prev | Next Part: 127493 *Qty: 6 WASHER Superseded
Location: 53 Prev | Next Part: 12637824 *Qty: 6 WASHER $0.90
Location: 54 Prev | Next Part: 68298300 *Qty: 2 GASKET $4.15
Location: 55 Prev | Next Part: 69050400 *Qty: 1 ACTUATOR
-By-Pass-
$190.67
Location: 56 Prev | Next Part: 69050600 *Qty: 1 ACTUATOR
-L.h. floor air ducting-
$190.67
Location: 57 Prev | Next Part: 68886700 *Qty: 1 ACTUATOR
-R.h. floor air ducting-
$190.67
Location: 58 Prev | Next Part: 69050500 *Qty: 1 ACTUATOR
-L.h. lateral ventilation-
$224.84
Location: 59 Prev | Next Part: 68886800 *Qty: 1 ACTUATOR
-R.h. lateral ventilation-
$224.84
Location: 60 Prev | Next Part: 68887800 *Qty: 1 ACTUATOR
-Recycle-
-Not for RHD-
$224.84
Location: 60 Prev | Next Part: 69050700 *Qty: 1 ACTUATOR
-Recycle-
-Valid for RHD-
Call
Location: 61 Prev | Next Part: 69050000 *Qty: 1 ACTUATOR
-R.h. defroster ducting-
$190.67
Location: 62 Prev | Next Part: 69050300 *Qty: 1 ACTUATOR
-L.h. defroster ducting-
$190.67
Location: 63 Prev | Next Part: 69050100 *Qty: 1 ACTUATOR
-R.h. front ventilation-
$190.67
Location: 64 Prev | Next Part: 69050200 *Qty: 1 ACTUATOR
-L.h. front ventilation-
$190.67

* Quantity shown indicates the number of pieces used in the diagram.
