ENGINE COMPARTMENT FIRE-PROOF INSULATIONS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 69139100 *Qty: 1 R.H. UPPER INSULATION FOR FIREPROOF
-Not for RHD-
Call
Location: 1 Prev | Next Part: 69132900 *Qty: 1 R.H. UPPER INSULATION FOR FIREPROOF
-Valid for RHD-
Call
Location: 2 Prev | Next Part: 68785600 *Qty: 1 L.H. UPPER INSULATION FOR FIREPROOF
-Not for RHD-
Call
Location: 2 Prev | Next Part: 69133000 *Qty: 1 L.H. UPPER INSULATION FOR FIREPROOF
-Valid for RHD-
Call
Location: 3 Prev | Next Part: 69247900 *Qty: 1 R.H. HEAT SHIELD FOR FIREPROOF Call
Location: 4 Prev | Next Part: 69248000 *Qty: 1 L.H. HEAT SHIELD FOR FIREPROOF Call
Location: 5 Prev | Next Part: 16286124 *Qty: 9 SCREW $0.90
Location: 6 Prev | Next Part: 12601274 *Qty: 9 WASHER $0.90
Location: 7 Prev | Next Part: 12643724 *Qty: 10 WASHER $0.90
Location: 8 Prev | Next Part: 14059214 *Qty: 1 NUT $0.90
Location: 9 Prev | Next Part: 68785700 *Qty: 1 R.H. LATERAL INSULATION Call
Location: 10 Prev | Next Part: 68785800 *Qty: 1 L.H. LATERAL INSULATION Call
Location: 11 Prev | Next Part: 69951800 *Qty: 1 CENTRAL UPPER INSULATION FOR FIREPROOF
-Valid for RHD-
Call

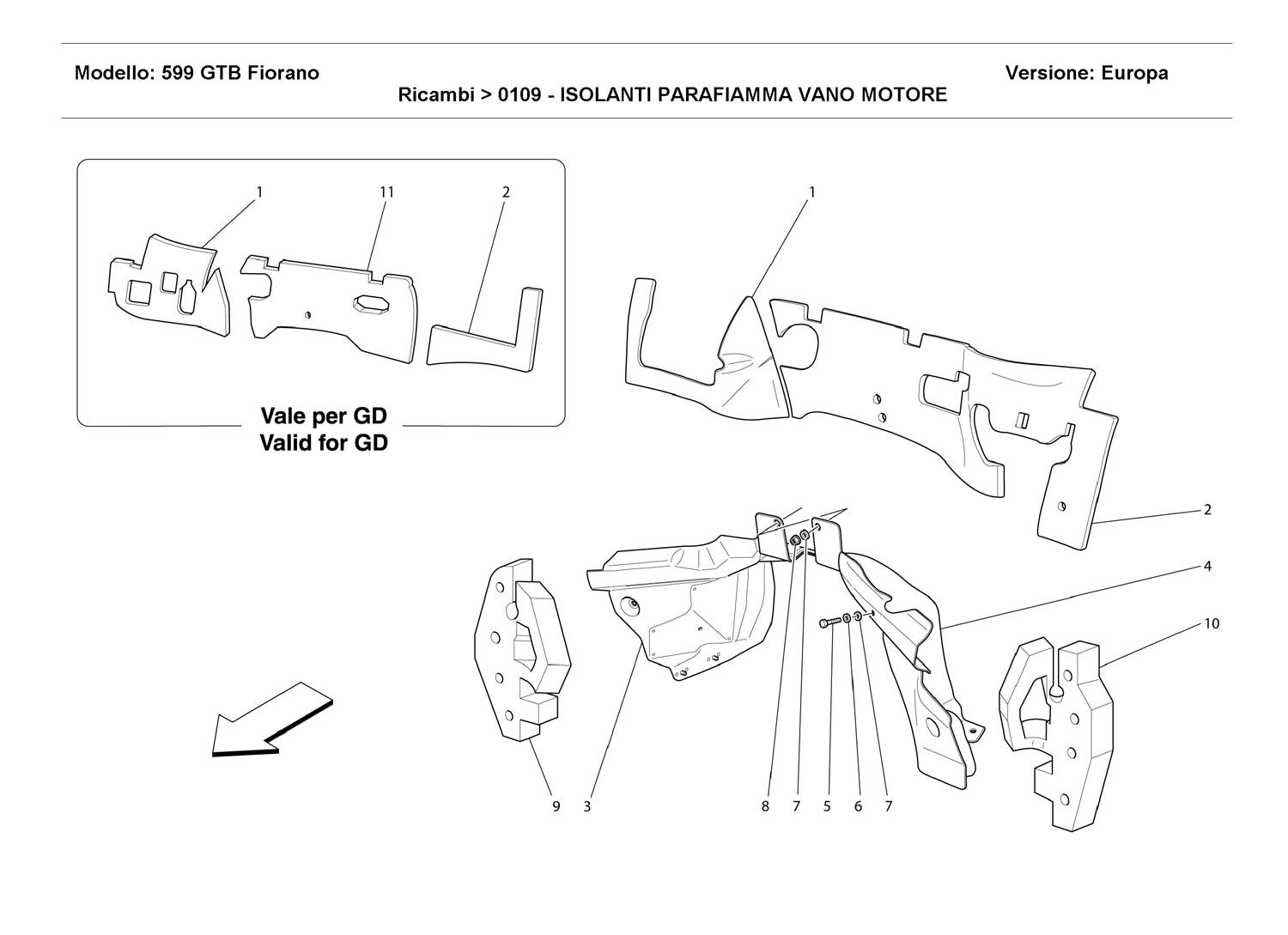

* Quantity shown indicates the number of pieces used in the diagram.
