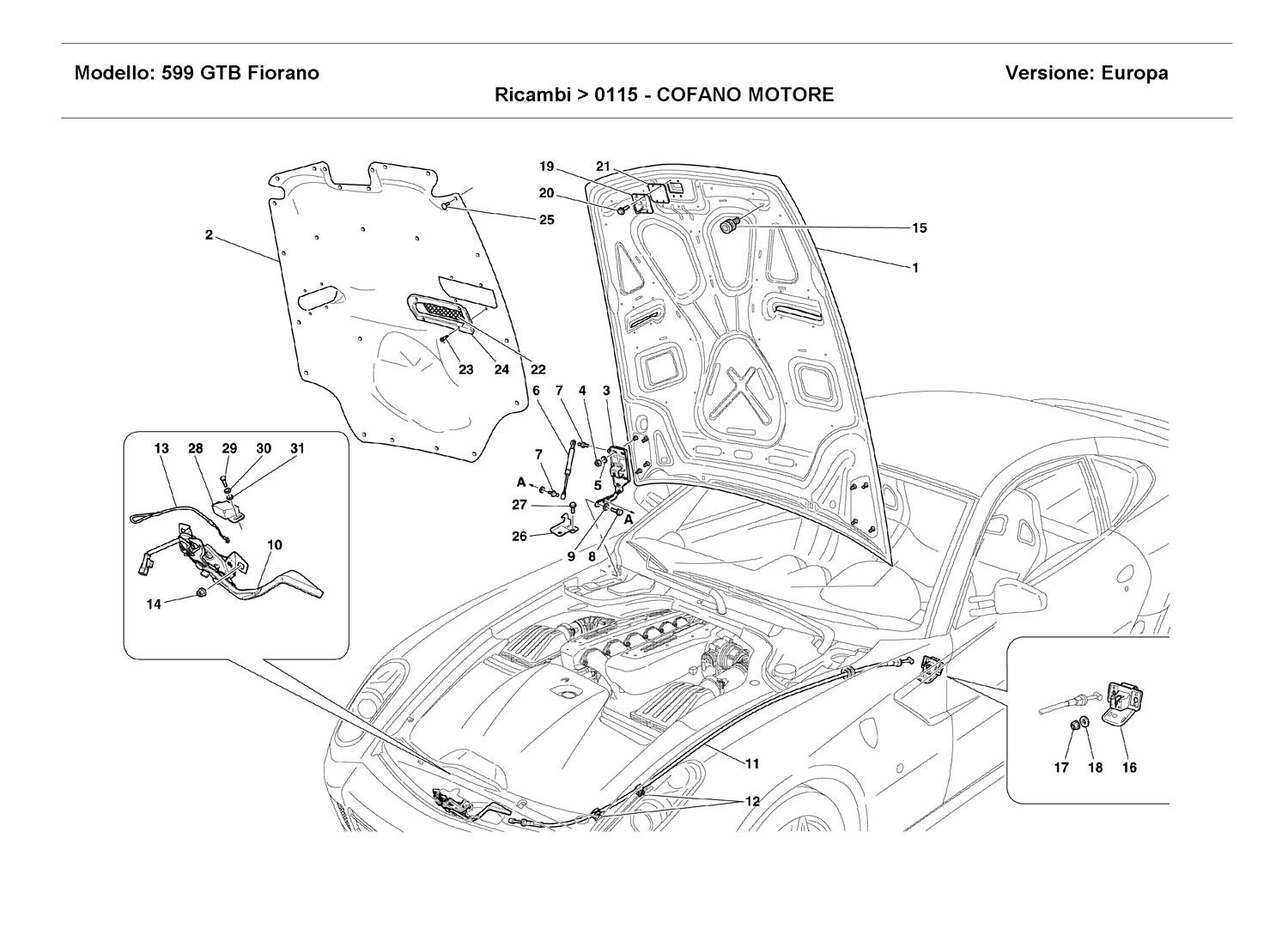

ENGINE BONNET

Go to Split View

ENGINE BONNET

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 68057711 *Qty: 1 FRONT HOOD BONNET $7,185.13
Location: 2 Prev | Next Part: 68577300 *Qty: 1 INNER LINING $1,430.69
Location: 3 Prev | Next Part: 68057900 *Qty: 1 COMPLETE R.H. HINGE $269.89
Location: 3 Prev | Next Part: 68058000 *Qty: 1 COMPLETE L.H. HINGE $269.89
Location: 4 Prev | Next Part: 14059311 *Qty: 4 NUT $0.90
Location: 5 Prev | Next Part: 12646701 *Qty: 8 WASHER Superseded
Location: 6 Prev | Next Part: 68576800 *Qty: 2 GAS SPRING $114.87
Location: 7 Prev | Next Part: 65939900 *Qty: 4 PIN $3.98
Location: 8 Prev | Next Part: 16287124 *Qty: 4 SCREW
-Not as spare part-
-Replaced by 11617624-
$1.44
Location: 8 Prev | Next Part: 11617624 *Qty: 4 SCREW $5.82
Location: 9 Prev | Next Part: 14496501 *Qty: 4 WASHER $0.90
Location: 10 Prev | Next Part: 69969400 *Qty: 1 ENGINE BONNET LOCK
-Not as spare part-
-Replaced by 69969400-
$86.57
Location: 10 Prev | Next Part: 69969400 *Qty: 1 ENGINE BONNET LOCK $86.57
Location: 11 Prev | Next Part: 69122000 *Qty: 1 CABLE FOR MOTOR BONNET OPENING
-Not for RHD-
Call
Location: 11 Prev | Next Part: 68977500 *Qty: 1 CABLE FOR MOTOR BONNET OPENING
-Valid for RHD-
-Valid till stock exhaustion-
Call
Location: 11 Prev | Next Part: 80207100 *Qty: 1 CABLE FOR MOTOR BONNET OPENING
-Valid for RHD-
-Valid after stock exhaustion of 68977500-
Call
Location: 12 Prev | Next Part: 14569480 *Qty: 2 CLIP $0.90
Location: 13 Prev | Next Part: 68577100 *Qty: 1 EMERGENCY CABLE $35.26
Location: 14 Prev | Next Part: 14040715 *Qty: 3 NUT $0.99
Location: 15 Prev | Next Part: 67161800 *Qty: 2 ANTIVIBRATION PAD $7.22
Location: 16 Prev | Next Part: 67003800 *Qty: 1 HANDLE FOR BONNET OPENING $80.30
Location: 17 Prev | Next Part: 14059111 *Qty: 2 NUT $0.90
Location: 18 Prev | Next Part: 12639724 *Qty: 2 WASHER $0.90
Location: 19 Prev | Next Part: 67134700 *Qty: 1 HOOD CLOSING STRIKER $33.88
Location: 20 Prev | Next Part: 16296927 *Qty: 4 SCREW $0.90
Location: 21 Prev | Next Part: 69362900 *Qty: 4 SPACER $4.49
Location: 22 Prev | Next Part: 68786300 *Qty: 1 L.H. GRILL $73.72
Location: 22 Prev | Next Part: 68786200 *Qty: 1 R.H. GRILL $73.72
Location: 23 Prev | Next Part: 69855300 *Qty: 8 BUTTON $0.90
Location: 24 Prev | Next Part: 69850400 *Qty: 1 L.H. AIRDIFFUSER $29.30
Location: 24 Prev | Next Part: 69850300 *Qty: 1 R.H. AIRDIFFUSER $29.30
Location: 25 Prev | Next Part: 14591687 *Qty: 26 FIXING BUTTON $0.90
Location: 26 Prev | Next Part: 68048000 *Qty: 1 R.H. BRACKET $32.32
Location: 26 Prev | Next Part: 68048100 *Qty: 1 L.H. BRACKET $32.32
Location: 27 Prev | Next Part: 16287224 *Qty: 4 SCREW Superseded
Location: 28 Prev | Next Part: 69867900 *Qty: 1 STRIKER LOCK BRACKET $27.53
Location: 29 Prev | Next Part: 10902387 *Qty: 2 SCREW $1.08
Location: 30 Prev | Next Part: 12601277 *Qty: 2 WASHER $0.90
Location: 31 Prev | Next Part: 12644478 *Qty: 2 SHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
