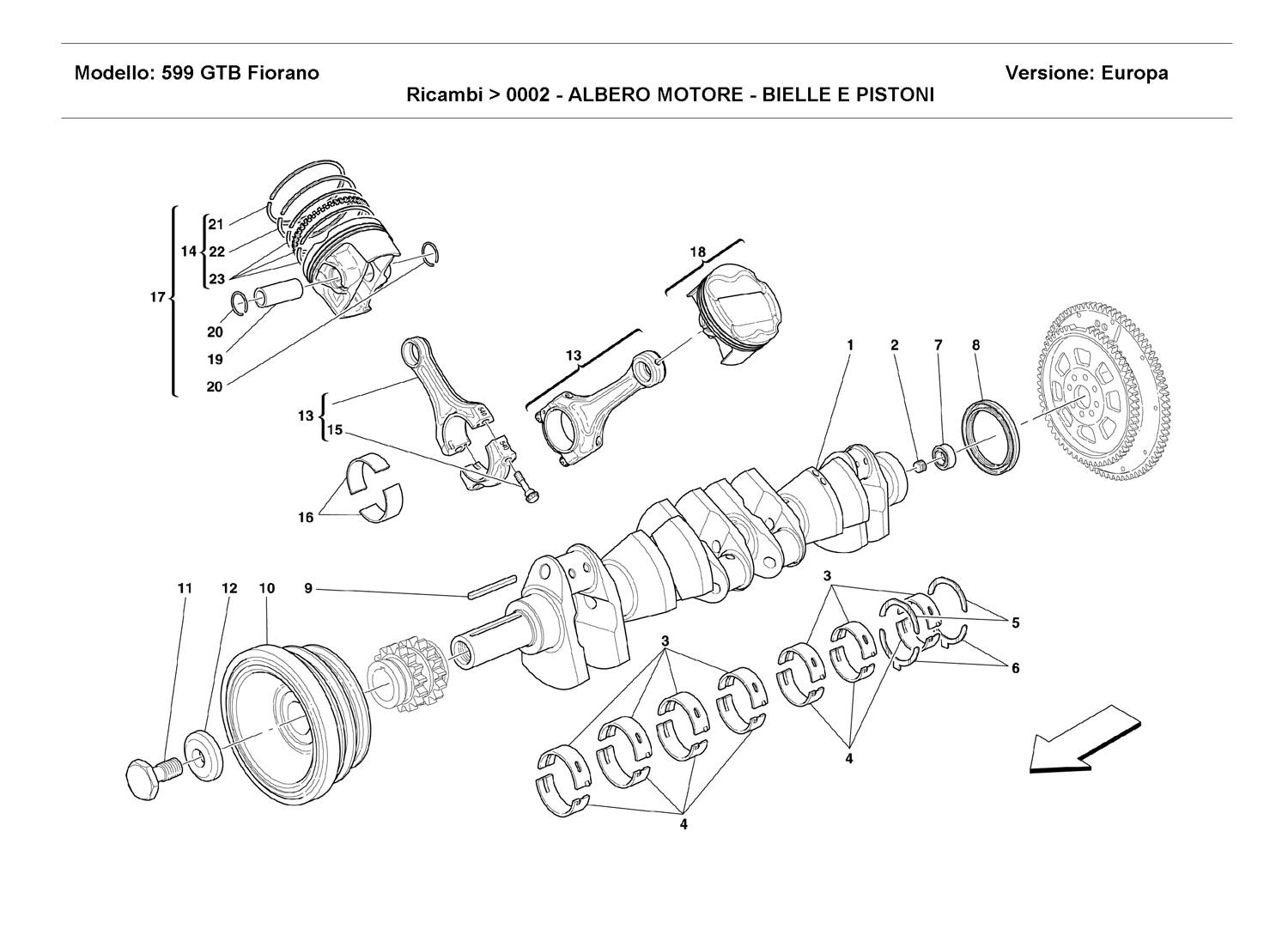

DRIVING SHAFT - CONNECTING RODS AND PISTONS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 214157 *Qty: 1 CRANKSHAFT
-Valid till engine Nr. 122778 for not USA and CDN-
-Valid till engine Nr. 124965 for USAandCDN-
Call
Location: 1 Prev | Next Part: 214157 *Qty: 1 CRANKSHAFT Call
Location: 2 Prev | Next Part: 163528 *Qty: 1 THREADED PLUG $5.15
Location: - Prev | Next Part: 227563 *Qty: 1 HALF-BEARINGS COMPLETE SERIES
-Red-
-STANDARD SIZE-
Call
Location: - Prev | Next Part: 227566 *Qty: 1 HALF-BEARINGS COMPLETE SERIES
-Blue-
Call
Location: - Prev | Next Part: 227567 *Qty: 1 HALF-BEARINGS COMPLETE SERIES
-Yellow-
Call
Location: 3 Prev | Next Part: - *Qty: 7 UPPER HALF BEARING
-Not as spare part-
-With the half-bearings complete series-
Call
Location: 4 Prev | Next Part: - *Qty: 7 LOWER HALF BEARING
-Not as spare part-
-With the half-bearings complete series-
Call
Location: 5 Prev | Next Part: - *Qty: 2 UPPER SPACER
-Not as spare part-
-With the half-bearings complete series-
Call
Location: 6 Prev | Next Part: - *Qty: 2 LOWER SPACER
-Not as spare part-
-With the half-bearings complete series-
Call
Location: 7 Prev | Next Part: 103877 *Qty: 1 BEARING FOR SHAFT $33.33
Location: 8 Prev | Next Part: 200323 *Qty: 1 GASKET $37.70
Location: 9 Prev | Next Part: 190981 *Qty: 1 KEY $1.34
Location: 10 Prev | Next Part: 215677 *Qty: 1 TORSION DAMPER $688.11
Location: 11 Prev | Next Part: 140925 *Qty: 1 SCREW $151.38
Location: 12 Prev | Next Part: 140922 *Qty: 1 WASHER $10.25
Location: 13 Prev | Next Part: 219158 *Qty: 12 COMPLETE CONNECTING ROD AND CAP $303.80
Location: 14 Prev | Next Part: 198025 *Qty: 12 PISTONS RINGS SET $296.27
Location: 15 Prev | Next Part: 208095 *Qty: 24 CONNECTING ROD TIGHTENING SCREW $74.13
Location: 16 Prev | Next Part: 204290 *Qty: 24 CONNECTING ROD HALF BEARING
-Red-
$9.41
Location: - Prev | Next Part: 204291 *Qty: 24 CONNECTING ROD HALF BEARING
-Blue-
$9.41
Location: - Prev | Next Part: 204292 *Qty: 24 CONNECTING ROD HALF BEARING
-Black-
$9.41
Location: 17 Prev | Next Part: 237552 *Qty: 6 R.H. PISTON WITH RINGS $601.30
Location: 18 Prev | Next Part: 237553 *Qty: 6 L.H. PISTON WITH RINGS $509.64
Location: 19 Prev | Next Part: 175367 *Qty: 12 PIN $75.51
Location: 20 Prev | Next Part: 178890 *Qty: 24 STOP RING $3.39
Location: 21 Prev | Next Part: 236497 *Qty: 12 AC SEAL RING (1nd groove)
-Not as spare part-
-With the pistons rings set-
Call
Location: 22 Prev | Next Part: 226260 *Qty: 12 AC SEAL RING (2nd groove)
-Not as spare part-
-With the pistons rings set-
$56.87
Location: 23 Prev | Next Part: 175614 *Qty: 12 ROF OIL SCRAPING RING (3rd groove)
-Not as spare part-
-With the pistons rings set-
$77.18

* Quantity shown indicates the number of pieces used in the diagram.
