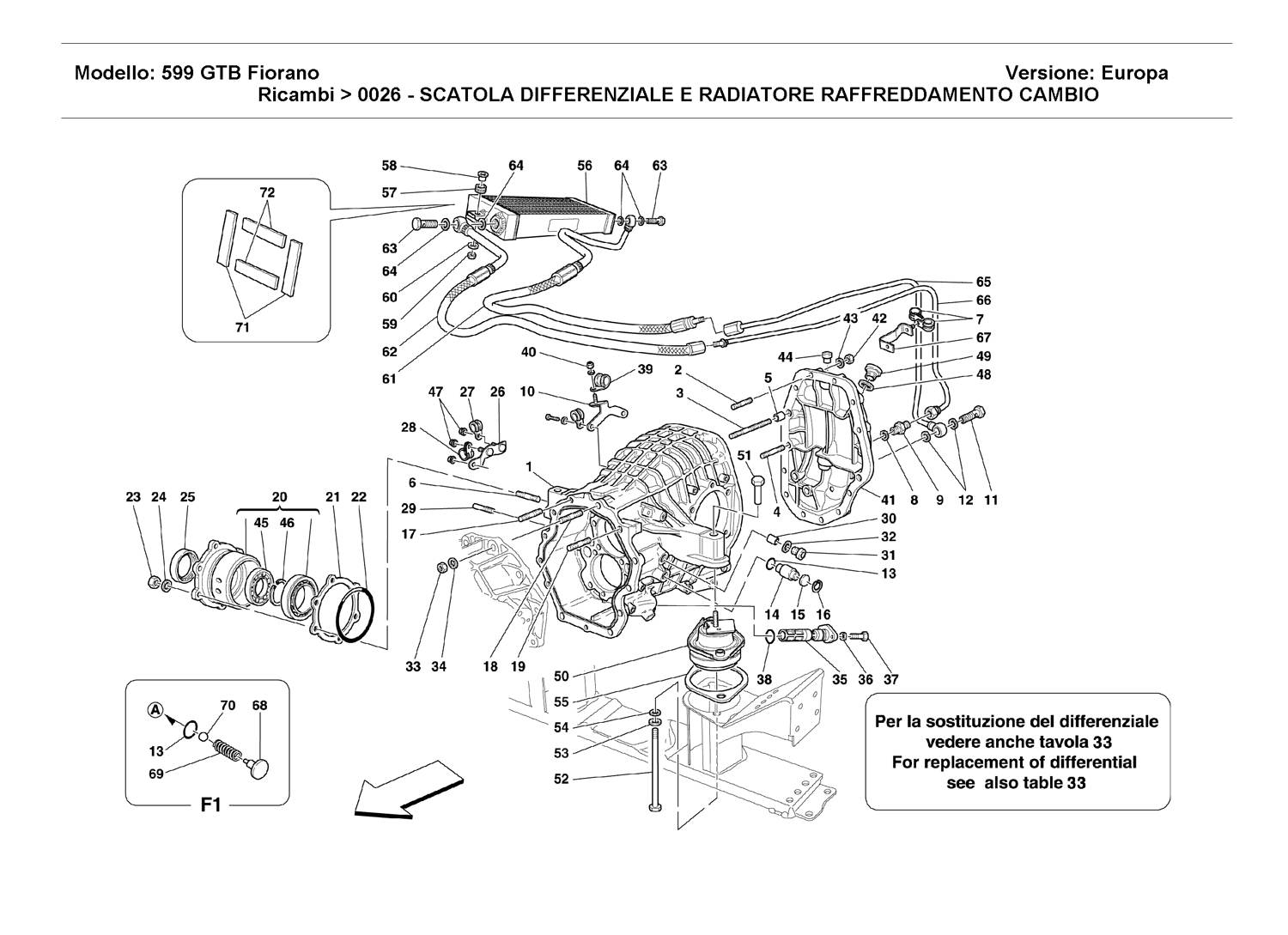

DIFFERENTIAL CARRIER AND CLUTCH COOLING RADIATOR

Go to Split View

DIFFERENTIAL CARRIER AND CLUTCH COOLING RADIATOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 227408 *Qty: 1 COMPLETE GEARBOX ASSEMBLY $17,532.41
Location: 1 Prev | Next Part: 227410 *Qty: 1 GEAR BOX 4rd ELEMENT
-With the complete gearbox 227408-
Call
Location: 2 Prev | Next Part: 13543624 *Qty: 3 STUD
-M8x16gambo30-
$0.90
Location: 3 Prev | Next Part: 13543724 *Qty: 5 STUD
-M8x16gambo35-
$1.11
Location: 4 Prev | Next Part: 211936 *Qty: 3 STUD
-M8x65-
$11.99
Location: 4 Prev | Next Part: 211937 *Qty: 1 STUD
-M8x70-
$16.90
Location: 4 Prev | Next Part: 13543824 *Qty: 1 STUD
-M8x16- gambo 40-
Superseded
Location: 5 Prev | Next Part: 102704 *Qty: 2 CENTERING DOWEL $19.74
Location: 6 Prev | Next Part: 13546224 *Qty: 12 STUD $19.68
Location: 7 Prev | Next Part: 10450690 *Qty: 2 BRACKET WITH SHEATH $0.90
Location: 8 Prev | Next Part: 10259960 *Qty: 1 GASKET $0.90
Location: 9 Prev | Next Part: 217788 *Qty: 1 UNION $26.34
Location: 10 Prev | Next Part: 199017 *Qty: 1 R.H. BRACKET $30.55
Location: 11 Prev | Next Part: 195589 *Qty: 1 UNION $20.48
Location: 12 Prev | Next Part: 10259960 *Qty: 2 GASKET $0.90
Location: 13 Prev | Next Part: 14453381 *Qty: 1 O.R. GASKET $1.61
Location: 14 Prev | Next Part: 153719 *Qty: 1 PIN-Not for F1- $21.00
Location: 15 Prev | Next Part: 154698 *Qty: 1 PAD-Not for F1- $7.66
Location: 16 Prev | Next Part: 11057476 *Qty: 1 SEEGER RING $0.90
Location: 17 Prev | Next Part: 13543524 *Qty: 1 STUD
-M8x16- gambo 25-
$0.90
Location: 18 Prev | Next Part: 13543624 *Qty: 2 STUD
-M8x16- gambo 30-
$0.90
Location: 19 Prev | Next Part: 13543724 *Qty: 1 STUD
-M8x16- gambo 35-
$1.11
Location: 20 Prev | Next Part: 189098 *Qty: 1 COMPLETE R.H. DIFFERENTIAL COVER $855.17
Location: 20 Prev | Next Part: 189100 *Qty: 1 COMPLETE L.H. DIFFERENTIAL COVER $855.17
Location: 21 Prev | Next Part: 150099 *Qty: 2 DIFFERENTIAL COVER THRUST THINCKNESS mm. 1,3 $87.91
Location: 21 Prev | Next Part: 150100 *Qty: 0 DITTO THINCKNESS mm. 1.4 $80.76
Location: 21 Prev | Next Part: 150101 *Qty: 0 DITTO THINCKNESS mm. 1.5 $80.76
Location: 21 Prev | Next Part: 150102 *Qty: 0 DITTO THINCKNESS mm. 1.6 $80.76
Location: 21 Prev | Next Part: 150103 *Qty: 0 DITTO THINCKNESS mm. 1.7 $230.67
Location: 21 Prev | Next Part: 150104 *Qty: 0 DITTO THINCKNESS mm. 1.8 $67.66
Location: 21 Prev | Next Part: 150105 *Qty: 0 DITTO THINCKNESS mm. 1.9 $107.25
Location: 21 Prev | Next Part: 150106 *Qty: 0 DITTO THINCKNESS mm. 1.45 $105.01
Location: 21 Prev | Next Part: 150107 *Qty: 0 DITTO THINCKNESS mm. 1.55 $107.25
Location: 21 Prev | Next Part: 150108 *Qty: 0 DITTO THINCKNESS mm. 1.65 $80.76
Location: 21 Prev | Next Part: 175378 *Qty: 0 DITTO THINCKNESS mm. 1.75 $60.37
Location: 22 Prev | Next Part: 14461381 *Qty: 2 O.R. GASKET $16.02
Location: 23 Prev | Next Part: 133988 *Qty: 12 NUT $0.90
Location: 24 Prev | Next Part: 12601474 *Qty: 12 WASHER $0.90
Location: 25 Prev | Next Part: 181618 *Qty: 1 R.H. GASKET $58.20
Location: 25 Prev | Next Part: 181617 *Qty: 1 L.H. GASKET $52.39
Location: 26 Prev | Next Part: 227196 *Qty: 1 BRACKET $41.95
Location: 27 Prev | Next Part: 10441490 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 28 Prev | Next Part: 10441390 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 29 Prev | Next Part: 16183021 *Qty: 1 SCREW $1.00
Location: 30 Prev | Next Part: 115376 *Qty: 3 BUSHING $40.25
Location: 31 Prev | Next Part: 150731 *Qty: 1 PLUG $5.02
Location: 32 Prev | Next Part: 10282460 *Qty: 1 GASKET $1.20
Location: 33 Prev | Next Part: 16100811 *Qty: 13 NUT Superseded
Location: 34 Prev | Next Part: 12601374 *Qty: 13 WASHER $0.90
Location: 35 Prev | Next Part: 143939 *Qty: 1 OIL FILTER ON THE GEAR BOX $120.66
Location: 36 Prev | Next Part: 11199277 *Qty: 2 WASHER $0.90
Location: 37 Prev | Next Part: 10977624 *Qty: 2 SCREW $0.90
Location: 38 Prev | Next Part: 182119 *Qty: 1 O.R. GASKET $3.05
Location: 39 Prev | Next Part: 10440990 *Qty: 1 BRACKET WITH SHEATH $1.96
Location: 40 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 41 Prev | Next Part: 222474 *Qty: 1 GEARBOX REAR COVER $388.62
Location: 42 Prev | Next Part: 16100811 *Qty: 14 NUT Superseded
Location: 43 Prev | Next Part: 12601374 *Qty: 14 WASHER $0.90
Location: 44 Prev | Next Part: 197797 *Qty: 1 OIL BREATHER
-Not as spare part-
-Replaced by 238858-
$32.18
Location: 44 Prev | Next Part: 238858 *Qty: 1 OIL BREATHER Call
Location: 45 Prev | Next Part: 184995 *Qty: 2 BALLBEARING $85.82
Location: 46 Prev | Next Part: 185723 *Qty: 2 SEEGER RING $5.65
Location: 47 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 48 Prev | Next Part: 10263460 *Qty: 1 GASKET Superseded
Location: 49 Prev | Next Part: 10275011 *Qty: 1 PLUG
-Not as spare part-
-Replaced by 10275011
-
$2.37
Location: 49 Prev | Next Part: 10275011 *Qty: 1 PLUG $2.37
Location: 50 Prev | Next Part: 196868 *Qty: 2 FLEXIBLE PAD
-Not as spare part for not F1-
-
-Replaced by 235533-
$323.02
Location: 50 Prev | Next Part: 235533 *Qty: 2 FLEXIBLEPAD-NotforF1- Call
Location: 51 Prev | Next Part: 196888 *Qty: 2 CENTERING STUD $16.89
Location: 52 Prev | Next Part: 166798 *Qty: 4 SCREW
-Not as spare part-
-Replaced by 232920-
$17.62
Location: 52 Prev | Next Part: 232920 *Qty: 4 SCREW $19.02
Location: 53 Prev | Next Part: 14496624 *Qty: 4 WASHER $0.90
Location: 54 Prev | Next Part: 12601474 *Qty: 4 WASHER $0.90
Location: 55 Prev | Next Part: 196333 *Qty: 2 SUPPORT PLATE FOR ENGINE PAD $11.94
Location: 56 Prev | Next Part: 214259 *Qty: 1 OIL RADIATOR $1,381.62
Location: 57 Prev | Next Part: 103549 *Qty: 3 CABLE GROMMET $0.90
Location: 58 Prev | Next Part: 149707 *Qty: 3 SPACER $1.45
Location: 59 Prev | Next Part: 102741 *Qty: 3 NUT $0.90
Location: 60 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 61 Prev | Next Part: 221999 *Qty: 1 OIL DELIVERY TUBE
-Radiator side-
$338.37
Location: 62 Prev | Next Part: 221997 *Qty: 1 OIL RETURN TUBE
-Radiator side-
$474.73
Location: 63 Prev | Next Part: 10181911 *Qty: 2 UNION $8.81
Location: 64 Prev | Next Part: 10261560 *Qty: 4 GASKET $0.90
Location: 65 Prev | Next Part: 225419 *Qty: 1 OIL DELIVERY TUBE
-Gear box side-
$204.62
Location: 66 Prev | Next Part: 228642 *Qty: 1 OIL RETURN TUBE
-Gear box side-
$414.57
Location: 67 Prev | Next Part: 213934 *Qty: 1 PI PES FIXING BRACKET $24.91
Location: 68 Prev | Next Part: 193578 *Qty: 1 BUSHING-Valid for F1- $29.62
Location: 69 Prev | Next Part: 100750 *Qty: 4 SPRING-Valid for F1- $1.23
Location: 70 Prev | Next Part: 101612 *Qty: 4 BALL
-Valid for F1-
$0.90
Location: 71 Prev | Next Part: 225333 *Qty: 2 GASKET $24.25
Location: 72 Prev | Next Part: 225335 *Qty: 2 GASKET $14.30

* Quantity shown indicates the number of pieces used in the diagram.
