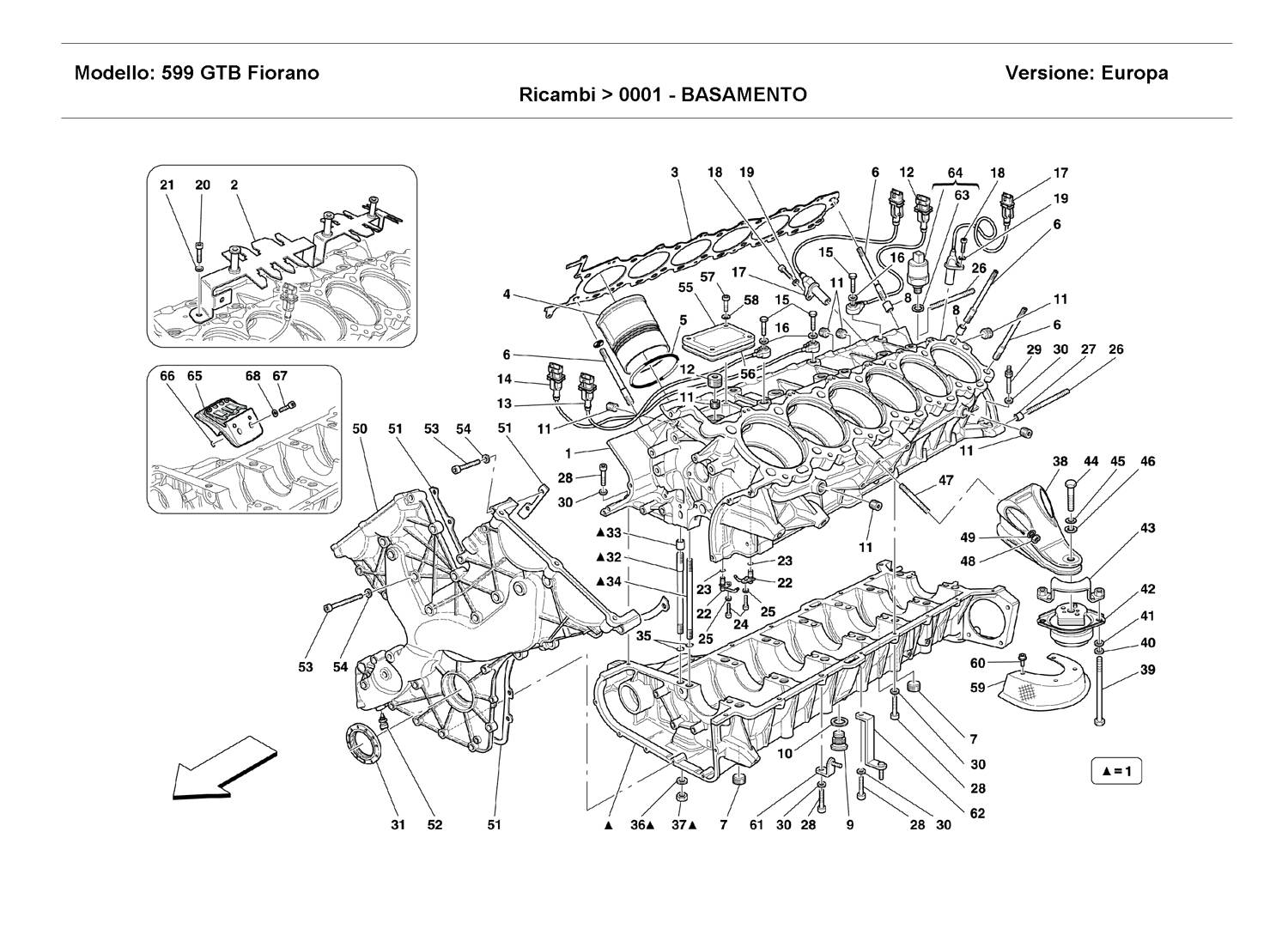

CRANKCASE

Go to Split View

CRANKCASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 213370 *Qty: 1 COMPLETE CRANKCASE
-Valid till engine Nr. 122778 for not USA and CDN-
-Valid till engine Nr.124965 for USA and CDN-
$8,387.45
Location: 1 Prev | Next Part: 213370 *Qty: 1 COMPLETE CRANKCASE $8,387.45
Location: 2 Prev | Next Part: 223787 *Qty: 1 CONNECTOR SUPPORT Call
Location: 3 Prev | Next Part: 213513 *Qty: 1 R.H. GASKET $299.21
Location: - Prev | Next Part: 213514 *Qty: 1 L.H. GASKET $299.21
Location: 4 Prev | Next Part: 213971 *Qty: 12 CYLINDER LlNER $309.61
Location: 5 Prev | Next Part: 186251 *Qty: 36 O.R. GASKET $4.90
Location: 6 Prev | Next Part: 217968 *Qty: 28 STUD $8.27
Location: 7 Prev | Next Part: 10269850 *Qty: 3 THREADED PLUG $2.37
Location: 8 Prev | Next Part: 185360 *Qty: 4 CENTERING DOWEL $3.61
Location: 9 Prev | Next Part: 104280 *Qty: 1 OIL OUTLET PLUG $10.09
Location: 10 Prev | Next Part: 10261860 *Qty: 1 GASKET $0.90
Location: 11 Prev | Next Part: 164400 *Qty: 7 THREADED PLUG $5.61
Location: - Prev | Next Part: 10269850 *Qty: 3 THREADED PLUG $2.37
Location: 12 Prev | Next Part: 227016 *Qty: 1 SENSOR FOR FIRING
-L= 300 mm-
-For cylinders 5/6-
$66.84
Location: - Prev | Next Part: 227017 *Qty: 1 SENSOR FOR FIRING
-L= 300 mm-
-For cylinders 7/8-
$78.86
Location: 13 Prev | Next Part: 227015 *Qty: 1 SENSOR FOR FIRING
-L= 400 mm-
-For cylinders 3/4-
$78.86
Location: - Prev | Next Part: 227019 *Qty: 1 SENSOR FOR FIRING
-L= 400 mm-
-For cylinders 9/10-
$78.86
Location: 14 Prev | Next Part: 227014 *Qty: 1 SENSOR FOR FIRING
-L= 650 mm-
-For cylinders 1/2-
$66.84
Location: - Prev | Next Part: 227020 *Qty: 1 SENSOR FOR FIRING
-L= 650 mm-
-Far cylinders 11/12-
$78.86
Location: 15 Prev | Next Part: 16043834 *Qty: 6 SCREW $0.90
Location: 16 Prev | Next Part: 11198074 *Qty: 6 WASHER $0.90
Location: 17 Prev | Next Part: 227045 *Qty: 2 ANGOLAR SPEED SENSOR $87.26
Location: 18 Prev | Next Part: 14305724 *Qty: 2 SCREW $0.90
Location: 19 Prev | Next Part: 11197774 *Qty: 2 WASHER Superseded
Location: 20 Prev | Next Part: 14305124 *Qty: 3 SCREW $0.90
Location: 21 Prev | Next Part: 11197774 *Qty: 3 WASHER Superseded
Location: 22 Prev | Next Part: 221381 *Qty: 12 PISTONS COOLING NOZZLE Call
Location: 23 Prev | Next Part: 164877 *Qty: 12 O.R. GASKET $0.90
Location: 24 Prev | Next Part: 14302921 *Qty: 12 SCREW $0.90
Location: 25 Prev | Next Part: 11181474 *Qty: 12 WASHER $0.90
Location: 26 Prev | Next Part: 13546934 *Qty: 2 STUD
-M10x1,25x20 gambo 50-
$1.94
Location: - Prev | Next Part: 13547034 *Qty: 2 STUD
-M10x1,25x20 gambo 55-
$11.05
Location: - Prev | Next Part: 13547134 *Qty: 2 STUD
-M10x1,25x20 gambo 60-
$1.18
Location: - Prev | Next Part: 13547434 *Qty: 1 STUD
-M10x1,25x20 gambo 75-
$8.54
Location: 27 Prev | Next Part: 100052 *Qty: 2 CENTERING DOWEL $4.55
Location: 28 Prev | Next Part: 14305424 *Qty: 11 SCREW
-L= 25 mm-
Superseded
Location: - Prev | Next Part: 14305324 *Qty: 1 SCREW
-L= 20 mm-
$0.90
Location: - Prev | Next Part: 14305824 *Qty: 1 SCREW
-L= 40 mm-
$0.90
Location: 29 Prev | Next Part: 219283 *Qty: 1 STUD $17.31
Location: - Prev | Next Part: 214412 *Qty: 2 STUD $13.79
Location: 30 Prev | Next Part: 11197774 *Qty: 16 WASHER Superseded
Location: 31 Prev | Next Part: 188717 *Qty: 1 GASKET $22.76
Location: 32 Prev | Next Part: 217796 *Qty: 14 STUD $6.08
Location: 33 Prev | Next Part: 176421 *Qty: 14 CENTERING DOWEL $5.22
Location: 34 Prev | Next Part: 190426 *Qty: 14 STUD $11.05
Location: 35 Prev | Next Part: 134704 *Qty: 28 O.R. GASKET $0.90
Location: 36 Prev | Next Part: 178348 *Qty: 28 WASHER $1.14
Location: 37 Prev | Next Part: 133988 *Qty: 28 NUT $0.90
Location: 38 Prev | Next Part: 209827 *Qty: 1 ENGINE FIXING R.H. SUPPORT $273.24
Location: - Prev | Next Part: 210375 *Qty: 1 ENGINE FIXING L.H. SUPPORT $268.05
Location: 39 Prev | Next Part: 15971834 *Qty: 2 SCREW
-L= 100 mm-
$2.15
Location: - Prev | Next Part: 122418 *Qty: 2 SCREW
-L= 165 mm-
$18.84
Location: 40 Prev | Next Part: 14496624 *Qty: 4 WASHER $0.90
Location: 41 Prev | Next Part: 127497 *Qty: 4 WASHER $0.90
Location: 42 Prev | Next Part: 196746 *Qty: 2 FLEXlBLE PAD $423.69
Location: 43 Prev | Next Part: 215704 *Qty: 2 BRACKET FOR FULL BUMP POSISION PAD $62.86
Location: 44 Prev | Next Part: 16039734 *Qty: 2 SCREW $1.26
Location: 45 Prev | Next Part: 13550521 *Qty: 2 WASHER $0.90
Location: 46 Prev | Next Part: 127498 *Qty: 2 WASHER $0.90
Location: 47 Prev | Next Part: 13449934 *Qty: 8 STUD $1.44
Location: 48 Prev | Next Part: 133988 *Qty: 8 NUT $0.90
Location: 49 Prev | Next Part: 11190574 *Qty: 8 WASHER $0.90
Location: 50 Prev | Next Part: 211282 *Qty: 1 FRONT COVER $1,312.18
Location: 51 Prev | Next Part: 197770 *Qty: 1 FRONT COVER GASKET Call
Location: 52 Prev | Next Part: 180137 *Qty: 1 TEMPERATURE SENSOR $40.53
Location: 53 Prev | Next Part: 14432224 *Qty: 13 SCREW
-L= 22 mm-
Superseded
Location: - Prev | Next Part: 14305524 *Qty: 4 SCREW
-L= 30 mm-
$0.90
Location: - Prev | Next Part: 14305624 *Qty: 1 SCREW
-L= 35 mm-
$0.90
Location: - Prev | Next Part: 14305824 *Qty: 4 SCREW
-L= 40 mm-
$0.90
Location: - Prev | Next Part: 14305924 *Qty: 1 SCREW
-L= 45 mm-
Superseded
Location: - Prev | Next Part: 14304824 *Qty: 2 SCREW
-L= 55 mm-
$0.90
Location: 54 Prev | Next Part: 11197774 *Qty: 27 WASHER Superseded
Location: 55 Prev | Next Part: 208451 *Qty: 1 COVER $35.69
Location: 56 Prev | Next Part: 209623 *Qty: 1 GASKET $7.20
Location: 57 Prev | Next Part: 14305324 *Qty: 4 SCREW $0.90
Location: 58 Prev | Next Part: 11197774 *Qty: 4 WASHER Superseded
Location: 59 Prev | Next Part: 212879 *Qty: 2 SHIELD $172.72
Location: 60 Prev | Next Part: 13026924 *Qty: 4 SCREW $0.90
Location: 61 Prev | Next Part: 224128 *Qty: 2 PIPE FIXJNG BRACKET Call
Location: 62 Prev | Next Part: 226548 *Qty: 1 PIPE FIXJNG BRACKET $102.78
Location: 63 Prev | Next Part: 183010 *Qty: 2 GASKET $2.78
Location: 64 Prev | Next Part: 201207 *Qty: 1 OIL PRESSURE TRANSMITTER $248.28
Location: 65 Prev | Next Part: 10259960 *Qty: 1 GASKET $0.90

* Quantity shown indicates the number of pieces used in the diagram.
