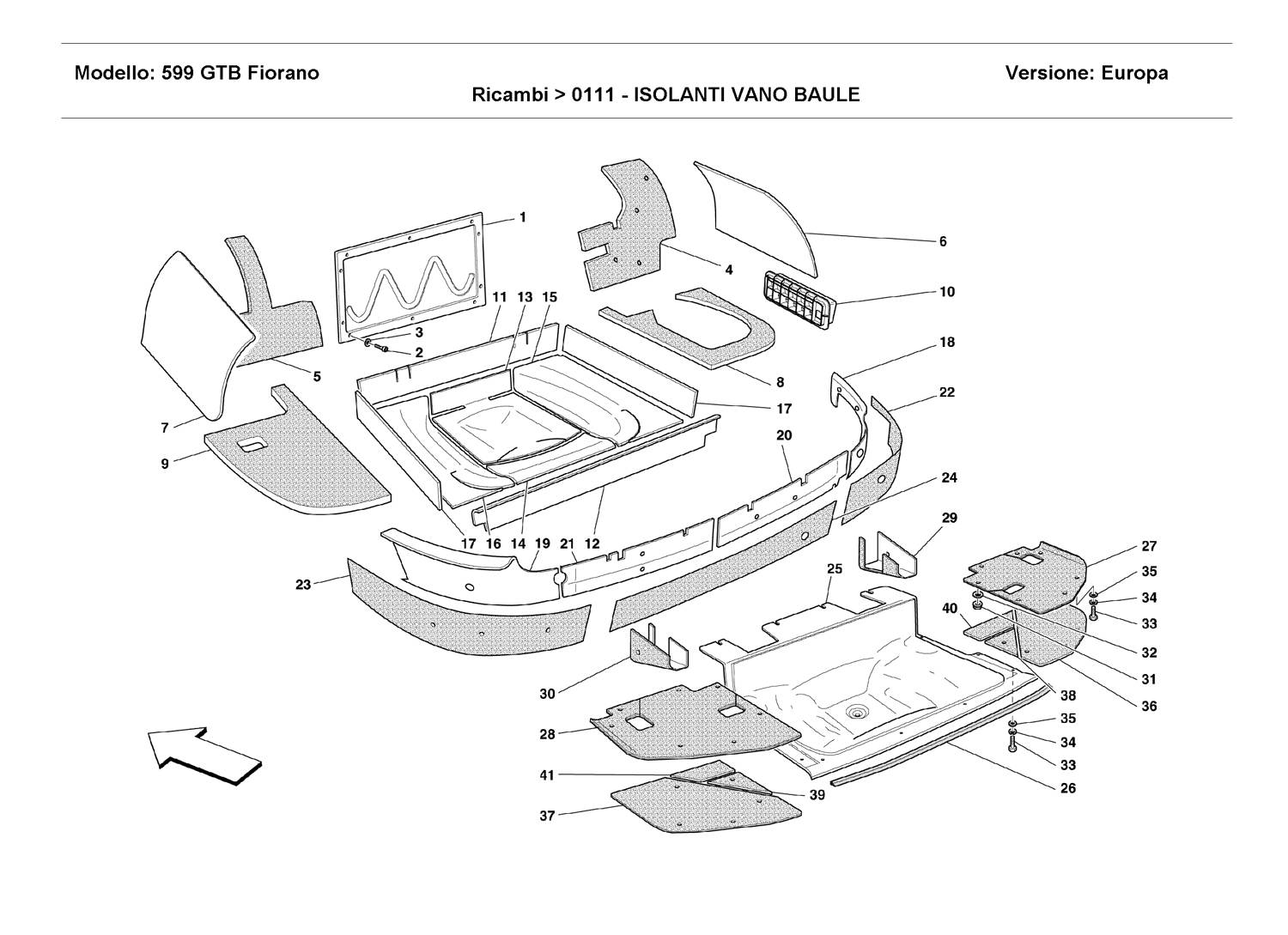

BOOT INSULATION

Go to Split View

BOOT INSULATION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 69356700 *Qty: 1 SHIELD
-Spare wheel version-
$137.74
Location: 1 Prev | Next Part: 68570600 *Qty: 1 SHIELD
-Without spare wheel version-
Call
Location: 2 Prev | Next Part: 13272011 *Qty: 10 SCREW $60.79
Location: 3 Prev | Next Part: 12642801 *Qty: 10 WASHER $0.90
Location: 4 Prev | Next Part: 68570400 *Qty: 1 R.H. INSULATION ON WHEELHOUSE Call
Location: 5 Prev | Next Part: 68570500 *Qty: 1 L.H. INSULATION ON WHEELHOUSE $345.64
Location: 6 Prev | Next Part: 68569300 *Qty: 1 R.H. MUDGUARD INSULATION Call
Location: 7 Prev | Next Part: 68569400 *Qty: 1 L.H. MUDGUARD INSULATION $218.29
Location: 8 Prev | Next Part: 68569900 *Qty: 1 R.H. LATERAL INSULATION Call
Location: 9 Prev | Next Part: 68570000 *Qty: 1 L.H. LATERAL INSULATION $345.64
Location: 10 Prev | Next Part: 67163000 *Qty: 1 AIR OUTLET OPENING $22.27
Location: 11 Prev | Next Part: 68569000 *Qty: 1 SPARE WHEEL FRONT INSULATION Call
Location: 12 Prev | Next Part: 68569500 *Qty: 1 INSULATION Call
Location: 13 Prev | Next Part: 68568700 *Qty: 1 SPARE WHEEL INSULATION Call
Location: 14 Prev | Next Part: 68570100 *Qty: 1 REAR INSULATION Call
Location: 15 Prev | Next Part: 68568500 *Qty: 1 R.H. LATERAL INSULATION Call
Location: 16 Prev | Next Part: 68568600 *Qty: 1 L.H. LATERAL INSULATION Call
Location: 17 Prev | Next Part: 68569100 *Qty: 2 SPARE WHEEL LATERAL INSULATION $345.64
Location: 18 Prev | Next Part: 68570200 *Qty: 1 R.H. REAR INSULATION $179.77
Location: 19 Prev | Next Part: 68570300 *Qty: 1 L.H. REAR INSULATION Call
Location: 20 Prev | Next Part: 68569200 *Qty: 1 R.H. VERTICAL INSULATION Call
Location: 21 Prev | Next Part: 69367800 *Qty: 1 L.H. VERTICAL INSULATION Call
Location: 22 Prev | Next Part: 68572700 *Qty: 1 R.H. INSULATION $184.98
Location: 23 Prev | Next Part: 68572800 *Qty: 1 L.H. INSULATION Call
Location: 24 Prev | Next Part: 68572900 *Qty: 1 INSULATION Call
Location: 25 Prev | Next Part: 69715700 *Qty: 1 COMPLETE SPARE WHEEL HEAT SHIELD $1,902.29
Location: 26 Prev | Next Part: 68315100 *Qty: 1 GASKET $7.35
Location: 27 Prev | Next Part: 68572400 *Qty: 1 R.H. SMALL PLANE INSULATION Call
Location: 28 Prev | Next Part: 68572500 *Qty: 1 L.H. SMALL PLANE INSULATION $576.05
Location: 29 Prev | Next Part: 69701500 *Qty: 1 R.H. INSULATION Call
Location: 30 Prev | Next Part: 69701600 *Qty: 1 L.H. INSULATION Call
Location: 31 Prev | Next Part: 14059214 *Qty: 2 NUT $0.90
Location: 32 Prev | Next Part: 12643770 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: 10902380 *Qty: 14 SCREW $0.90
Location: 34 Prev | Next Part: 127494 *Qty: 14 WASHER $0.90
Location: 35 Prev | Next Part: 12643770 *Qty: 14 WASHER $0.90
Location: 36 Prev | Next Part: 69716500 *Qty: 1 R.H. LOWER GUARD Call
Location: 37 Prev | Next Part: 69716600 *Qty: 1 L.H. LOWER GUARD $72.76
Location: 38 Prev | Next Part: 69833400 *Qty: 1 R.H. INNER LOWER GUARD Call
Location: 39 Prev | Next Part: 69833600 *Qty: 1 L.H. INNER LOWER GUARD Call
Location: 40 Prev | Next Part: 69833500 *Qty: 1 R.H. REAR LOWER GUARD Call
Location: 41 Prev | Next Part: 69833700 *Qty: 1 L.H. REAR LOWER GUARD $21.84

* Quantity shown indicates the number of pieces used in the diagram.
