Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 180055 *Qty: 1 BATTERY 12V-74AH-400A Superseded
Location: 2 Prev | Next Part: 204767 *Qty: 1 PAN FOR BATTERY LIQUID $19.73
Location: 3 Prev | Next Part: 204773 *Qty: 1 BATTERY BIN $135.68
Location: 4 Prev | Next Part: 204772 *Qty: 1 BRACKET FOR BATTERY INTRODUCTION $53.04
Location: 5 Prev | Next Part: 16043524 *Qty: 6 SCREW $0.90
Location: 6 Prev | Next Part: 14496524 *Qty: 6 WASHER $0.90
Location: 7 Prev | Next Part: 200857 *Qty: 1 BATTERY CHARGER LINK CABLE $179.04
Location: 8 Prev | Next Part: 13274114 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 14059114 *Qty: 2 NUT $0.90
Location: 10 Prev | Next Part: 188272 *Qty: 2 TIE ROD $10.01
Location: 11 Prev | Next Part: 217834 *Qty: 1 ANGLE PIECE $139.83
Location: 12 Prev | Next Part: 204770 *Qty: 1 MOBILE BRACKET FOR BATTERY FIXING $9.01
Location: 13 Prev | Next Part: 196157 *Qty: 1 CUT-OUT SWITCH $284.00
Location: 14 Prev | Next Part: 196553 *Qty: 1 CUT OUT SWITCH-MASS CONNECTING PLAIT $209.93
Location: 15 Prev | Next Part: 196552 *Qty: 1 BATTERY-CUT OUT SWITCH CONNECTING PLAIT $209.93
Location: 16 Prev | Next Part: 204716 *Qty: 1 BATTERY POSITIVE CABLE
-Not for RHD-
$235.25
Location: 16 Prev | Next Part: 218747 *Qty: 1 BATTERY POSITIVE CABLE
-Valid for RHD-
Call
Location: 17 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 18 Prev | Next Part: 214478 *Qty: 1 PIPE $4.33
Location: 19 Prev | Next Part: 10396380 *Qty: 1 CABLE GROMMET $0.90
Location: 20 Prev | Next Part: 204760 *Qty: 1 BATTERY VENT PIPE $2.64
Location: 21 Prev | Next Part: 10396380 *Qty: 1 CABLE GROMMET $0.90
Location: 22 Prev | Next Part: 191533 *Qty: 1 BRACKET $17.04
Location: 23 Prev | Next Part: 14059111 *Qty: 2 NUT $0.90
Location: 24 Prev | Next Part: 199904 *Qty: 1 BATTERY CONTROL STATION $125.13
Location: 25 Prev | Next Part: 199905 *Qty: 1 COVER FOR BATTERY CONTROL STATION $9.48
Location: 26 Prev | Next Part: 198704 *Qty: 1 MEGA FUSE $28.76
Location: 27 Prev | Next Part: 10902324 *Qty: 1 SCREW Superseded
Location: 28 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 29 Prev | Next Part: 10441290 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 30 Prev | Next Part: 178682 *Qty: 1 BATTERY CHARGER KIT
-Not for USA, CDN, J, GB, Hong Kong and AUS-
-Optional-
$2,054.72
Location: 30 Prev | Next Part: 178683 *Qty: 1 BATTERY CHARGER KIT
-Valid for USA, CDN and J-
-Optional-
Superseded
Location: 30 Prev | Next Part: 178685 *Qty: 1 BATTERY CHARGER KIT
-Valid for GB and Hong Kong-
-Optional-
$1,162.18
Location: 30 Prev | Next Part: 178684 *Qty: 1 BATTERY CHARGER KIT
-Valid for AUS-
-Optional-
$985.49
Location: 31 Prev | Next Part: 65699200 *Qty: 1 BATTERY BAG CASE
-Optional-
$509.36
Location: 32 Prev | Next Part: 177791 *Qty: 1 BATTERY CHARGER
-230V-
-Not for USA, CDN and J-
-Optional-
$1,056.65
Location: 32 Prev | Next Part: 177792 *Qty: 1 BATTERY CHARGER
-110V-
-Not for USA, CDN and J-
-Optional-
$2,319.72
Location: 33 Prev | Next Part: 178676 *Qty: 1 CABLE WITH CONNECTOR
-Optional-
$368.38
Location: 34 Prev | Next Part: 177794 *Qty: 1 POWER SUPPLY CABLE
-Not for USA, CDN, J, GB, Hong Kong and AUS-
-Optional-
$31.62
Location: 34 Prev | Next Part: 177795 *Qty: 1 POWEER SUPPLY CABLE
-Valid for USA, CDN and J-
-Optional-
$23.71
Location: 34 Prev | Next Part: 178294 *Qty: 1 POWER SUPPLY CABLE
-Valid for GB and Hong Kong-
-Optional-
Call
Location: 34 Prev | Next Part: 177796 *Qty: 1 POWER SUPPLY CABLE
-Valid for AUS-
-Optional-
Call
Location: 35 Prev | Next Part: 231503 *Qty: 1 BATTERY CHARGER KIT
-Not for USA, CDN, GB, J-
-Optional-
Call
Location: 35 Prev | Next Part: 231504 *Qty: 1 BATTERY CHARGER KIT
-Valid for USA and CDN-
-Optional-
Superseded
Location: 35 Prev | Next Part: 231506 *Qty: 1 BATTERY CHARGER KIT
-Valid for GB-
-Optional-
Call
Location: 35 Prev | Next Part: 236798 *Qty: 1 BATTERY CHARGER KIT
-Valid for J-
-Optional-
Call

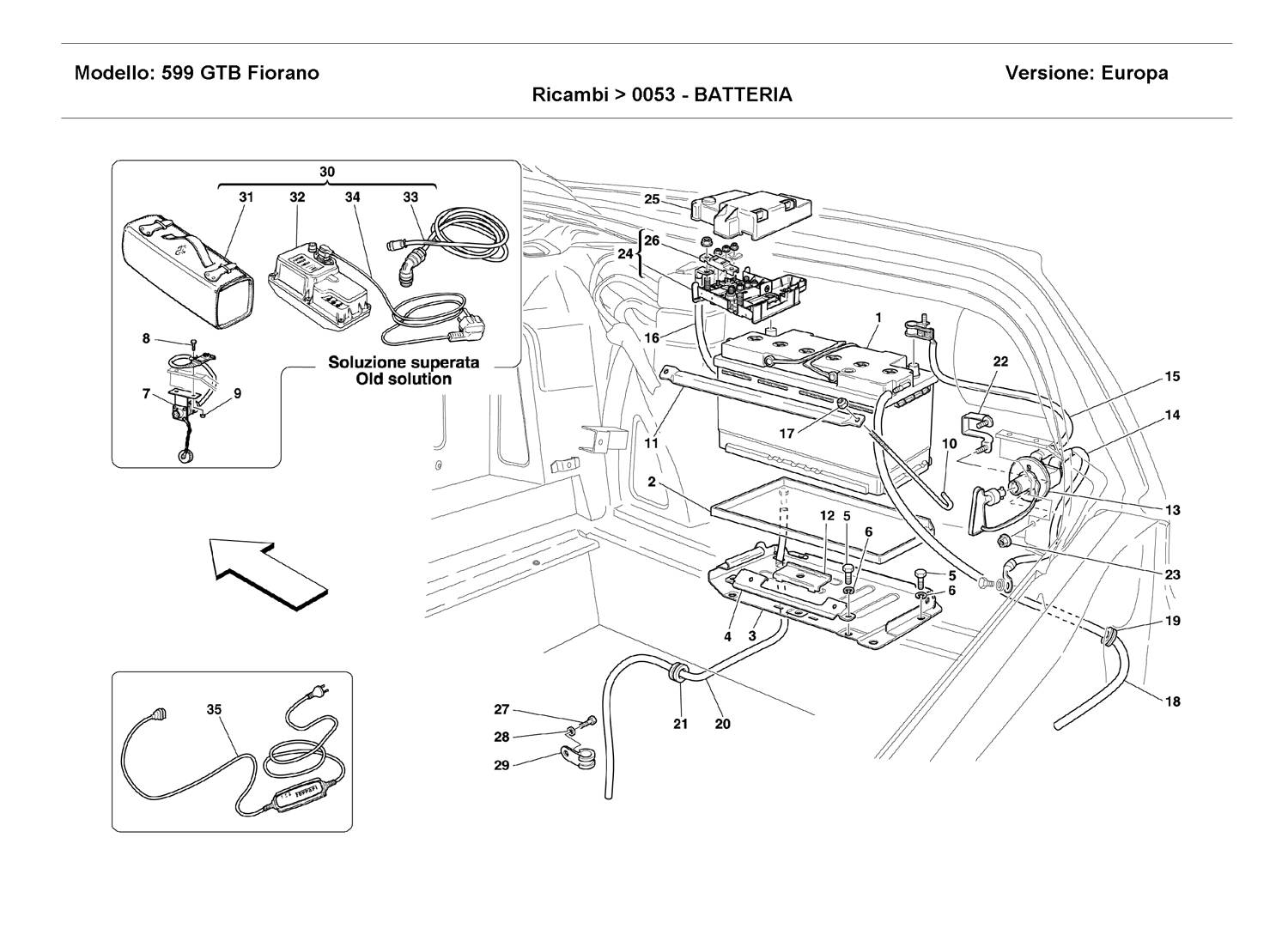

* Quantity shown indicates the number of pieces used in the diagram.
