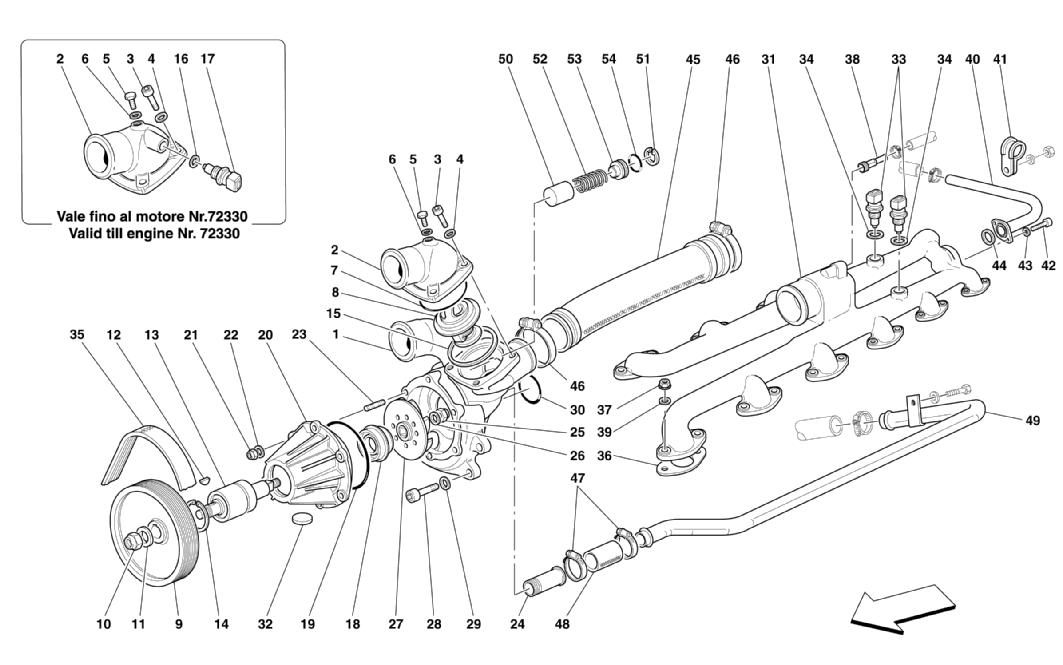

WATER PUMP

Go to Split View

WATER PUMP

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 176173C *Qty: 1 WATER PUMP (NO PULLEY) $700.00
Location: 1 Prev | Next Part: 184002 *Qty: 1 WATER PUMP BODY $659.00
Location: 2 Prev | Next Part: 163952 *Qty: 1 THERMOSTATIC VALVE COVER -Valid from engine Nr. 72331 $145.08
Location: 2 Prev | Next Part: 183681 *Qty: 1 THERMOSTATIC VALVE COVER -Valid till engine Nr. 72330 $119.05
Location: 3 Prev | Next Part: 14433124 *Qty: 4 SCREW $0.90
Location: 4 Prev | Next Part: 12601274 *Qty: 4 WASHER $0.90
Location: 5 Prev | Next Part: 132349 *Qty: 1 UNION -Valid from engine Nr. 72331 Call
Location: 5 Prev | Next Part: 130282 *Qty: 1 UNION -Valid till engine Nr. 72330 $9.19
Location: 6 Prev | Next Part: 10297760 *Qty: 1 GASKET $0.90
Location: 7 Prev | Next Part: 149279 *Qty: 1 O.R. GASKET $5.65
Location: 8 Prev | Next Part: 183758 *Qty: 1 THERMOSTAT $144.08
Location: 9 Prev | Next Part: 169924 *Qty: 1 PULLEY $252.25
Location: 10 Prev | Next Part: 102742 *Qty: 1 NUT $0.84
Location: 11 Prev | Next Part: 12646824 *Qty: 1 WASHER $0.90
Location: 12 Prev | Next Part: 10202320 *Qty: 1 DISC KEY $1.44
Location: 13 Prev | Next Part: 143742 *Qty: 1 BEARING WITH SHAFT $275.50
Location: 14 Prev | Next Part: 11059976 *Qty: 1 SEEGER RING $1.38
Location: 15 Prev | Next Part: 137873 *Qty: 1 GASKET $5.49
Location: 16 Prev | Next Part: 10298460 *Qty: 1 GASKET -Valid till engine Nr. 72330 $0.90
Location: 17 Prev | Next Part: 180137 *Qty: 1 WATER TEMPERATURE SENSOR -Valid till engine Nr. 72330 $31.45
Location: 18 Prev | Next Part: 183759 *Qty: 1 SEAL RING $39.84
Location: 19 Prev | Next Part: 137868 *Qty: 1 O.R. GASKET $18.20
Location: 20 Prev | Next Part: 176173 *Qty: 1 WATER PUMP COVER $534.86
Location: 21 Prev | Next Part: 102741 *Qty: 6 NUT $0.51
Location: 22 Prev | Next Part: 12601274 *Qty: 6 WASHER $0.90
Location: 23 Prev | Next Part: 13540924 *Qty: 6 STUD Call
Location: 24 Prev | Next Part: 141068 *Qty: 1 UNION $77.99
Location: 25 Prev | Next Part: 100436 *Qty: 1 CAP NUT $13.30
Location: 26 Prev | Next Part: 11194074 *Qty: 1 WASHER $0.90
Location: 27 Prev | Next Part: 176045 *Qty: 1 WATER PUMP IMPELLER $156.32
Location: 28 Prev | Next Part: 14306424 *Qty: 4 SCREW $0.90
Location: 29 Prev | Next Part: 11193874 *Qty: 4 WASHER $0.90
Location: 30 Prev | Next Part: 141250 *Qty: 1 O.R. GASKET $0.90
Location: 31 Prev | Next Part: 184255 *Qty: 1 HEAD WATER MANIFOLD $774.61
Location: 32 Prev | Next Part: 10158801 *Qty: 1 PLUG $1.85
Location: 33 Prev | Next Part: 180137 *Qty: 2 WATER TEMPERATURE SENSOR $31.45
Location: 34 Prev | Next Part: 10298460 *Qty: 2 GASKET $0.90
Location: 35 Prev | Next Part: 201456 *Qty: 1 BELT -Valid after stock exhaustion of 177511 $43.72
Location: 36 Prev | Next Part: 141332 *Qty: 12 GASKET $1.53
Location: 37 Prev | Next Part: 132877 *Qty: 24 NUT -Not as spare part -Replaced by 194031 $2.35
Location: 37 Prev | Next Part: 194031 *Qty: 27 NUT $0.90
Location: 38 Prev | Next Part: 155093 *Qty: 1 UNION $20.56
Location: 39 Prev | Next Part: 12604274 *Qty: 24 WASHER $0.90
Location: 40 Prev | Next Part: 191905 *Qty: 1 PIPE FROM DUCT -Valid for GD $197.47
Location: 40 Prev | Next Part: 189984 *Qty: 1 PIPE FROM DUCT -Not for GD $59.34
Location: 41 Prev | Next Part: 145661 *Qty: 1 BRACKET WITH SHEATH -Valid for GD $5.31
Location: 41 Prev | Next Part: 189983 *Qty: 1 BRACKET WITH SHEATH -Not for GD Call
Location: 42 Prev | Next Part: 14433124 *Qty: 2 SCREW $0.90
Location: 43 Prev | Next Part: 11197771 *Qty: 2 WASHER Superseded
Location: 44 Prev | Next Part: 145352 *Qty: 1 O.R. GASKET $0.90
Location: 45 Prev | Next Part: 181599 *Qty: 1 CONNECTION SLEEVE BEETWEN MANIFOLD AND WATER PUMP $182.84
Location: 46 Prev | Next Part: 134109 *Qty: 2 SCREW COLLAR Superseded
Location: 47 Prev | Next Part: 13000490 *Qty: 2 SCREW COLLAR Call
Location: 48 Prev | Next Part: 175223 *Qty: 1 RUBBER PIPE $12.69
Location: 49 Prev | Next Part: 191916 *Qty: 1 PIPE FROM WATER PUMP -Not for GD $55.44
Location: 49 Prev | Next Part: 191906 *Qty: 1 PIPE FROM WATER PUMP -Valid for GD $246.80
Location: 50 Prev | Next Part: 176046 *Qty: 1 BUSHING FOR BY-PASS $31.97
Location: 51 Prev | Next Part: 11058376 *Qty: 1 SEEGER RING $0.90
Location: 52 Prev | Next Part: 176047 *Qty: 1 SPRING FOR BY-PASS $15.21
Location: 53 Prev | Next Part: 176048 *Qty: 1 PLUG FOR BY-PASS SPRING $16.35
Location: 54 Prev | Next Part: 147278 *Qty: 1 O.R. GASKET $0.90

* Quantity shown indicates the number of pieces used in the diagram.
