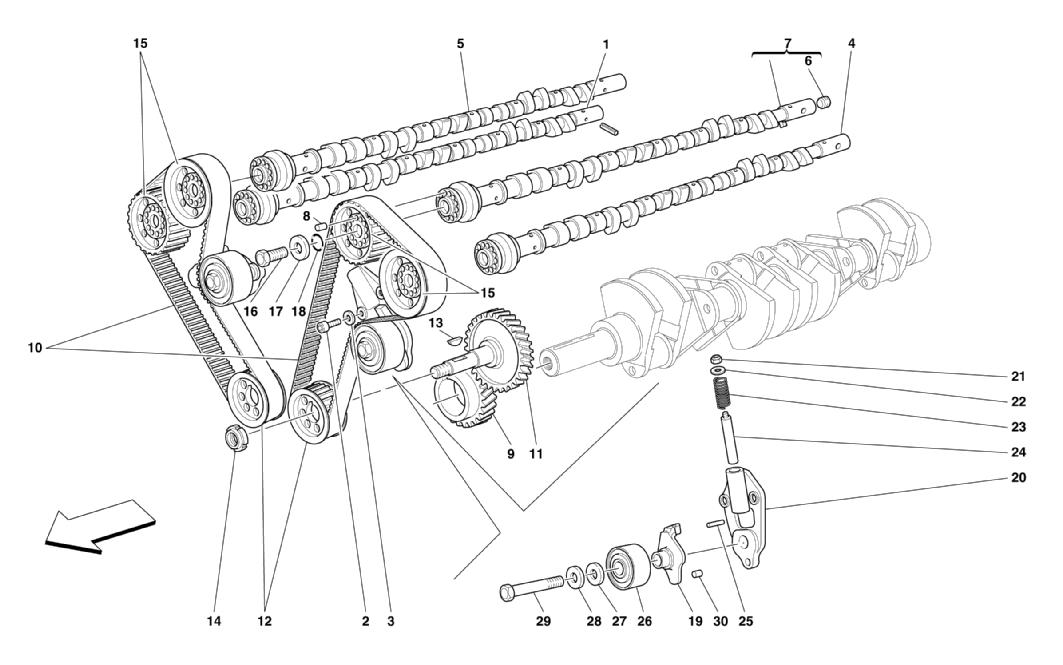

TIMING - CONTROLS

Go to Split View

TIMING - CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 184688 *Qty: 1 COMPLETE R.H. EXHAUST CAM SHAFT -Valid till stock exhaustion Call
Location: 1 Prev | Next Part: 208371 *Qty: 1 COMPLETE R.H. EXHAUST CAM SHAFT $943.27
Location: 2 Prev | Next Part: 14306424 *Qty: 4 SCREW $0.90
Location: 3 Prev | Next Part: 11193874 *Qty: 4 WASHER $0.90
Location: 4 Prev | Next Part: 208373 *Qty: 1 COMPLETE L.H. EXHAUST CAM SHAFT $943.27
Location: 4 Prev | Next Part: 184692 *Qty: 1 COMPLETE L.H. EXHAUST CAM SHAFT -Valid till stock exhaustion $935.07
Location: 5 Prev | Next Part: 208369 *Qty: 1 COMPLETE R.H. INDUCTION DISTRIBUTION CAM SHAFT $943.27
Location: 5 Prev | Next Part: 184686 *Qty: 1 COMPLETE R.H. INDUCTION DISTRIBUTION CAM SHAFT -Valid till stock exhaustion $2,540.86
Location: 6 Prev | Next Part: 10269550 *Qty: 3 THREADED PLUG $0.90
Location: 7 Prev | Next Part: 208372 *Qty: 1 COMPLETE L.H. INDUCTION DISTRIBUTION CAM SHAFT $943.27
Location: 7 Prev | Next Part: 184690 *Qty: 1 COMPLETE L.H. INDUCTION DISTRIBUTION CAM SHAFT -Valid till stock exhaustion $950.61
Location: 8 Prev | Next Part: 114803 *Qty: 4 DOWEL $4.84
Location: 9 Prev | Next Part: 168702 *Qty: 1 DRIVING GEAR $228.60
Location: 10 Prev | Next Part: 187744 *Qty: 2 TIMING CONTROL BELT $165.10
Location: 11 Prev | Next Part: 168701 *Qty: 2 DRIVEN GEAR $406.97
Location: 12 Prev | Next Part: 149928 *Qty: 2 CONTROL TIMING GEAR Call
Location: 13 Prev | Next Part: 10206320 *Qty: 2 DISC KEY $1.90
Location: 14 Prev | Next Part: 104919 *Qty: 2 RING NUT $5.85
Location: 15 Prev | Next Part: 159382 *Qty: 4 DRIVEN GEAR $173.20
Location: 16 Prev | Next Part: 146540 *Qty: 4 SCREW $8.54
Location: 17 Prev | Next Part: 114802 *Qty: 4 WASHER $7.80
Location: 18 Prev | Next Part: 114808 *Qty: 4 O.R. GASKET $5.50
Location: 19 Prev | Next Part: 171060 *Qty: 2 PLATE $98.77
Location: 20 Prev | Next Part: 149346 *Qty: 2 BELT TIGHTENER BODY $111.52
Location: 21 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 22 Prev | Next Part: 121558 *Qty: 2 WASHER $2.28
Location: 23 Prev | Next Part: 121249 *Qty: 2 SPRING FOR BELT STRETCHER $15.99
Location: 24 Prev | Next Part: 121047 *Qty: 2 PIN $10.49
Location: 25 Prev | Next Part: 13933570 *Qty: 2 PIN $0.90
Location: 26 Prev | Next Part: 171057 *Qty: 2 PULLEY FOR BELT TIGHTENING $150.00
Location: 27 Prev | Next Part: 111460 *Qty: 2 SPACER Call
Location: 28 Prev | Next Part: 102824 *Qty: 2 WASHER $4.45
Location: 29 Prev | Next Part: 149461 *Qty: 2 SCREW $19.75
Location: 30 Prev | Next Part: 125717 *Qty: 2 DOWEL $4.04

* Quantity shown indicates the number of pieces used in the diagram.
