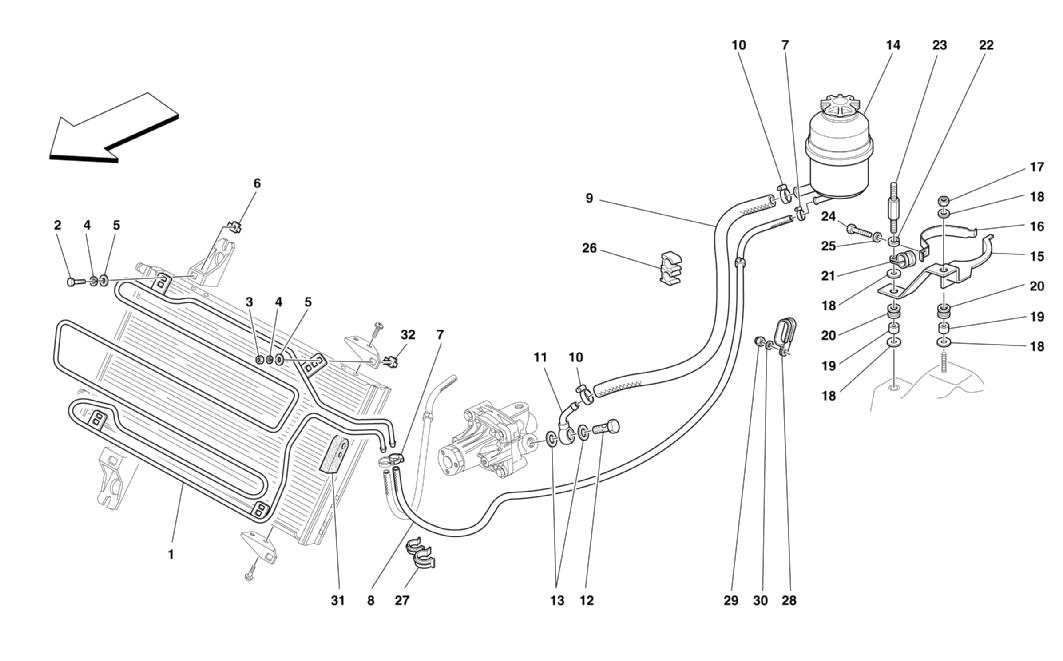

OIL TANK FOR SERVOSTEERING AND SERPENTINE

Go to Split View

OIL TANK FOR SERVOSTEERING AND SERPENTINE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 177360 *Qty: 1 REFRIGERATING COIL $443.78
Location: 2 Prev | Next Part: 10902224 *Qty: 2 SCREW $0.90
Location: 3 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 4 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 5 Prev | Next Part: 12643724 *Qty: 4 WASHER $0.90
Location: 6 Prev | Next Part: 60758600 *Qty: 2 NUT WITH CAGE $0.90
Location: 7 Prev | Next Part: 161490 *Qty: 2 SCREW COLLAR $2.55
Location: 8 Prev | Next Part: 179377 *Qty: 1 PIPE FROM REFRIGERATING COIL TO FUEL TANK -Valid for GD $206.27
Location: 8 Prev | Next Part: 186912 *Qty: 1 PIPE FROM REFRIGERATING COIL TO FUEL TANK -Not for GD $181.05
Location: 9 Prev | Next Part: 193216 *Qty: 1 RUBBER PIPE FROM TANK TO PUMP -Valid for GD $95.52
Location: 9 Prev | Next Part: 179381 *Qty: 1 RUBBER PIPE FROM TANK TO PUMP -Not for GD $81.63
Location: 10 Prev | Next Part: 13000390 *Qty: 2 SCREW COLLAR $0.90
Location: 11 Prev | Next Part: 155449 *Qty: 1 SWINGING UNION $455.19
Location: 12 Prev | Next Part: 155448 *Qty: 1 UNION $22.27
Location: 13 Prev | Next Part: 10261560 *Qty: 2 GASKET $0.90
Location: 14 Prev | Next Part: 170877 *Qty: 1 OIL TANK FOR SERVOSTEERING $78.70
Location: 15 Prev | Next Part: 173586 *Qty: 1 BRACKET -Valid for GD $117.69
Location: 15 Prev | Next Part: 183077 *Qty: 1 BRACKET -Not for GD $85.29
Location: 16 Prev | Next Part: 171746 *Qty: 1 CLAMP -Not for GD $28.63
Location: 16 Prev | Next Part: 173587 *Qty: 1 CLAMP -Valid for GD $93.69
Location: 17 Prev | Next Part: 102948 *Qty: 1 NUT $0.90
Location: 18 Prev | Next Part: 12643724 *Qty: 4 WASHER $0.90
Location: 19 Prev | Next Part: 103550 *Qty: 2 SPACER $2.55
Location: 20 Prev | Next Part: 103549 *Qty: 2 CABLE GROMMET $1.61
Location: 21 Prev | Next Part: 10441490 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 22 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 23 Prev | Next Part: 189070 *Qty: 1 STUD $153.01
Location: 24 Prev | Next Part: 10902124 *Qty: 1 SCREW $0.90
Location: 25 Prev | Next Part: 12601274 *Qty: 1 WASHER $0.90
Location: 26 Prev | Next Part: 172847 *Qty: 1 SPRINGS -Valid for GD $0.90
Location: 26 Prev | Next Part: 190219 *Qty: 1 SPRINGS -Not for GD $6.64
Location: 27 Prev | Next Part: 140730 *Qty: 5 FIXING CLIP $0.90
Location: 27 Prev | Next Part: 171358 *Qty: 1 FIXING CLIP $0.90
Location: 28 Prev | Next Part: 61712500 *Qty: 2 BRACKET WITH SHEATH $2.23
Location: 29 Prev | Next Part: 102948 *Qty: 1 NUT $0.90
Location: 30 Prev | Next Part: 12639724 *Qty: 1 WASHER $0.90
Location: 31 Prev | Next Part: 65141300 *Qty: 1 SEALING $9.30
Location: 32 Prev | Next Part: 14662495 *Qty: 2 SCREW WITH CAGE $0.90

* Quantity shown indicates the number of pieces used in the diagram.
