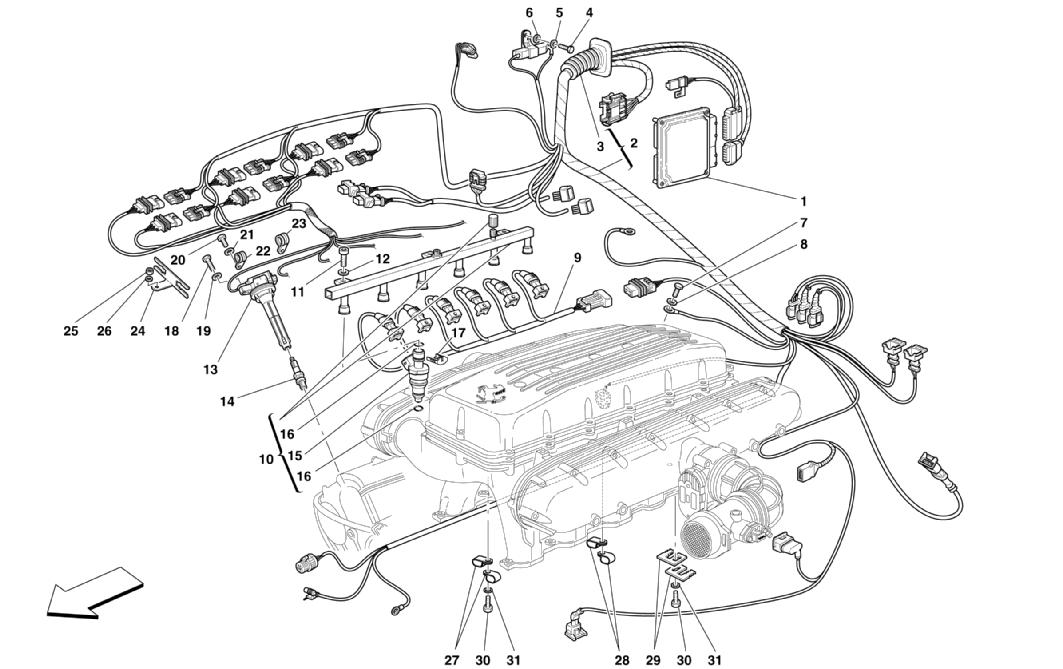

INJECTION - IGNITION DEVICE

Go to Split View

INJECTION - IGNITION DEVICE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 198456 *Qty: 2 CONTROL UNIT IGNITION -Not for F1 -Valid from Ass. Nr. 49203 till Ass. Nr. 52555 $2,555.84
Location: 1 Prev | Next Part: 202756 *Qty: 2 CONTROL UNIT IGNITION -Not for F1 -Valid from Ass. Nr. 52556 -Valid till Ass. Nr.55768 Call
Location: 1 Prev | Next Part: 211423 *Qty: 2 CONTROL UNIT IGNITION -Valid for F1 -Valid for USA and CDN -Valid from Ass. Nr. 55769 Call
Location: 1 Prev | Next Part: 198455 *Qty: 2 CONTROL UNIT IGNITION -Valid for F1 -Valid till Ass. Nr. 53133 -Valid from Ass. Nr. 49203 till Ass. Nr. 52555 $2,750.62
Location: 1 Prev | Next Part: 211422 *Qty: 2 CONTROL UNIT IGNITION -Not for F1 -Valid for USA and CDN -Valid from Ass. Nr. 55769 Call
Location: 1 Prev | Next Part: 181165 *Qty: 2 CONTROL UNIT IGNITION -Not for F1 -Valid till Ass. Nr. 49202 -Not as spare part -Replaced by 198456 Call
Location: 1 Prev | Next Part: 202757 *Qty: 2 CONTROL UNIT IGNITION -Valid for F1 -Valid from Ass. Nr. 52556 -Valid till Ass. Nr.55768 $1,897.04
Location: 1 Prev | Next Part: 211504 *Qty: 2 CONTROL UNIT IGNITION -Valid for F1 -Not for USA and CDN -Valid from Ass. Nr. 55769 $1,825.98
Location: 1 Prev | Next Part: 211503 *Qty: 2 CONTROL UNIT IGNITION -Not for F1 -Not for USA and CDN -Valid from Ass. Nr. 55769 $2,647.68
Location: 2 Prev | Next Part: 187765 *Qty: 1 L.H. SIDE ENGINE CONNECTING CABLES -Not for GD $1,424.03
Location: 2 Prev | Next Part: 189490 *Qty: 1 L.H. SIDE ENGINE CONNECTING CABLES -Valid for GD $1,022.91
Location: 2 Prev | Next Part: 196496 *Qty: 1 R.H. SIDE ENGINE CONNECTING CABLES -Valid for GD -Valid from engine Nr. 72331 Call
Location: 2 Prev | Next Part: 187764 *Qty: 1 R.H. SIDE ENGINE CONNECTING CABLES -Not for GD -Valid till engine Nr. 72330 $1,424.03
Location: 2 Prev | Next Part: 189489 *Qty: 1 R.H. SIDE ENGINE CONNECTING CABLES -Valid for GD -Valid till engine Nr. 72330 $1,022.91
Location: 2 Prev | Next Part: 196495 *Qty: 1 R.H. SIDE ENGINE CONNECTING CABLES -Not for GD -Valid from engine Nr. 72331 Call
Location: 3 Prev | Next Part: 183318 *Qty: 2 RUBBER BOOT $13.08
Location: 4 Prev | Next Part: 10902124 *Qty: 2 SCREW $0.90
Location: 5 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 6 Prev | Next Part: 12643724 *Qty: 2 WASHER $0.90
Location: 7 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 8 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 9 Prev | Next Part: 182192 *Qty: 2 INJECTORS CONNECTING CABLES $143.43
Location: 10 Prev | Next Part: 180563 *Qty: 2 PIPE FOR INJECTORS $2,018.62
Location: 11 Prev | Next Part: 14306224 *Qty: 6 SCREW $0.90
Location: 12 Prev | Next Part: 12601374 *Qty: 6 WASHER $0.90
Location: 13 Prev | Next Part: 186914 *Qty: 12 IGNITION COIL $182.19
Location: 14 Prev | Next Part: DCPR9EIX *Qty: 12 SPARK PLUG $11.77
Location: 15 Prev | Next Part: 180552 *Qty: 12 ELECTRO-INJECTOR $402.44
Location: 16 Prev | Next Part: 133902 *Qty: 24 O.R. GASKET $7.20
Location: 17 Prev | Next Part: 144730 *Qty: 12 INJECTORS RETAINING CLIP $4.03
Location: 18 Prev | Next Part: 14432224 *Qty: 24 SCREW -Valid from engine Nr. 79586 Superseded
Location: 18 Prev | Next Part: 10902534 *Qty: 24 SCREW -Valid till engine Nr. 79585 $0.90
Location: 19 Prev | Next Part: 12601274 *Qty: 24 WASHER $0.90
Location: 20 Prev | Next Part: 10979434 *Qty: 10 SCREW $1.38
Location: 21 Prev | Next Part: 12601274 *Qty: 10 WASHER $0.90
Location: 22 Prev | Next Part: 10441190 *Qty: 4 BRACKET WITH SHEATH $0.90
Location: 23 Prev | Next Part: 10441390 *Qty: 6 BRACKET WITH SHEATH $0.90
Location: 24 Prev | Next Part: 188586 *Qty: 6 CONNECTOR FIXING BRACKET $4.36
Location: 25 Prev | Next Part: 102741 *Qty: 6 NUT $0.51
Location: 26 Prev | Next Part: 10519424 *Qty: 6 WASHER Call
Location: 27 Prev | Next Part: 10441290 *Qty: 2 BRACKET $0.90
Location: 28 Prev | Next Part: 10441490 *Qty: 2 BRACKET $0.90
Location: 29 Prev | Next Part: 156198 *Qty: 2 CLIP $21.46
Location: 30 Prev | Next Part: 10902024 *Qty: 3 SCREW $0.90
Location: 31 Prev | Next Part: 127494 *Qty: 3 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
