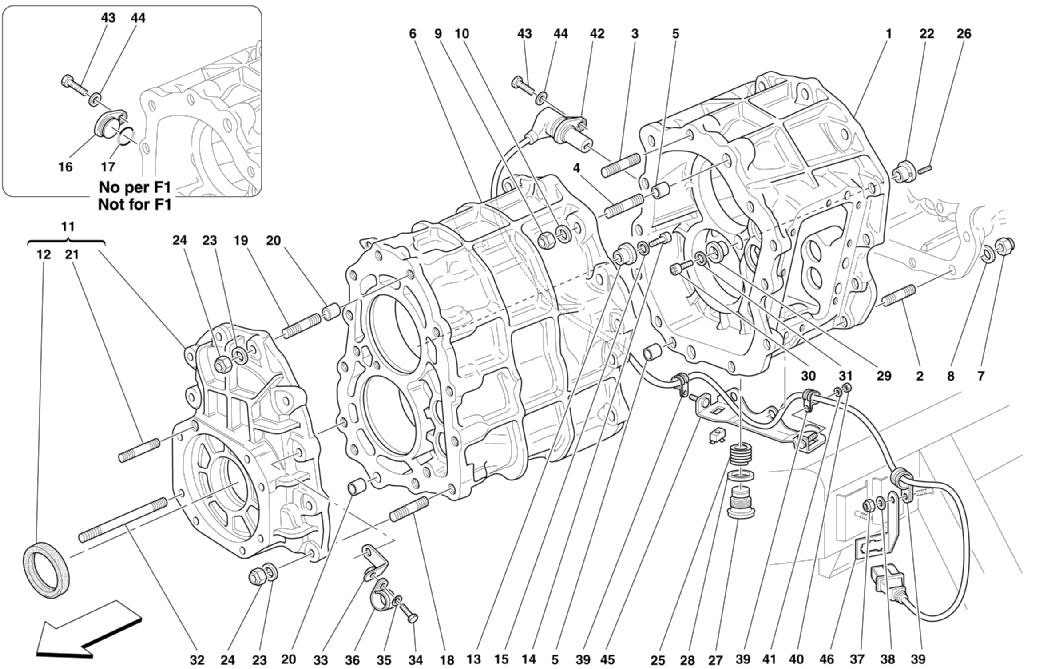

GEARBOX

Go to Split View

GEARBOX

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 179650 *Qty: 1 COMPLETE GEARBOX ASSEMBLY $8,682.99
Location: 1 Prev | Next Part: 189790 *Qty: 1 GEAR BOX 3rd ELEMENT -With the complete gearbox 179650 Call
Location: 2 Prev | Next Part: 13543524 *Qty: 4 STUD $0.95
Location: 3 Prev | Next Part: 13543524 *Qty: 11 STUD $0.95
Location: 4 Prev | Next Part: 13543624 *Qty: 2 STUD $0.90
Location: 5 Prev | Next Part: 102704 *Qty: 2 CENTERING DOWEL $2.18
Location: 6 Prev | Next Part: 189712 *Qty: 1 GEAR BOX 2nd ELEMENT -With the complete gearbox 179650 Call
Location: 7 Prev | Next Part: 16100812 *Qty: 13 NUT $0.90
Location: 8 Prev | Next Part: 12601374 *Qty: 13 WASHER $0.90
Location: 9 Prev | Next Part: 16100812 *Qty: 13 NUT $0.90
Location: 10 Prev | Next Part: 12601374 *Qty: 13 WASHER $0.90
Location: 11 Prev | Next Part: 185933 *Qty: 1 COMPLETE GEAR BOX 1st ELEMENT Call
Location: 12 Prev | Next Part: 172363 *Qty: 1 GASKET $12.04
Location: 13 Prev | Next Part: 131757 *Qty: 1 BUSHING $14.34
Location: 14 Prev | Next Part: 14305720 *Qty: 1 SCREW Superseded
Location: 15 Prev | Next Part: 10569273 *Qty: 1 WASHER $0.90
Location: 16 Prev | Next Part: 185721 *Qty: 1 PLUG -Not for F1 $6.70
Location: 17 Prev | Next Part: 14453481 *Qty: 1 O.R. GASKET -Not for F1 $2.62
Location: 18 Prev | Next Part: 13543424 *Qty: 8 STUD $0.90
Location: 19 Prev | Next Part: 13543624 *Qty: 2 STUD $0.90
Location: 20 Prev | Next Part: 102704 *Qty: 2 CENTERING DOWEL $2.18
Location: 21 Prev | Next Part: 13546334 *Qty: 3 STUD $1.25
Location: 22 Prev | Next Part: 157010 *Qty: 1 BUSHING $10.79
Location: 23 Prev | Next Part: 12601374 *Qty: 10 WASHER $0.90
Location: 24 Prev | Next Part: 16100814 *Qty: 10 NUT $0.90
Location: 25 Prev | Next Part: 112254 *Qty: 1 THREADED INSERT $5.06
Location: 26 Prev | Next Part: 14159470 *Qty: 1 PIN $6.84
Location: 27 Prev | Next Part: 183962 *Qty: 1 OIL OUTLET PLUG $23.34
Location: 28 Prev | Next Part: 10263460 *Qty: 1 GASKET Superseded
Location: 29 Prev | Next Part: 157009 *Qty: 1 BUSHING $9.05
Location: 30 Prev | Next Part: 14305720 *Qty: 1 SCREW Superseded
Location: 31 Prev | Next Part: 10569274 *Qty: 1 WASHER Superseded
Location: 32 Prev | Next Part: 13547334 *Qty: 5 STUD $9.14
Location: 33 Prev | Next Part: 142060 *Qty: 1 BRACKET -Valid for F1 $8.33
Location: 34 Prev | Next Part: 10902024 *Qty: 1 SCREW -Valid for F1 $0.90
Location: 35 Prev | Next Part: 14447024 *Qty: 1 WASHER -Valid for F1 $0.90
Location: 36 Prev | Next Part: 10441690 *Qty: 1 BRACKET WITH SHEATH -Valid for F1 $0.90
Location: 37 Prev | Next Part: 102741 *Qty: 1 NUT -Valid for F1 $0.90
Location: 38 Prev | Next Part: 10519424 *Qty: 1 WASHER -Valid for F1 Call
Location: 39 Prev | Next Part: 10441990 *Qty: 3 BRACKET WITH SHEATH -Valid for F1 $0.95
Location: 40 Prev | Next Part: 102948 *Qty: 2 NUT -Valid for F1 $0.90
Location: 41 Prev | Next Part: 10519424 *Qty: 2 WASHER -Valid for F1 Call
Location: 42 Prev | Next Part: 168729 *Qty: 1 ELECTRO-MAGNETIC SENSOR -Valid for F1 $275.85
Location: 43 Prev | Next Part: 10902224 *Qty: 1 SCREW $0.90
Location: 44 Prev | Next Part: 11194377 *Qty: 1 WASHER $0.90
Location: 45 Prev | Next Part: 169464 *Qty: 1 FRONT BRACKET -Not for F1 $18.82
Location: 45 Prev | Next Part: 186690 *Qty: 1 FRONT BRACKET -Valid for F1 -Valid till stock exhaustion $52.65
Location: 45 Prev | Next Part: 194807 *Qty: 1 FRONT BRACKET -Valid for F1 -Valid after stock exhaustion of 186690 $53.34
Location: 46 Prev | Next Part: 174513 *Qty: 1 CONNECTOR FIXING BRACKET -Valid for F1 -Not as spare part -Replaced by 203766 $8.54
Location: 46 Prev | Next Part: 203766 *Qty: 1 CONNECTOR FIXING BRACKET -Valid for F1 $5.40

* Quantity shown indicates the number of pieces used in the diagram.
