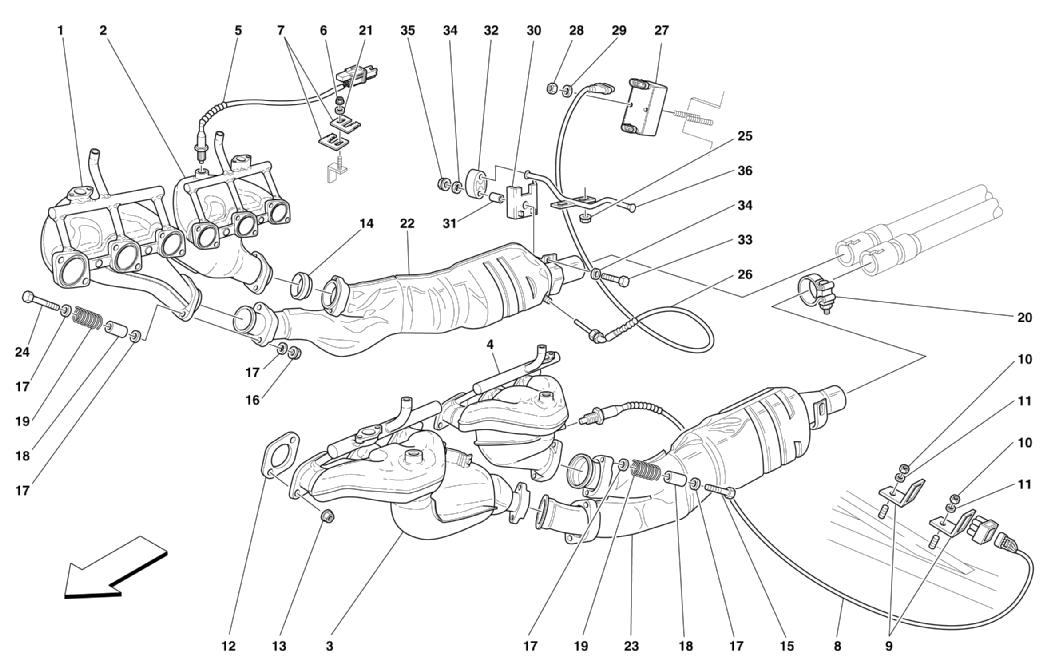

FRONT EXHAUST SYSTEM

Go to Split View

FRONT EXHAUST SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 189758 *Qty: 1 R.H. FRONT EXHAUST MANIFOLD $4,528.92
Location: 2 Prev | Next Part: 190294 *Qty: 1 R.H. REAR EXHAUST MANIFOLD -Valid for GD $3,166.33
Location: 2 Prev | Next Part: 189760 *Qty: 1 R.H. REAR EXHAUST MANIFOLD -Not for GD $3,957.94
Location: 3 Prev | Next Part: 189759 *Qty: 1 L.H. FRONT EXHAUST MANIFOLD $4,528.92
Location: 4 Prev | Next Part: 189761 *Qty: 1 L.H. REAR EXHAUST MANIFOLD $3,957.94
Location: 5 Prev | Next Part: 187587 *Qty: 2 FRONT LAMBDA FEELER -For rear side head $281.99
Location: 5 Prev | Next Part: 182837 *Qty: 2 FRONT LAMBDA FEELER -For front side head $240.00
Location: 6 Prev | Next Part: 62790300 *Qty: 2 NUT $0.90
Location: 7 Prev | Next Part: 175856 *Qty: 4 CONNECTOR FIXING BRACKET $3.43
Location: 8 Prev | Next Part: 187586 *Qty: 2 REAR LAMBDA FEELER -For rear side head $264.74
Location: 8 Prev | Next Part: 180915 *Qty: 2 REAR LAMBDA FEELER -For front side head $175.00
Location: 9 Prev | Next Part: 185408 *Qty: 4 CONNECTOR FIXING BRACKET $3.29
Location: 10 Prev | Next Part: 102741 *Qty: 4 NUT $0.90
Location: 11 Prev | Next Part: 14499324 *Qty: 4 WASHER Superseded
Location: 12 Prev | Next Part: 143408 *Qty: 12 GASKET $22.34
Location: 13 Prev | Next Part: 138392 *Qty: 24 NUT $2.44
Location: 14 Prev | Next Part: 154981 *Qty: 4 GASKET $13.53
Location: 15 Prev | Next Part: 16045024 *Qty: 2 SCREW $0.99
Location: 16 Prev | Next Part: 114748 *Qty: 8 NUT $0.90
Location: 17 Prev | Next Part: 128010 *Qty: 24 WASHER $3.43
Location: 18 Prev | Next Part: 114749 *Qty: 8 SPACER $1.30
Location: 19 Prev | Next Part: 111743 *Qty: 8 SPRING Call
Location: 20 Prev | Next Part: 170541 *Qty: 2 CLAMP $26.11
Location: 21 Prev | Next Part: 12642877 *Qty: 2 WASHER $0.90
Location: 22 Prev | Next Part: 185647 *Qty: 1 R.H. CATALYST $5,395.61
Location: 23 Prev | Next Part: 185648 *Qty: 1 L.H. CATALYST $5,395.61
Location: 24 Prev | Next Part: 16045124 *Qty: 6 SCREW $3.44
Location: 25 Prev | Next Part: 14058519 *Qty: 2 NUT $0.90
Location: 26 Prev | Next Part: 174674 *Qty: 2 THERMOCOUPLE $294.45
Location: 27 Prev | Next Part: 179278 *Qty: 2 CONTROL STATION $299.00
Location: 28 Prev | Next Part: 62790300 *Qty: 4 NUT $0.90
Location: 29 Prev | Next Part: 10519224 *Qty: 4 WASHER $0.90
Location: 30 Prev | Next Part: 170023 *Qty: 1 R. H. PAD PROTECTION $9.46
Location: 30 Prev | Next Part: 170024 *Qty: 1 L. H. PAD PROTECTION $9.46
Location: 31 Prev | Next Part: 154016 *Qty: 2 SPACER $4.59
Location: 32 Prev | Next Part: 154564 *Qty: 2 PAD Call
Location: 33 Prev | Next Part: 16287524 *Qty: 2 SCREW $1.00
Location: 34 Prev | Next Part: 12642078 *Qty: 4 WASHER $0.90
Location: 35 Prev | Next Part: 14058519 *Qty: 2 NUT $0.90
Location: 36 Prev | Next Part: 168149 *Qty: 1 CENTRAL SHIELD SUPPORTING CATALYSTS $65.90

* Quantity shown indicates the number of pieces used in the diagram.
