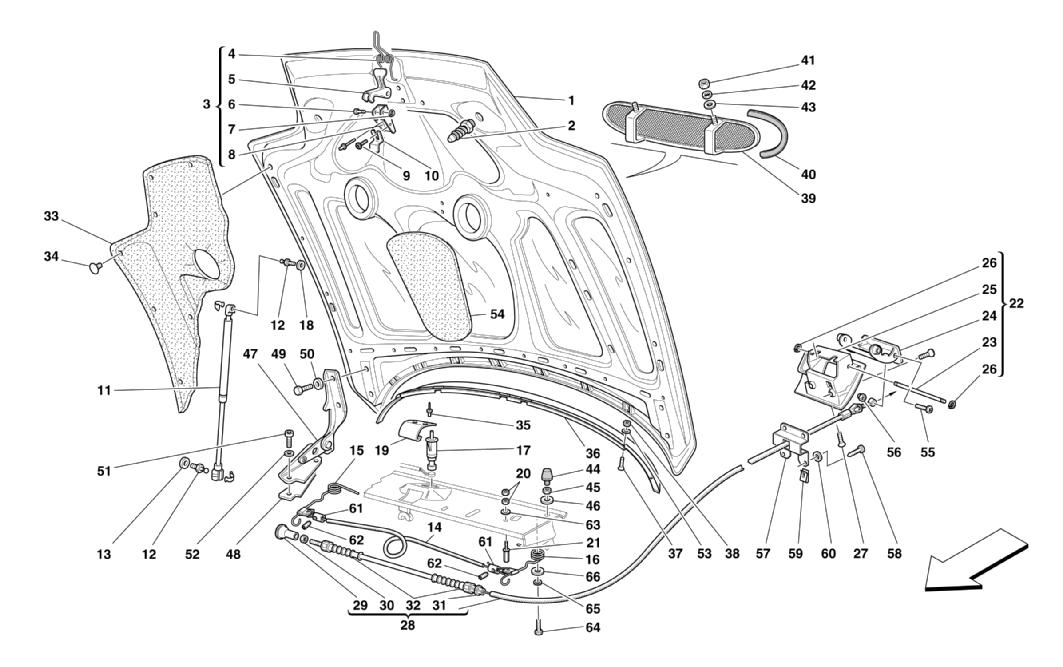

ENGINE BONNET

Go to Split View

ENGINE BONNET

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66080000 *Qty: 1 FRONT HOOD BONNET $15,097.00
Location: 2 Prev | Next Part: 65372800 *Qty: 2 BONNET LOCK $296.12
Location: 3 Prev | Next Part: 65120000 *Qty: 1 COMPLETE SAFETY HOOK FOR BONNET $399.38
Location: 4 Prev | Next Part: 63219200 *Qty: 1 SPRING $6.05
Location: 5 Prev | Next Part: 65119900 *Qty: 1 SAFETY HOOK $230.85
Location: 6 Prev | Next Part: 63219100 *Qty: 1 PIN $8.22
Location: 7 Prev | Next Part: 11088074 *Qty: 1 FLEXIBLE RING Call
Location: 8 Prev | Next Part: 63218000 *Qty: 1 RETAINER $9.90
Location: 9 Prev | Next Part: 62940900 *Qty: 2 SCREW $1.85
Location: 10 Prev | Next Part: 63885000 *Qty: 1 BRACKET $2.68
Location: 11 Prev | Next Part: 64577300 *Qty: 2 GAS SPRING $52.35
Location: 12 Prev | Next Part: 63402800 *Qty: 4 PIN $2.81
Location: 13 Prev | Next Part: 12643724 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: 63883500 *Qty: 1 HOOD SAFETY CABLE $146.87
Location: 15 Prev | Next Part: 63883600 *Qty: 1 R.H. SPRING $146.66
Location: 16 Prev | Next Part: 63883700 *Qty: 1 L.H. SPRING $146.66
Location: 17 Prev | Next Part: 179697 *Qty: 1 SWITCH Call
Location: 18 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 19 Prev | Next Part: 63883200 *Qty: 1 PLATE $10.47
Location: 20 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 21 Prev | Next Part: 63882800 *Qty: 2 NUT FOR END OF STROKE $6.59
Location: 22 Prev | Next Part: 66089000 *Qty: 1 HOOD HANDLE ASSEMBLY $230.31
Location: 23 Prev | Next Part: 63726200 *Qty: 1 PIN Call
Location: 24 Prev | Next Part: 65278100 *Qty: 1 INNER DEVICE FOR HOOD OPENING ON DASHBOARD Superseded
Location: 25 Prev | Next Part: 66286400 *Qty: 1 HANDLE BOX $201.98
Location: 26 Prev | Next Part: 11087576 *Qty: 2 FLEXIBLE RING $0.90
Location: 27 Prev | Next Part: 15687375 *Qty: 2 SCREW $0.90
Location: 28 Prev | Next Part: 65832400 *Qty: 1 INNER DEVICE FOR HOOD OPENING $374.53
Location: 29 Prev | Next Part: 63206500 *Qty: 1 KNOB FOR ADJUSTMENT $15.80
Location: 30 Prev | Next Part: 15896470 *Qty: 1 NUT $0.90
Location: 31 Prev | Next Part: 63206400 *Qty: 1 STOP PIN $11.98
Location: 32 Prev | Next Part: 63895000 *Qty: 2 RUBBER BOOT Call
Location: 33 Prev | Next Part: 66402400 *Qty: 1 FRONT HOOD INSULATION Call
Location: 34 Prev | Next Part: 62797500 *Qty: 32 BUTTON $0.90
Location: 35 Prev | Next Part: 60677000 *Qty: 2 RIVET $0.90
Location: 36 Prev | Next Part: 64948100 *Qty: 1 WINDSHIELD WIPER COVERING MOULDING $184.85
Location: 37 Prev | Next Part: 65366700 *Qty: 9 SCREW $1.26
Location: 38 Prev | Next Part: 15896472 *Qty: 9 NUT $0.90
Location: 39 Prev | Next Part: 66084000 *Qty: 1 GRILLE FOR HOOD AIR INTAKE $76.64
Location: 40 Prev | Next Part: 66083900 *Qty: 1 AIR INTAKE GASKET $40.89
Location: 41 Prev | Next Part: 15896470 *Qty: 2 NUT $0.90
Location: 42 Prev | Next Part: 12601174 *Qty: 2 WASHER $0.90
Location: 43 Prev | Next Part: 12624101 *Qty: 2 WASHER $0.90
Location: 44 Prev | Next Part: 64577100 *Qty: 2 PAD FOR HOOD LIMIT STOP $4.03
Location: 45 Prev | Next Part: 15896377 *Qty: 2 NUT $2.24
Location: 46 Prev | Next Part: 14496678 *Qty: 2 WASHER $0.90
Location: 47 Prev | Next Part: 64578200 *Qty: 1 COMPLETE L.H. HINGE $516.28
Location: 47 Prev | Next Part: 64578100 *Qty: 1 COMPLETE R.H. HINGE $516.28
Location: 48 Prev | Next Part: 65217400 *Qty: 2 THICKNESS $9.28
Location: 49 Prev | Next Part: 16135613 *Qty: 4 SCREW $2.73
Location: 50 Prev | Next Part: 13578311 *Qty: 4 WASHER $1.50
Location: 51 Prev | Next Part: 10902124 *Qty: 4 SCREW $0.90
Location: 52 Prev | Next Part: 14496424 *Qty: 4 WASHER Superseded
Location: 53 Prev | Next Part: 12601177 *Qty: 9 WASHER $0.90
Location: 54 Prev | Next Part: 65409700 *Qty: 1 BI-ADHESIVE INSULATION Call
Location: 55 Prev | Next Part: 13309477 *Qty: 1 SCREW $0.90
Location: 56 Prev | Next Part: 62790300 *Qty: 1 NUT $0.90
Location: 57 Prev | Next Part: 64836000 *Qty: 1 BRACKET Call
Location: 58 Prev | Next Part: 15644175 *Qty: 4 SCREW $0.90
Location: 59 Prev | Next Part: 14371971 *Qty: 4 BRACKET $0.90
Location: 60 Prev | Next Part: 12642878 *Qty: 4 WASHER $0.90
Location: 61 Prev | Next Part: 60276607 *Qty: 2 CONNECTION $41.57
Location: 62 Prev | Next Part: 60276805 *Qty: 2 DOWEL $1.81
Location: 63 Prev | Next Part: 12643778 *Qty: 2 WASHER $0.90
Location: 64 Prev | Next Part: 62797400 *Qty: 2 SCREW WITH WASHER $0.90
Location: 65 Prev | Next Part: 12643724 *Qty: 2 WASHER $0.90
Location: 66 Prev | Next Part: 12648504 *Qty: 2 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
