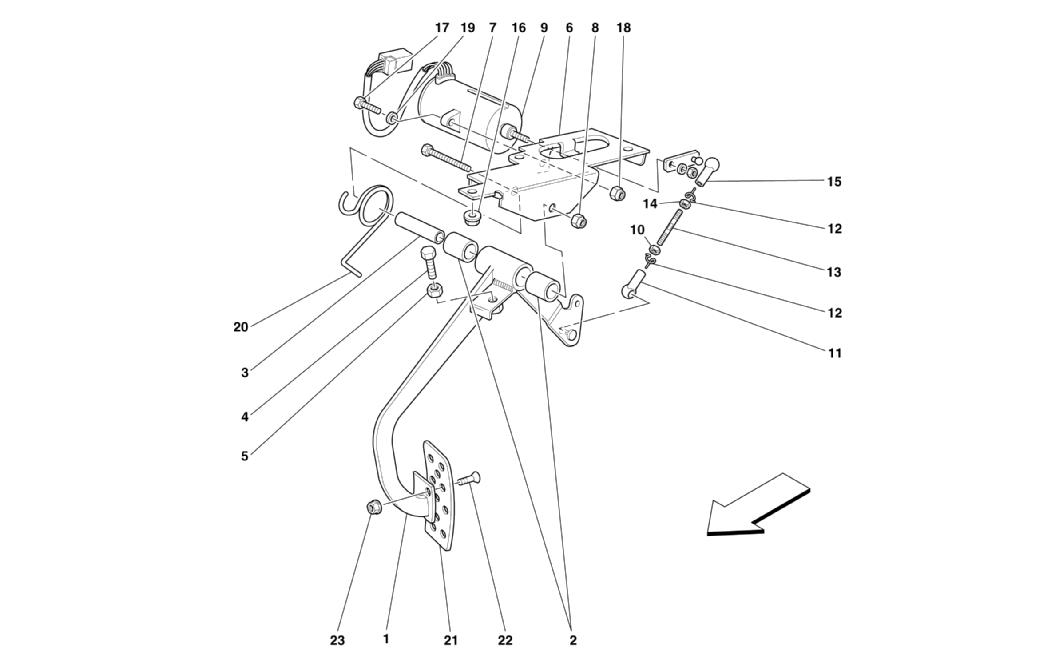

ELECTRONIC ACCELERATOR PEDAL

Go to Split View

ELECTRONIC ACCELERATOR PEDAL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 192617 *Qty: 1 ACCELERATOR PEDAL -Valid till stock exhaustion $580.94
Location: 1 Prev | Next Part: 202747 *Qty: 1 ACCELERATOR PEDAL $284.82
Location: 2 Prev | Next Part: 101677 *Qty: 2 ROLLER BEARING $2.43
Location: 3 Prev | Next Part: 138219 *Qty: 1 CARRIER BUSH $118.05
Location: 4 Prev | Next Part: 16043621 *Qty: 1 SCREW $0.90
Location: 5 Prev | Next Part: 16102314 *Qty: 1 NUT $0.90
Location: 6 Prev | Next Part: 197108 *Qty: 1 ACCELERATOR SUPPORT Call
Location: 6 Prev | Next Part: 188539 *Qty: 1 ACCELERATOR SUPPORT -Not as spare part now -Replaced by 197108 Call
Location: 7 Prev | Next Part: 10903621 *Qty: 1 SCREW $0.90
Location: 8 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 9 Prev | Next Part: 170038 *Qty: 1 ACCELERATOR PEDAL POTENTIOMETER $463.56
Location: 10 Prev | Next Part: 15896470 *Qty: 1 NUT $0.90
Location: 11 Prev | Next Part: 173999 *Qty: 1 BALL JOINT HEAD $8.40
Location: 12 Prev | Next Part: 174001 *Qty: 2 CLIP $0.90
Location: 13 Prev | Next Part: 182987 *Qty: 1 THREADED TIE ROD $6.11
Location: 14 Prev | Next Part: 105586 *Qty: 1 L.H. THREADED NUT $5.54
Location: 15 Prev | Next Part: 174000 *Qty: 1 BALL JOINT HEAD $8.32
Location: 16 Prev | Next Part: 104030 *Qty: 3 NUT $0.90
Location: 17 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 18 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 19 Prev | Next Part: 10519424 *Qty: 2 WASHER Call
Location: 20 Prev | Next Part: 175351 *Qty: 1 SPRING $4.77
Location: 21 Prev | Next Part: 164037 *Qty: 1 ACCELERATOR PEDAL PLATE $70.20
Location: 22 Prev | Next Part: 14440734 *Qty: 2 SCREW $0.90
Location: 23 Prev | Next Part: 14058311 *Qty: 2 NUT $0.90

* Quantity shown indicates the number of pieces used in the diagram.
