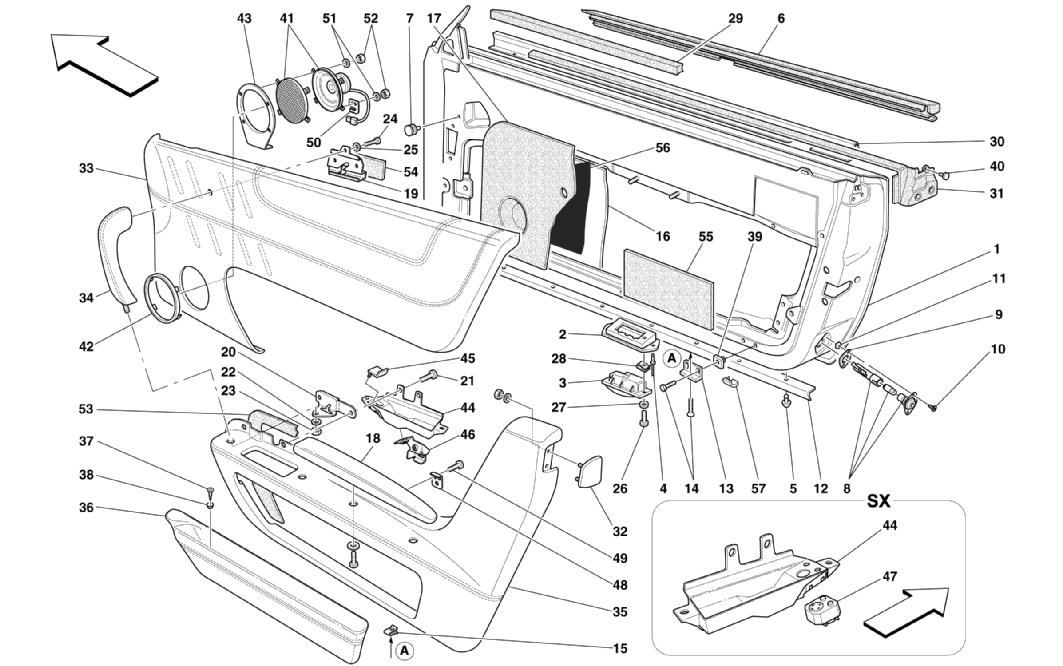

DOORS - FRAMEWORKS AND COVERINGS

Go to Split View

DOORS - FRAMEWORKS AND COVERINGS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 34 Prev | Next Part: 661637.. *Qty: 1 L.H. HANDLE LINING Call
Location: 1 Prev | Next Part: 66086400 *Qty: 1 R.H. DOOR FRAME $22,073.50
Location: 1 Prev | Next Part: 66086900 *Qty: 1 L.H. DOOR FRAME Call
Location: 2 Prev | Next Part: 60842000 *Qty: 2 DOOR LAMP BOX $5.30
Location: 3 Prev | Next Part: 65088400 *Qty: 2 UNDER DOOR LAMP $42.83
Location: 4 Prev | Next Part: 60643400 *Qty: 4 RIVET $0.90
Location: 5 Prev | Next Part: 62764000 *Qty: 16 SPHERICAL HEAD RIVET $0.90
Location: 6 Prev | Next Part: 64715800 *Qty: 1 R.H. OUTER GLASS SCRAPER Call
Location: 6 Prev | Next Part: 64715900 *Qty: 1 L.H. OUTER GLASS SCRAPER $152.83
Location: 7 Prev | Next Part: 64580400 *Qty: 12 BLOCK $0.90
Location: 8 Prev | Next Part: 184786 *Qty: 2 OPENING DOOR LAMP WITH BULB $20.29
Location: 9 Prev | Next Part: 140576 *Qty: 2 GASKET $15.70
Location: 10 Prev | Next Part: 15901475 *Qty: 4 SCREW $0.90
Location: 11 Prev | Next Part: 14115580 *Qty: 4 BLOCK $0.90
Location: 12 Prev | Next Part: 63758200 *Qty: 1 R.H. OUTER LOWER GASKET $45.51
Location: 12 Prev | Next Part: 672831.. *Qty: 2 SEAT BACK CENTRAL Call
Location: 12 Prev | Next Part: 63488300 *Qty: 1 L.H. OUTER LOWER GASKET $45.90
Location: 13 Prev | Next Part: 64592600 *Qty: 6 BRACKET $6.75
Location: 14 Prev | Next Part: 15957201 *Qty: 18 SCREW $0.90
Location: 15 Prev | Next Part: 14115885 *Qty: 12 BLOCK $0.90
Location: 16 Prev | Next Part: 65059500 *Qty: 2 WATER PROTECTION CLOTH FOR SWITCH Call
Location: 17 Prev | Next Part: 66085500 *Qty: 1 R.H. WATER PROTECTION CLOTH $43.74
Location: 17 Prev | Next Part: 66085600 *Qty: 1 L.H. WATER PROTECTION CLOTH $43.74
Location: 18 Prev | Next Part: 670881.. *Qty: 1 R.H. DOOR ARM-REST Call
Location: 18 Prev | Next Part: 670882.. *Qty: 1 L.H. DOOR ARM-REST Call
Location: 19 Prev | Next Part: 66177200 *Qty: 1 R.H. UPPER BRACKET FOR HANDLE MOULDING FIXING $54.70
Location: 19 Prev | Next Part: 66177300 *Qty: 1 L.H. UPPER BRACKET FOR HANDLE MOULDING FIXING $54.70
Location: 20 Prev | Next Part: 66163800 *Qty: 1 R.H. BRACKET $30.85
Location: 20 Prev | Next Part: 66163900 *Qty: 1 L.H. BRACKET $30.85
Location: 21 Prev | Next Part: 13274014 *Qty: 4 SCREW $0.90
Location: 22 Prev | Next Part: 12646601 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 14058421 *Qty: 2 NUT $1.44
Location: 24 Prev | Next Part: 14304621 *Qty: 2 SCREW $0.90
Location: 25 Prev | Next Part: 12624101 *Qty: 2 WASHER $0.90
Location: 26 Prev | Next Part: 15901575 *Qty: 4 SCREW $0.90
Location: 27 Prev | Next Part: 62767100 *Qty: 4 WASHER $0.90
Location: 28 Prev | Next Part: 62767500 *Qty: 4 CLIP $0.90
Location: 29 Prev | Next Part: 65196100 *Qty: 1 R.H. GASKET $4.36
Location: 29 Prev | Next Part: 65196200 *Qty: 1 L.H. GASKET $4.36
Location: 30 Prev | Next Part: 66288400 *Qty: 1 R.H. GLASS SCRAPER Call
Location: 30 Prev | Next Part: 66288500 *Qty: 1 L.H. GLASS SCRAPER Call
Location: 31 Prev | Next Part: 64905000 *Qty: 1 R.H. GASKET $197.26
Location: 31 Prev | Next Part: 64905100 *Qty: 1 L.H. GASKET $197.26
Location: 32 Prev | Next Part: 645912.. *Qty: 1 R.H. PANEL SEAL Call
Location: 32 Prev | Next Part: 645911.. *Qty: 1 L.H. PANEL SEAL Call
Location: 33 Prev | Next Part: 661600.. *Qty: 1 R.H. UPPER PANEL
-Not for RHD-
Call
Location: 33 Prev | Next Part: 665337.. *Qty: 1 R.H. LINING
-Not for RHD-
Call
Location: 33 Prev | Next Part: 666354.. *Qty: 1 R.H. UPPER PANEL
-Valid for RHD-
Call
Location: 33 Prev | Next Part: 666360.. *Qty: 1 R.H. LINING
-Valid for RHD-
Call
Location: 33 Prev | Next Part: 661601.. *Qty: 1 L.H. UPPER PANEL
-Not for RHD-
Call
Location: 33 Prev | Next Part: 666355.. *Qty: 1 L.H. UPPER PANEL
-Valid for RHD-
Call
Location: 33 Prev | Next Part: 666361.. *Qty: 1 L.H. LINING
-Valid for RHD-
Call
Location: 34 Prev | Next Part: 661632.. *Qty: 1 R.H. HANDLE MOULDING Call
Location: 34 Prev | Next Part: 661636.. *Qty: 1 R.H. HANDLE LINING Call
Location: 34 Prev | Next Part: 661633.. *Qty: 1 L.H. HANDLE MOULDING Call
Location: 35 Prev | Next Part: 661610.. *Qty: 1 R.H. LOWER PANEL
-Not for RHD-
Call
Location: 35 Prev | Next Part: 661618.. *Qty: 1 R.H. LINING
-Not for RHD-
Call
Location: 35 Prev | Next Part: 666366.. *Qty: 1 R.H. LOWER PANEL
-Valid for RHD-
Call
Location: 35 Prev | Next Part: 666374.. *Qty: 1 R.H. LINING
-Valid for RHD-
Call
Location: 35 Prev | Next Part: 66836300 *Qty: 1 R.H. LOWER PANEL
-Carbon-
-Optional-
-Not for RHD-
Call
Location: 35 Prev | Next Part: 66837300 *Qty: 1 R.H. LOWER PANEL
-Carbon-
-Optional-
-Valid for RHD-
Call
Location: 35 Prev | Next Part: 661611.. *Qty: 1 L.H. LOWER PANEL
-Not for RHD-
Call
Location: 35 Prev | Next Part: 661619.. *Qty: 1 L.H. LINING
-Not for RHD-
Call
Location: 35 Prev | Next Part: 666367.. *Qty: 1 L.H. LOWER PANEL
-Valid for RHD-
Call
Location: 35 Prev | Next Part: 666375.. *Qty: 1 L.H. LINING
-Valid for RHD-
Call
Location: 35 Prev | Next Part: 66836400 *Qty: 1 L.H. LOWER PANEL
-Carbon-
-Optional-
-Not for RHD-
Call
Location: 35 Prev | Next Part: 66837400 *Qty: 1 L.H. LOWER PANEL
-Carbon-
-Optional-
-Valid for RHD-
Call
Location: 36 Prev | Next Part: 661622.. *Qty: 1 R.H. POCKET Call
Location: 36 Prev | Next Part: 661626.. *Qty: 1 R.H. LINING Call
Location: 36 Prev | Next Part: 66836700 *Qty: 1 R.H. POCKET
-Carbon-
-Optional-
-Not as spare part-
Call
Location: 36 Prev | Next Part: 661623.. *Qty: 1 L.H. POCKET Call
Location: 36 Prev | Next Part: 661627.. *Qty: 1 L.H. LINING Call
Location: 36 Prev | Next Part: 66836800 *Qty: 1 L.H. POCKET
-Carbon-
-Optional-
-Not as spare part-
Call
Location: 37 Prev | Next Part: 15915977 *Qty: 8 SCREW $0.90
Location: 38 Prev | Next Part: 13337347 *Qty: 8 WASHER $3.51
Location: 39 Prev | Next Part: 14115885 *Qty: 12 BLOCK $0.90
Location: 40 Prev | Next Part: 14592587 *Qty: 6 FIXING BUTTON $0.90
Location: 41 Prev | Next Part: 183364 *Qty: 2 LOUD SPEAKER WOOFER $86.01
Location: 41 Prev | Next Part: 184676 *Qty: 2 LOUD SPEAKER WOOFER
-Valid for high power HI FI-
-Optional-
$173.20
Location: 42 Prev | Next Part: 66285000 *Qty: 2 RING NUT MOULDING $110.79
Location: 43 Prev | Next Part: 66286500 *Qty: 2 LOUD SPEAKER SUPPORTING BRACKET $64.38
Location: 44 Prev | Next Part: 66220900 *Qty: 1 R.H. HANDLE PLATE $198.82
Location: 44 Prev | Next Part: 66221000 *Qty: 1 L.H. HANDLE PLATE $106.60
Location: 45 Prev | Next Part: 66639000 *Qty: 1 MOULDING BRACKET $26.41
Location: 46 Prev | Next Part: 66177900 *Qty: 1 R.H. BRACKET FOR HANDLE FIXING $30.97
Location: 46 Prev | Next Part: 66178000 *Qty: 1 L.H. BRACKET FOR HANDLE FIXING $30.97
Location: 47 Prev | Next Part: 191046 *Qty: 1 SWITCH FOR OUTER REARVIEW $138.32
Location: 48 Prev | Next Part: 66177800 *Qty: 6 BRACKET FOR POCKET $26.29
Location: 49 Prev | Next Part: 15782601 *Qty: 12 SCREW $0.90
Location: 50 Prev | Next Part: 175856 *Qty: 2 CONNECTOR FIXING BRACKET $2.37
Location: 51 Prev | Next Part: 12642801 *Qty: 8 WASHER $0.90
Location: 52 Prev | Next Part: 10794014 *Qty: 8 NUT $0.90
Location: 53 Prev | Next Part: 67124800 *Qty: 1 SPONGE
-1200 x 50mm-
$8.68
Location: 54 Prev | Next Part: 67124900 *Qty: 1 SPONGE
-150 x 50mm-
$8.19
Location: 55 Prev | Next Part: 67125000 *Qty: 1 SPONGE
-270 x 150mm-
$4.49
Location: 56 Prev | Next Part: 67668900 *Qty: 2 WATER PROTECTION CLOTH $13.38
Location: 57 Prev | Next Part: 67111400 *Qty: 4 RUBBER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
