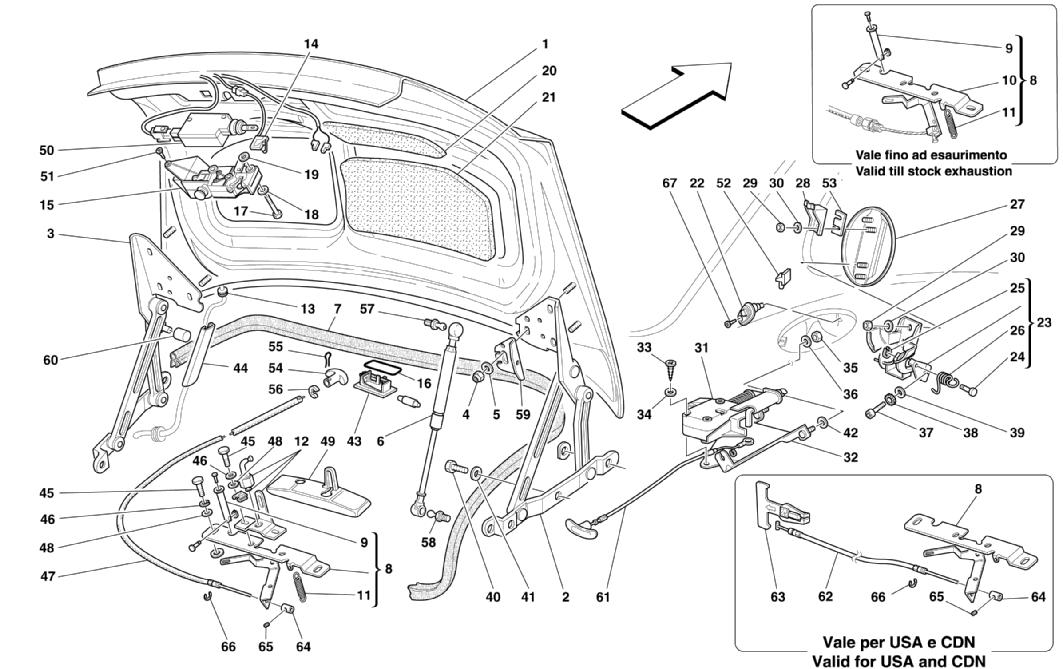

BOOT DOOR AND PETROL COVER

Go to Split View

BOOT DOOR AND PETROL COVER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65361400 *Qty: 1 REAR HOOD BONNET $3,599.60
Location: 2 Prev | Next Part: 63143000 *Qty: 1 R.H. LID HINGE $584.06
Location: 3 Prev | Next Part: 63143100 *Qty: 1 L.H. LID HINGE $584.06
Location: 4 Prev | Next Part: 14039614 *Qty: 8 NUT $0.90
Location: 5 Prev | Next Part: 12643724 *Qty: 6 WASHER $0.90
Location: 6 Prev | Next Part: 63701800 *Qty: 2 SHOCK ABSORBER FOR HOOD SUPPORT $61.20
Location: 7 Prev | Next Part: 64576900 *Qty: 1 BONNET GASKET $455.49
Location: 8 Prev | Next Part: 66466000 *Qty: 1 INNER DEVICE FOR HOOD UNLOCK -Valid for USA and CDN -For the cars not USA and CDN valid after stock exhaustion of 63872300 $36.10
Location: 9 Prev | Next Part: 63709300 *Qty: 1 ROLL $16.47
Location: 10 Prev | Next Part: 63709100 *Qty: 1 PLATE -Valid till stock exhaustion $12.53
Location: 11 Prev | Next Part: 63709500 *Qty: 1 SPRING $3.03
Location: 12 Prev | Next Part: 63143600 *Qty: 1 STRIKER $68.33
Location: 13 Prev | Next Part: 10396180 *Qty: 2 CABLE GROMMET $1.33
Location: 14 Prev | Next Part: 173977 *Qty: 1 MICRO-SWITCH $63.90
Location: 15 Prev | Next Part: 63143300 *Qty: 1 BONNET LOCK $233.81
Location: 16 Prev | Next Part: 157872 *Qty: 1 GASKET Call
Location: 17 Prev | Next Part: 10903224 *Qty: 3 SCREW Superseded
Location: 18 Prev | Next Part: 10615474 *Qty: 3 WASHER $0.90
Location: 19 Prev | Next Part: 10519424 *Qty: 3 WASHER Call
Location: 20 Prev | Next Part: 64981300 *Qty: 1 R.H. LOWER INSULATOR $133.98
Location: 20 Prev | Next Part: 64981400 *Qty: 1 L.H. LOWER INSULATOR $133.98
Location: 21 Prev | Next Part: 65369700 *Qty: 1 UPPER R.H. INSULATION $160.62
Location: 21 Prev | Next Part: 65369800 *Qty: 1 UPPER L.H. INSULATION $160.62
Location: 22 Prev | Next Part: 153069 *Qty: 1 SWITCH $7.38
Location: 23 Prev | Next Part: 64575900 *Qty: 1 COMPLETE LID HINGE $75.98
Location: 24 Prev | Next Part: 63196400 *Qty: 1 PIN Call
Location: 25 Prev | Next Part: 11087676 *Qty: 1 FLEXIBLE RING $0.90
Location: 26 Prev | Next Part: 63196500 *Qty: 1 SPRING $101.99
Location: 27 Prev | Next Part: 64575300 *Qty: 1 FUEL INLET LID $76.46
Location: 28 Prev | Next Part: 66679900 *Qty: 1 PLATE $14.05
Location: 29 Prev | Next Part: 13046011 *Qty: 4 NUT $0.90
Location: 30 Prev | Next Part: 13579101 *Qty: 2 WASHER $0.90
Location: 31 Prev | Next Part: 65395900 *Qty: 1 LID ACTUATOR $183.19
Location: 32 Prev | Next Part: 66679800 *Qty: 1 BRACKET $11.66
Location: 33 Prev | Next Part: 15641275 *Qty: 2 SCREW $1.38
Location: 34 Prev | Next Part: 14496277 *Qty: 2 WASHER $1.00
Location: 35 Prev | Next Part: 168698 *Qty: 2 NUT $2.33
Location: 36 Prev | Next Part: 12637824 *Qty: 2 WASHER $0.90
Location: 37 Prev | Next Part: 14304124 *Qty: 2 SCREW $0.90
Location: 38 Prev | Next Part: 12637878 *Qty: 2 WASHER $0.90
Location: 39 Prev | Next Part: 12605274 *Qty: 2 WASHER $0.90
Location: 40 Prev | Next Part: 10902624 *Qty: 3 SCREW -L.h. side $0.90
Location: 40 Prev | Next Part: 10902224 *Qty: 3 SCREW -R.h. side $0.90
Location: 41 Prev | Next Part: 12647624 *Qty: 6 WASHER $0.90
Location: 42 Prev | Next Part: 61529400 *Qty: 2 GASKET $2.41
Location: 43 Prev | Next Part: 139517 *Qty: 1 ROOF LIGHT $16.82
Location: 44 Prev | Next Part: 63887300 *Qty: 1 COVER FOR CABLES $0.90
Location: 45 Prev | Next Part: 10902087 *Qty: 4 SCREW $1.31
Location: 46 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 47 Prev | Next Part: 65248300 *Qty: 1 EMERGENCY CABLE $21.17
Location: 48 Prev | Next Part: 12647624 *Qty: 2 WASHER $0.90
Location: 49 Prev | Next Part: 63861700 *Qty: 1 STRIKER PLATE OVERLAP $72.84
Location: 50 Prev | Next Part: 63191100 *Qty: 1 ACTUATOR $336.31
Location: 51 Prev | Next Part: 15903870 *Qty: 2 SCREW $0.90
Location: 52 Prev | Next Part: 63879900 *Qty: 2 RUBBER PAD $12.00
Location: 53 Prev | Next Part: 66804900 *Qty: 2 SPACER $3.16
Location: 54 Prev | Next Part: 60710900 *Qty: 1 EMERGENCY HANDLE Call
Location: 55 Prev | Next Part: 60711000 *Qty: 1 CLIP $0.90
Location: 56 Prev | Next Part: 11087676 *Qty: 1 FLEXIBLE RING $0.90
Location: 57 Prev | Next Part: 63402800 *Qty: 2 PIN $2.81
Location: 58 Prev | Next Part: 63402800 *Qty: 2 PIN $2.81
Location: 59 Prev | Next Part: 64568700 *Qty: 1 L.H. BRACKET $9.96
Location: 59 Prev | Next Part: 64568600 *Qty: 1 R.H. BRACKET $9.96
Location: 60 Prev | Next Part: 67121100 *Qty: 2 RUBBER $1.81
Location: 61 Prev | Next Part: 66678200 *Qty: 1 FUEL INLET LID SAFETY CABLE $37.11
Location: 62 Prev | Next Part: 186500 *Qty: 1 CABLE FOR HANDLE -Valid for USA and CDN $36.67
Location: 63 Prev | Next Part: 66403900 *Qty: 1 HANDLE FOR SAFETY CHILDREN -Valid for USA and CDN $40.59
Location: 64 Prev | Next Part: 60276607 *Qty: 2 CONNECTION -Valid for USA and CDN -Valid for USA and CDN -Q.ty 1 for cars not USA and CDN with unlock device 66466000 ref. 8 $42.87
Location: 65 Prev | Next Part: 60276805 *Qty: 2 DOWEL -Valid for USA and CDN -Q.ty 1 for cars not USA and CDN with unlock device 66466000 ref. 8 $1.81
Location: 66 Prev | Next Part: 11087676 *Qty: 2 FLEXIBLE RING -Valid for USA and CDN -Valid for USA and CDN -Q.ty 1 for cars not USA and CDN with unlock device 66466000 ref. 8 $0.90
Location: 67 Prev | Next Part: 15916977 *Qty: 1 SCREW $1.31

* Quantity shown indicates the number of pieces used in the diagram.
