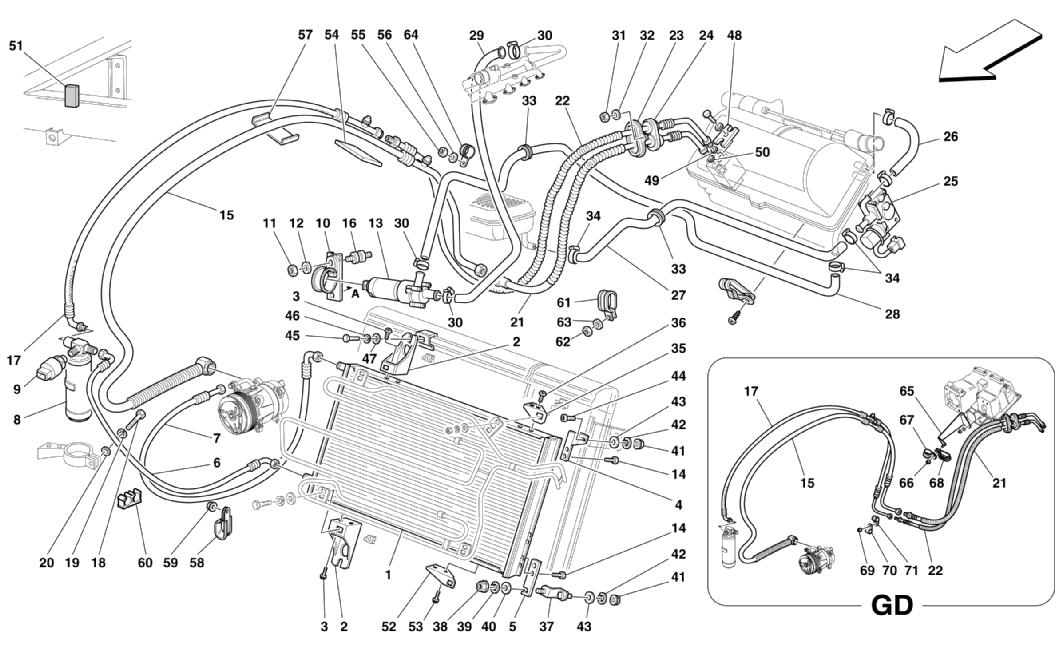

AIR CONDITIONING SYSTEM

Go to Split View

AIR CONDITIONING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 165395 *Qty: 1 A.C. CONDENSER $811.69
Location: 2 Prev | Next Part: 168481 *Qty: 2 R.H. BRACKET A.C. CONDENSER SUPPORT $82.36
Location: 3 Prev | Next Part: 165136 *Qty: 4 SCREW $0.90
Location: 4 Prev | Next Part: 165561 *Qty: 1 L.H. UPPER BRACKET $17.19
Location: 5 Prev | Next Part: 168068 *Qty: 1 L.H. LOWER BRACKET $16.74
Location: 6 Prev | Next Part: 66404300 *Qty: 1 PIPE FROM CONDENSER TO DEHYDRATOR FILTER $151.08
Location: 7 Prev | Next Part: 66404200 *Qty: 1 PIPE FROM COMPRESSOR TO CONDENSER $126.21
Location: 8 Prev | Next Part: 64894200 *Qty: 1 DEHYDRATOR FILTER $156.97
Location: 9 Prev | Next Part: 66374400 *Qty: 1 A.C. PRESSOSTAT $241.11
Location: 10 Prev | Next Part: 63994900 *Qty: 1 COMPLETE BRACKET $12.85
Location: 11 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 12 Prev | Next Part: 10571570 *Qty: 2 WASHER $0.90
Location: 13 Prev | Next Part: 65460300 *Qty: 1 WATER PUMP $270.53
Location: 14 Prev | Next Part: 165137 *Qty: 4 SCREW $1.26
Location: 15 Prev | Next Part: 67083700 *Qty: 1 PIPE FROM HOSE TO COMPRESSOR -Valid for GD $590.26
Location: 15 Prev | Next Part: 65190300 *Qty: 1 PIPE FROM HOSE TO COMPRESSOR -Not for GD $569.42
Location: 16 Prev | Next Part: 142202 *Qty: 2 ANTI-VIBRATION SUPPORT $12.81
Location: 17 Prev | Next Part: 67083800 *Qty: 1 PIPE FROM DEHYDRATOR FILTER TO HOSE -Valid for GD $487.64
Location: 17 Prev | Next Part: 66926400 *Qty: 1 PIPE FROM DEHYDRATOR FILTER TO HOSE -Not for GD $494.82
Location: 18 Prev | Next Part: 10902424 *Qty: 1 SCREW $0.90
Location: 19 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 20 Prev | Next Part: 12643724 *Qty: 1 WASHER $0.90
Location: 21 Prev | Next Part: 64791200 *Qty: 1 HOSE FROM EVAPORATOR TO PIPE -Not for GD $296.28
Location: 21 Prev | Next Part: 65237700 *Qty: 1 HOSE FROM EVAPORATOR TO PIPE -Valid for GD $390.44
Location: 22 Prev | Next Part: 65237800 *Qty: 1 HOSE FROM PIPE TO EVAPORATOR -Valid for GD $348.28
Location: 22 Prev | Next Part: 64791300 *Qty: 1 HOSE FROM PIPE TO EVAPORATOR -Not for GD $273.91
Location: 23 Prev | Next Part: 63961900 *Qty: 1 PIPE-HOLDER FRAME $11.20
Location: 24 Prev | Next Part: 63961800 *Qty: 1 RUBBER PIPE-HOLDER $11.16
Location: 25 Prev | Next Part: 64999000 *Qty: 1 VALVE $287.84
Location: 26 Prev | Next Part: 65201000 *Qty: 1 RETURN PIPE FROM EVAPORATOR TO VALVE -Valid for GD $26.99
Location: 26 Prev | Next Part: 66288900 *Qty: 1 RETURN PIPE FROM EVAPORATOR TO VALVE -Not for GD $34.57
Location: 27 Prev | Next Part: 66397400 *Qty: 1 RETURN PIPE FROM VALVE TO NOURICE -Not for GD $130.06
Location: 27 Prev | Next Part: 65237600 *Qty: 1 RETURN PIPE FROM VALVE TO NOURICE -Valid for GD $69.75
Location: 28 Prev | Next Part: 66288800 *Qty: 1 DELIVERY PIPE FROM PUMP TO EVAPORATOR -Not for GD $161.90
Location: 28 Prev | Next Part: 65237500 *Qty: 1 DELIVERY PIPE FROM PUMP TO EVAPORATOR -Valid for GD $90.25
Location: 29 Prev | Next Part: 65238100 *Qty: 1 DELIVERY PIPE FROM ENGINE TO PUMP -Valid for GD $371.62
Location: 29 Prev | Next Part: 65122300 *Qty: 1 DELIVERY PIPE FROM ENGINE TO PUMP -Not for GD $357.98
Location: 30 Prev | Next Part: 190345 *Qty: 3 SCREW COLLAR $0.90
Location: 31 Prev | Next Part: 169180 *Qty: 2 NUT $0.90
Location: 32 Prev | Next Part: 12638124 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: 10459087 *Qty: 2 CABLE GROMMET Call
Location: 34 Prev | Next Part: 13000490 *Qty: 3 SCREW COLLAR Call
Location: 35 Prev | Next Part: 169463 *Qty: 1 BRACKET $12.08
Location: 36 Prev | Next Part: 165136 *Qty: 4 SCREW $0.90
Location: 37 Prev | Next Part: 156989 *Qty: 1 SMALL PLATE $9.03
Location: 38 Prev | Next Part: 15896214 *Qty: 1 NUT $0.90
Location: 39 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 40 Prev | Next Part: 12643724 *Qty: 1 WASHER $0.90
Location: 41 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 42 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 43 Prev | Next Part: 12648224 *Qty: 2 WASHER $0.90
Location: 44 Prev | Next Part: 14778814 *Qty: 1 SCREW $2.30
Location: 45 Prev | Next Part: 14778814 *Qty: 2 SCREW $2.30
Location: 46 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 47 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 48 Prev | Next Part: 175836 *Qty: 1 BRACKET $5.56
Location: 49 Prev | Next Part: 175835 *Qty: 1 O.R. GASKET $41.84
Location: 50 Prev | Next Part: 177655 *Qty: 1 O.R. GASKET $53.96
Location: 51 Prev | Next Part: 65357600 *Qty: 2 ANTI-VIBRATION GASKET $4.93
Location: 52 Prev | Next Part: 177507 *Qty: 1 BRACKET $14.66
Location: 53 Prev | Next Part: 165136 *Qty: 2 SCREW $0.90
Location: 54 Prev | Next Part: 142798 *Qty: 4 RUBBER THICKNESS $1.85
Location: 55 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 56 Prev | Next Part: 10519424 *Qty: 1 WASHER Call
Location: 57 Prev | Next Part: 159147 *Qty: 1 RUBBER THICKNESS $1.15
Location: 58 Prev | Next Part: 139512 *Qty: 1 BRACKET WITH SHEATH $3.01
Location: 59 Prev | Next Part: 102948 *Qty: 1 NUT $0.90
Location: 60 Prev | Next Part: 140728 *Qty: 2 FIXING CLIP $0.90
Location: 61 Prev | Next Part: 61712500 *Qty: 1 BRACKET WITH SHEATH $2.23
Location: 62 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 63 Prev | Next Part: 10519424 *Qty: 1 WASHER Call
Location: 64 Prev | Next Part: 10441990 *Qty: 1 BRACKET WITH SHEATH $0.97
Location: 65 Prev | Next Part: 67118000 *Qty: 1 A.C. PIPES FIXING BRACKET -Valid for F1 -Valid for GD Call
Location: 66 Prev | Next Part: 102948 *Qty: 1 NUT -Valid for F1 -Valid for GD $0.90
Location: 67 Prev | Next Part: 10441590 *Qty: 1 BRACKET WITH SHEATH -Valid for F1 -Valid for GD $0.90
Location: 68 Prev | Next Part: 61712500 *Qty: 1 BRACKET WITH SHEATH -Valid for F1 -Valid for GD $2.23
Location: 69 Prev | Next Part: 102741 *Qty: 1 NUT -Valid for GD $0.90
Location: 70 Prev | Next Part: 10441390 *Qty: 1 BRACKET WITH SHEATH -Valid for GD $0.90
Location: 71 Prev | Next Part: 10441590 *Qty: 1 BRACKET WITH SHEATH -Valid for GD $0.90

* Quantity shown indicates the number of pieces used in the diagram.
