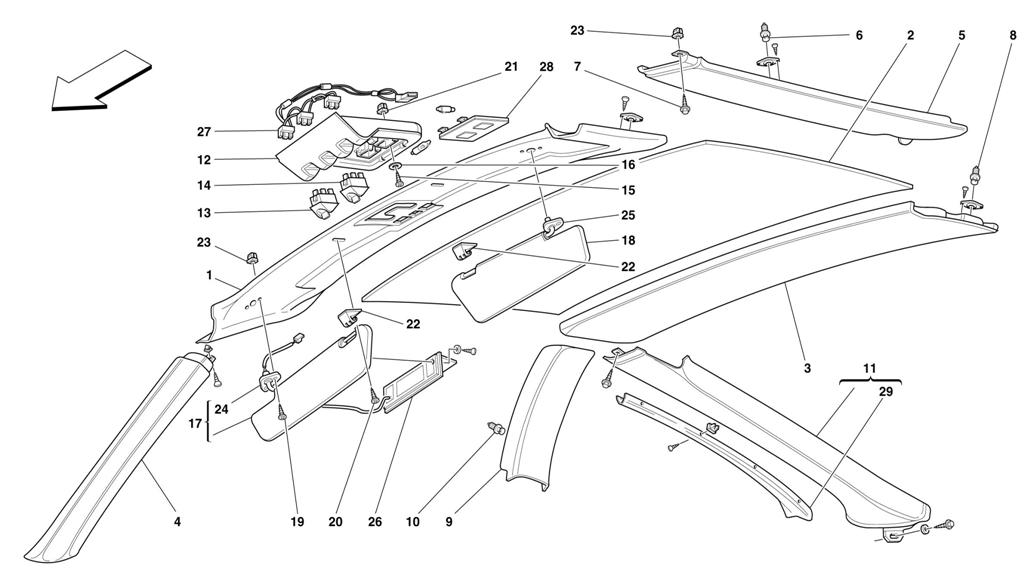

ROOF PANEL UPHOLSTERY AND ACCESSORIES

Go to Split View

ROOF PANEL UPHOLSTERY AND ACCESSORIES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 645967.. *Qty: 1 WINDSHIELD UPPER CROSSPIECE TRIM Call
Location: 2 Prev | Next Part: 645927.. *Qty: 1 ROOF UPHOLSTERY Call
Location: 3 Prev | Next Part: 645951.. *Qty: 1 REAR OVER-WINDOW CROSSMEMBER Call
Location: 4 Prev | Next Part: 645930.. *Qty: 1 FRONT L.H. POST COVERING Call
Location: 4 Prev | Next Part: 645968.. *Qty: 1 FRONT R.H. POST COVERING Call
Location: 5 Prev | Next Part: 645929.. *Qty: 1 L.H. SIDE RAIL Call
Location: 5 Prev | Next Part: 645969.. *Qty: 1 R.H. SIDE RAIL Call
Location: 6 Prev | Next Part: 14188181 *Qty: 4 RETAINER $0.90
Location: 7 Prev | Next Part: 15782601 *Qty: 4 SCREW $0.90
Location: 8 Prev | Next Part: 14188181 *Qty: 4 RETAINER $0.90
Location: 9 Prev | Next Part: 645842.. *Qty: 1 L.H. CENTRAL POST COVERING Call
Location: 9 Prev | Next Part: 645970.. *Qty: 1 R.H. CENTRAL POST COVERING Call
Location: 10 Prev | Next Part: 14188181 *Qty: 4 RETAINER $0.90
Location: 11 Prev | Next Part: 647513.. *Qty: 1 REAR R.H. POST COVERING Call
Location: 11 Prev | Next Part: 647514.. *Qty: 1 REAR L.H. POST COVERING Call
Location: 12 Prev | Next Part: 171435 *Qty: 1 FRONT DOME LAMP $216.19
Location: 13 Prev | Next Part: 180689 *Qty: 2 SWITCH FOR SPOT LIGHT -Valid from car Ass. Nr. 35207 $84.11
Location: 13 Prev | Next Part: 171084 *Qty: 2 SWITCH FOR SPOT LIGHT -Valid till car Ass. Nr. 35206 $148.29
Location: 14 Prev | Next Part: 180688 *Qty: 1 SWITCH FOR ROOF LIGHT -Valid from car Ass. Nr. 35207 $84.11
Location: 14 Prev | Next Part: 171083 *Qty: 1 SWITCH FOR ROOF LIGHT -Valid till car Ass. Nr. 35206 $100.66
Location: 15 Prev | Next Part: 15782601 *Qty: 4 SCREW $0.90
Location: 16 Prev | Next Part: 14496204 *Qty: 3 WASHER $0.90
Location: 17 Prev | Next Part: 651979.. *Qty: 1 R.H. SUN SCREEN -Not for GD -Valid till car Ass. Nr. 28973 Call
Location: 17 Prev | Next Part: 655128.. *Qty: 1 R.H. SUN SCREEN -Not for GD -Valid from car Ass. Nr. 28974 Call
Location: 17 Prev | Next Part: 651831.. *Qty: 1 R.H. SUN SCREEN -Valid for GD Call
Location: 18 Prev | Next Part: 651980.. *Qty: 1 L.H. SUN SCREEN -Not for GD Call
Location: 18 Prev | Next Part: 655131.. *Qty: 1 L.H. SUN SCREEN -Valid for GD -Valid from car Ass. Nr. 28974 Call
Location: 18 Prev | Next Part: 651832.. *Qty: 1 L.H. SUN SCREEN -Valid for GD -Valid till car Ass. Nr. 28973 Call
Location: 19 Prev | Next Part: 13309277 *Qty: 4 SCREW $0.90
Location: 20 Prev | Next Part: 13309477 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 14115580 *Qty: 3 BLOCK $0.90
Location: 22 Prev | Next Part: 65196000 *Qty: 2 HOOK FOR SUN SCREEN $4.84
Location: 23 Prev | Next Part: 14215480 *Qty: 12 NUT SCREW Superseded
Location: 24 Prev | Next Part: 65513000 *Qty: 1 ELECTRICAL PIN -Valid from car Ass. Nr. 28974 Call
Location: 24 Prev | Next Part: 65195800 *Qty: 1 ELECTRICAL PIN -Valid till car Ass. Nr. 28973 Call
Location: 25 Prev | Next Part: 65508000 *Qty: 1 PIN -Valid from car Ass. Nr. 28974 Call
Location: 25 Prev | Next Part: 65195900 *Qty: 1 PIN -Valid till car Ass. Nr. 28973 Call
Location: 26 Prev | Next Part: 63865700 *Qty: 1 COURTESY MIRROR $287.41
Location: 27 Prev | Next Part: 164669 *Qty: 1 ROOF LIGHT AND CONTROLS CONNECTING CABLES $26.64
Location: 28 Prev | Next Part: 174453 *Qty: 1 COMPLETE TRANSPARENT COVER $44.11
Location: 29 Prev | Next Part: 645899.. *Qty: 1 R.H. UPPER MOULDING Call
Location: 29 Prev | Next Part: 645840.. *Qty: 1 L.H. UPPER MOULDING Call

* Quantity shown indicates the number of pieces used in the diagram.
