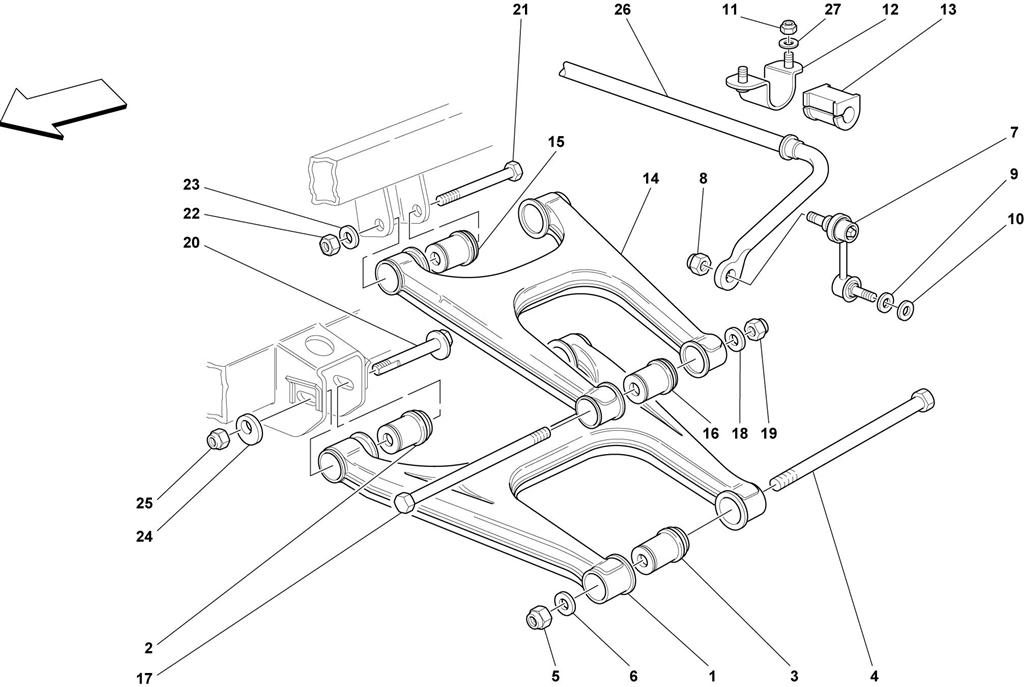

REAR SUSPENSION - WISHBONES AND STABILIZER BAR

Go to Split View

REAR SUSPENSION - WISHBONES AND STABILIZER BAR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 169796 *Qty: 2 LOWER LEVER $265.97
Location: 2 Prev | Next Part: 169573 *Qty: 4 FLAMBLOCK FOR LOWER FORK $206.29
Location: 3 Prev | Next Part: 169574 *Qty: 4 FLAMBLOCK FOR LOWER FORK $194.07
Location: 4 Prev | Next Part: 168445 *Qty: 2 SCREW $46.26
Location: 5 Prev | Next Part: 150238 *Qty: 2 NUT $0.90
Location: 6 Prev | Next Part: 105434 *Qty: 2 WASHER $28.23
Location: 7 Prev | Next Part: 171812 *Qty: 2 TIE ROD $152.50
Location: 8 Prev | Next Part: 102742 *Qty: 2 NUT $0.90
Location: 9 Prev | Next Part: 102901 *Qty: 2 WASHER $0.90
Location: 10 Prev | Next Part: 160092 *Qty: 2 WASHER $0.90
Location: 11 Prev | Next Part: 147985 *Qty: 4 NUT $0.90
Location: 12 Prev | Next Part: 153148 *Qty: 2 PAD FASTENING PLATE $7.52
Location: 13 Prev | Next Part: 212936 *Qty: 2 BAR BUFFER -? 17- -Not for cars with handling "Fiorano equipment" $16.53
Location: 13 Prev | Next Part: 130533 *Qty: 2 BAR BUFFER -? 21- -Valid for cars with handling "Fiorano equipment" -Optional $92.57
Location: 14 Prev | Next Part: 169797 *Qty: 2 UPPER LEVER $520.79
Location: 15 Prev | Next Part: 169574 *Qty: 4 FLAMBLOCK FOR LOWER FORK $194.07
Location: 16 Prev | Next Part: 163038 *Qty: 4 FLAMBLOCK FOR UPPER FORK Call
Location: 17 Prev | Next Part: 144747 *Qty: 2 SCREW $41.45
Location: 18 Prev | Next Part: 12601574 *Qty: 2 WASHER $0.90
Location: 19 Prev | Next Part: 148020 *Qty: 2 NUT $2.42
Location: 20 Prev | Next Part: 150789 *Qty: 4 ECCENTRIC SCREW $79.33
Location: 21 Prev | Next Part: 106422 *Qty: 4 SCREW $38.22
Location: 22 Prev | Next Part: 150238 *Qty: 2 NUT $0.90
Location: 23 Prev | Next Part: 128509 *Qty: 4 WASHER $1.09
Location: 24 Prev | Next Part: 175077 *Qty: 4 ECCENTRIC WASHER -Valid after stock exhaustion of 150790 $26.96
Location: 25 Prev | Next Part: 150238 *Qty: 2 NUT $0.90
Location: 26 Prev | Next Part: 210888 *Qty: 1 REAR ANTI-ROLL BAR -? 21- -Valid for cars with handling "Fiorano equipment" -Optional $2,105.19
Location: 26 Prev | Next Part: 169120 *Qty: 1 REAR ANTI-ROLL BAR -? 17- -Not for cars with handling "Fiorano equipment" $362.33
Location: 27 Prev | Next Part: 10519624 *Qty: 4 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
