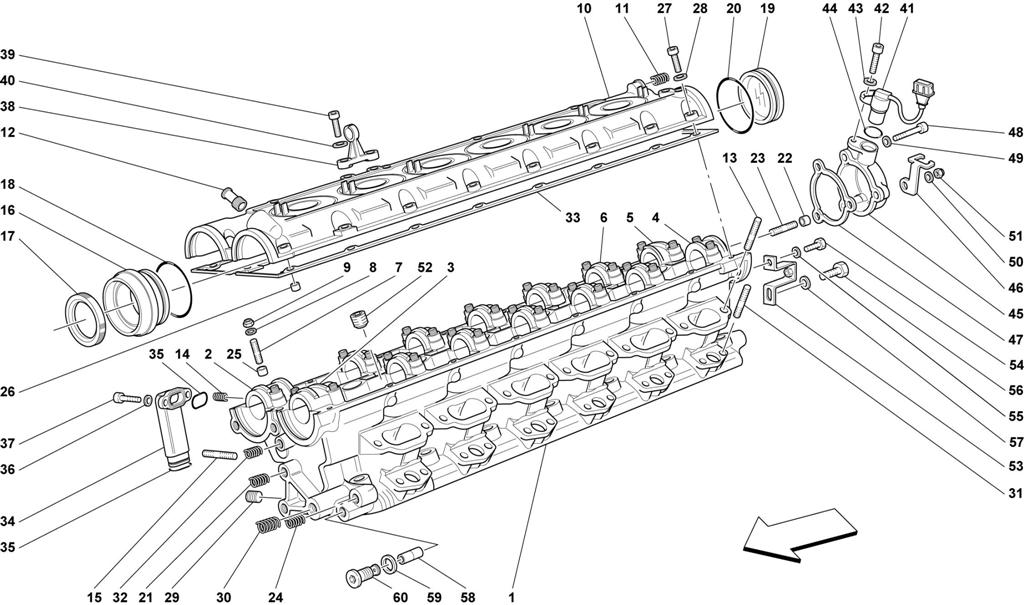

R.H. CYLINDER HEAD

Go to Split View

R.H. CYLINDER HEAD

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 173494 *Qty: 1 COMPLETE R.H. CYLINDERS HEAD Call
Location: 1 Prev | Next Part: 167399 *Qty: 1 R.H. HEAD -With complete cylinder head Call
Location: 2 Prev | Next Part: 154203 *Qty: 1 RIGHT FRONT CAP -With complete cylinder head Call
Location: 3 Prev | Next Part: 154205 *Qty: 1 LEFT FRONT CAP -With complete cylinder head Call
Location: 4 Prev | Next Part: 154204 *Qty: 1 LEFT REAR CAP -With complete cylinder head Call
Location: 5 Prev | Next Part: 154206 *Qty: 1 RIGHT REAR CAP -With complete cylinder head Call
Location: 6 Prev | Next Part: 154207 *Qty: 10 INTERMEDIATE CAP -With complete cylinder head Call
Location: 7 Prev | Next Part: 13541424 *Qty: 28 STUD $0.90
Location: 8 Prev | Next Part: 11197771 *Qty: 28 WASHER Superseded
Location: 9 Prev | Next Part: 15896214 *Qty: 28 NUT $0.90
Location: 10 Prev | Next Part: 171719 *Qty: 1 R.H. CYLINDERS HEAD COVER -With complete cylinder head Call
Location: 11 Prev | Next Part: 13525570 *Qty: 1 THREADED INSERT $3.27
Location: 12 Prev | Next Part: 154525 *Qty: 1 THREADED UNION Call
Location: 13 Prev | Next Part: 13541124 *Qty: 12 STUD $8.18
Location: 14 Prev | Next Part: 13525170 *Qty: 2 THREADED INSERT $0.90
Location: 15 Prev | Next Part: 13516824 *Qty: 12 STUD $0.90
Location: 16 Prev | Next Part: 148022 *Qty: 1 FRONT COVER $44.74
Location: 17 Prev | Next Part: 163987 *Qty: 1 GASKET $15.00
Location: 18 Prev | Next Part: 117275 *Qty: 1 O.R. GASKET $6.26
Location: 19 Prev | Next Part: 148023 *Qty: 1 REAR SMALL COVER $22.38
Location: 20 Prev | Next Part: 117275 *Qty: 1 O.R. GASKET $6.26
Location: 21 Prev | Next Part: 13525770 *Qty: 2 THREADED INSERT $0.90
Location: 22 Prev | Next Part: 102725 *Qty: 2 DOWEL $0.90
Location: 23 Prev | Next Part: 13541324 *Qty: 2 STUD $1.11
Location: 24 Prev | Next Part: 13525870 *Qty: 1 THREADED INSERT $3.43
Location: 25 Prev | Next Part: 102725 *Qty: 2 DOWEL $0.90
Location: 26 Prev | Next Part: 102725 *Qty: 2 DOWEL $0.90
Location: 27 Prev | Next Part: 156834 *Qty: 16 SCREW $0.90
Location: 28 Prev | Next Part: 12601274 *Qty: 18 WASHER $0.90
Location: 29 Prev | Next Part: 14326150 *Qty: 1 PLUG $0.90
Location: 30 Prev | Next Part: 13524670 *Qty: 1 THREADED INSERT $0.97
Location: 31 Prev | Next Part: 11500224 *Qty: 12 STUD $0.90
Location: 32 Prev | Next Part: 13525570 *Qty: 1 THREADED INSERT $3.27
Location: 33 Prev | Next Part: 140753 *Qty: 1 COVER GASKET $54.76
Location: 34 Prev | Next Part: 154647 *Qty: 1 OIL EXHAUST DUCTING $132.41
Location: 35 Prev | Next Part: 142599 *Qty: 2 O.R. GASKET $1.39
Location: 36 Prev | Next Part: 12601174 *Qty: 2 WASHER $0.90
Location: 37 Prev | Next Part: 14304224 *Qty: 2 SCREW $0.90
Location: 38 Prev | Next Part: 151688 *Qty: 1 SUPPORT FOR ACCELERATOR CABLE $42.28
Location: 39 Prev | Next Part: 14305224 *Qty: 2 SCREW $0.90
Location: 40 Prev | Next Part: 12604274 *Qty: 2 WASHER $0.90
Location: 41 Prev | Next Part: 150866 *Qty: 1 PHASE SENSOR $133.45
Location: 42 Prev | Next Part: 14305224 *Qty: 2 SCREW $0.90
Location: 43 Prev | Next Part: 12601274 *Qty: 18 WASHER $0.90
Location: 44 Prev | Next Part: 150867 *Qty: 1 SEAL RING $2.16
Location: 45 Prev | Next Part: 151275 *Qty: 1 R.H. PHASE SENSOR SUPPORT $921.32
Location: 46 Prev | Next Part: 160867 *Qty: 1 BRACKET $50.23
Location: 47 Prev | Next Part: 140787 *Qty: 1 GASKET $11.62
Location: 48 Prev | Next Part: 14305521 *Qty: 1 SCREW $0.90
Location: 49 Prev | Next Part: 12604274 *Qty: 2 WASHER $0.90
Location: 50 Prev | Next Part: 12601274 *Qty: 18 WASHER $0.90
Location: 51 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 52 Prev | Next Part: 127635 *Qty: 4 THREADED PLUG $4.35
Location: 53 Prev | Next Part: 157910 *Qty: 1 BRACKET $43.38
Location: 54 Prev | Next Part: 10902024 *Qty: 1 SCREW $0.90
Location: 55 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 56 Prev | Next Part: 16043124 *Qty: 1 SCREW $0.90
Location: 57 Prev | Next Part: 127496 *Qty: 1 WASHER $0.90
Location: 58 Prev | Next Part: 156862 *Qty: 1 NONRETURN VALVE $20.60
Location: 59 Prev | Next Part: 10298460 *Qty: 1 GASKET $0.90
Location: 60 Prev | Next Part: 163714 *Qty: 1 PLUG $31.93

* Quantity shown indicates the number of pieces used in the diagram.
