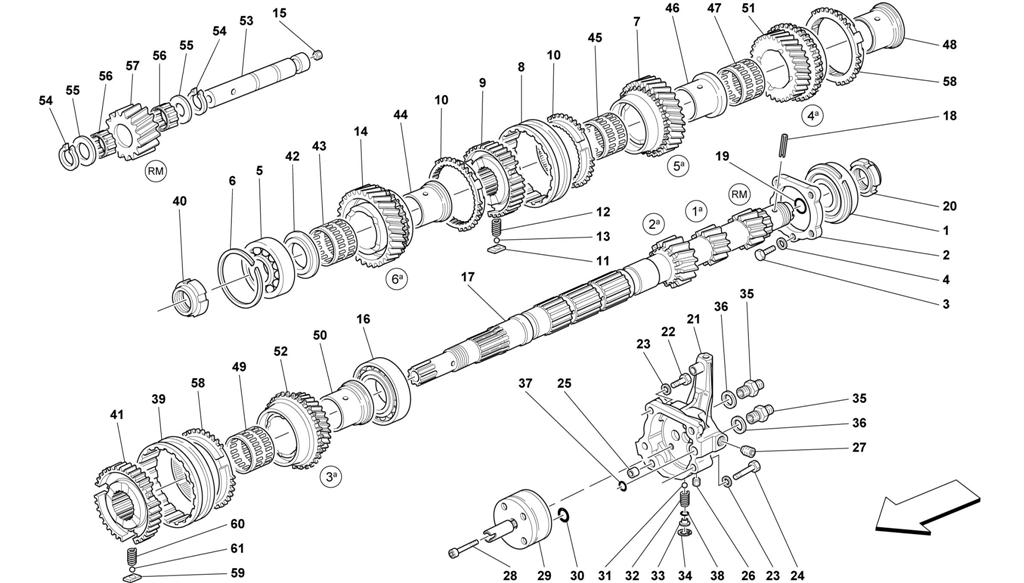

MAIN SHAFT GEARS AND CLUTCH OIL PUMP

Go to Split View

MAIN SHAFT GEARS AND CLUTCH OIL PUMP

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 149329 *Qty: 1 COMPLETE OIL PUMP BODY Call
Location: 1 Prev | Next Part: 144502 *Qty: 1 BEARING FOR MAIN SHAFT PUMP OIL SIDE $200.76
Location: 2 Prev | Next Part: 144444 *Qty: 1 SUPPORT RING $76.30
Location: 3 Prev | Next Part: 16043424 *Qty: 1 SCREW $0.90
Location: 4 Prev | Next Part: 127496 *Qty: 1 WASHER $0.90
Location: 5 Prev | Next Part: 103030 *Qty: 1 ROLLER BEARING $262.11
Location: 6 Prev | Next Part: 144511 *Qty: 1 STOP RING $1.65
Location: 7 Prev | Next Part: 167982 *Qty: 1 PINION FOR 5th GEAR -Valid till transmission Nr. 1881 $356.55
Location: 7 Prev | Next Part: 179113 *Qty: 1 PINION FOR 5th GEAR -Valid from transmission Nr. 1882 $3,474.11
Location: 8 Prev | Next Part: 152206 *Qty: 1 SLEEVE FOR SYNCHRONIZER $160.15
Location: 9 Prev | Next Part: 152207 *Qty: 1 SYNCHRONIZER BODY $351.09
Location: 10 Prev | Next Part: 152209 *Qty: 2 SYNCHRONIZER RING $339.20
Location: 11 Prev | Next Part: 152195 *Qty: 3 SMALL BLOCK $0.90
Location: 12 Prev | Next Part: 152196 *Qty: 3 SPRING $0.93
Location: 13 Prev | Next Part: 152197 *Qty: 3 BALL $4.34
Location: 14 Prev | Next Part: 167984 *Qty: 1 PINION FOR 6th GEAR $870.67
Location: 15 Prev | Next Part: 10269350 *Qty: 1 PLUG $1.70
Location: 16 Prev | Next Part: 131056 *Qty: 1 ROLLER BEARING $202.37
Location: 17 Prev | Next Part: 167968 *Qty: 1 MAIN SHAFT FOR GEAR LEVER Call
Location: 18 Prev | Next Part: 14601270 *Qty: 1 FLEXIBLE PIN $0.90
Location: 19 Prev | Next Part: 109724 *Qty: 1 O.R. GASKET $1.63
Location: 20 Prev | Next Part: 159553 *Qty: 1 RING NUT $75.36
Location: 21 Prev | Next Part: 171712 *Qty: 1 OIL PUMP BODY -With complete oil pump body Call
Location: 22 Prev | Next Part: 16044321 *Qty: 2 SCREW $0.90
Location: 23 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 16044321 *Qty: 2 SCREW $0.90
Location: 25 Prev | Next Part: 102704 *Qty: 1 CENTERING DOWEL $19.74
Location: 26 Prev | Next Part: 14326150 *Qty: 2 PLUG $0.90
Location: 27 Prev | Next Part: 10269450 *Qty: 2 PLUG $35.26
Location: 28 Prev | Next Part: 14303474 *Qty: 4 SCREW $0.90
Location: 29 Prev | Next Part: 171706 *Qty: 1 COMPLETE CLUTCH OIL PUMP Call
Location: 30 Prev | Next Part: 137192 *Qty: 1 O.R. GASKET $0.90
Location: 31 Prev | Next Part: 135770 *Qty: 1 BALL $0.90
Location: 32 Prev | Next Part: 171889 *Qty: 1 SPRING $4.77
Location: 33 Prev | Next Part: 102591 *Qty: 1 SPACER $8.41
Location: 34 Prev | Next Part: 11057576 *Qty: 1 SEEGER RING $0.90
Location: 35 Prev | Next Part: 150577 *Qty: 2 UNION $25.26
Location: 36 Prev | Next Part: 10257060 *Qty: 2 GASKET $0.90
Location: 37 Prev | Next Part: 137192 *Qty: 1 O.R. GASKET $0.90
Location: 38 Prev | Next Part: 128702 *Qty: 1 GASKET $4.38
Location: 39 Prev | Next Part: 152198 *Qty: 1 SLEEVE $288.79
Location: 40 Prev | Next Part: 153000 *Qty: 1 GING NUT Call
Location: 41 Prev | Next Part: 161015 *Qty: 1 SYNCHRONIZER BODY $310.97
Location: 42 Prev | Next Part: 143886 *Qty: 1 SPACER $23.30
Location: 43 Prev | Next Part: 107525 *Qty: 1 ROLLER CAGE $18.01
Location: 44 Prev | Next Part: 143893 *Qty: 1 BUSHING $499.99
Location: 45 Prev | Next Part: 107525 *Qty: 1 ROLLER CAGE $18.01
Location: 46 Prev | Next Part: 152094 *Qty: 1 BUSHING $88.94
Location: 47 Prev | Next Part: 107525 *Qty: 1 ROLLER CAGE $18.01
Location: 48 Prev | Next Part: 152093 *Qty: 1 BUSHING $78.07
Location: 49 Prev | Next Part: 109002 *Qty: 1 ROLLER CAGE $30.58
Location: 50 Prev | Next Part: 161445 *Qty: 1 BUSHING $160.22
Location: 51 Prev | Next Part: 179110 *Qty: 1 PINION FOR 4th GEAR -Valid from transmission Nr. 1882 $2,526.64
Location: 51 Prev | Next Part: 161993 *Qty: 1 PINION FOR 4th GEAR -Valid till transmission Nr. 1881 $1,637.45
Location: 52 Prev | Next Part: 167978 *Qty: 1 PINION FOR 3RD GEAR $801.39
Location: 53 Prev | Next Part: 159410 *Qty: 1 PIN $67.19
Location: 54 Prev | Next Part: 158272 *Qty: 2 FLEXIBLE RING $0.90
Location: 55 Prev | Next Part: 104249 *Qty: 2 SPACER WASHER -mm. 4,0 $131.64
Location: 55 Prev | Next Part: 158257 *Qty: 2 SPACER WASHER -mm. 4,1 $13.22
Location: 56 Prev | Next Part: 104256 *Qty: 2 ROLLER CAGE $10.05
Location: 57 Prev | Next Part: 167973 *Qty: 1 IDLE GEAR FOR REVERSE $1,432.50
Location: 58 Prev | Next Part: 155155 *Qty: 2 SYNCHRONIZER RING $202.51
Location: 59 Prev | Next Part: 152195 *Qty: 3 SMALL BLOCK $0.90
Location: 60 Prev | Next Part: 161016 *Qty: 3 SPRING $5.93
Location: 61 Prev | Next Part: 152197 *Qty: 3 BALL $4.34

* Quantity shown indicates the number of pieces used in the diagram.
