HYDRAULIC STEERING PUMPS

Go to Split View

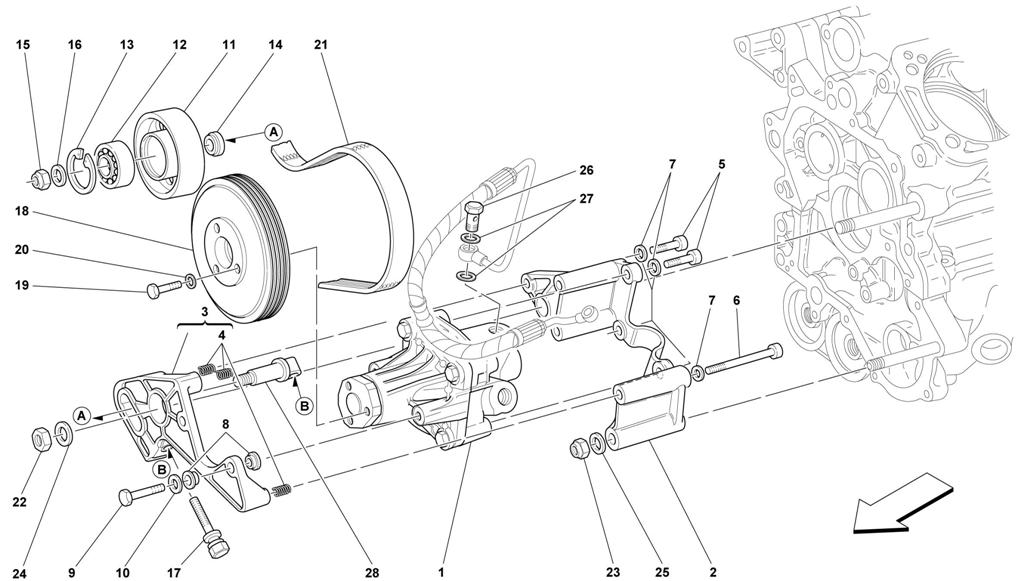

HYDRAULIC STEERING PUMPS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 170751 *Qty: 1 HYDRAULIC SERVO-CONTROL PUMP Call
Location: 2 Prev | Next Part: 170831 *Qty: 1 INNER SUPPORT $1,453.36
Location: 3 Prev | Next Part: 171271 *Qty: 1 SUPPORT WITH BELT TIGHTENER $325.62
Location: 4 Prev | Next Part: 13525770 *Qty: 4 THREADED INSERT $0.90
Location: 5 Prev | Next Part: 14306424 *Qty: 4 SCREW $0.90
Location: 6 Prev | Next Part: 14307224 *Qty: 3 SCREW $0.90
Location: 7 Prev | Next Part: 11193874 *Qty: 7 WASHER $0.90
Location: 8 Prev | Next Part: 165975 *Qty: 4 BUSHING $5.86
Location: 9 Prev | Next Part: 16052024 *Qty: 2 SCREW $2.94
Location: 10 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 11 Prev | Next Part: 148631 *Qty: 1 PULLEY $484.28
Location: 12 Prev | Next Part: 123350 *Qty: 1 BEARING $44.19
Location: 13 Prev | Next Part: 11060076 *Qty: 1 SEEGER RING $0.90
Location: 14 Prev | Next Part: 148638 *Qty: 1 SPACER $106.37
Location: 15 Prev | Next Part: 148020 *Qty: 1 NUT $5.53
Location: 16 Prev | Next Part: 10730721 *Qty: 1 WASHER $0.90
Location: 17 Prev | Next Part: 157289 *Qty: 1 SCREW $9.69
Location: 18 Prev | Next Part: 165974 *Qty: 1 PULLEY Call
Location: 19 Prev | Next Part: 10902124 *Qty: 3 SCREW $0.90
Location: 20 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 21 Prev | Next Part: 199834 *Qty: 1 BELT FOR HYDRAULIC SERVO-CONTROL PUMP -Valid from engine Nr. 51923 $27.80
Location: 22 Prev | Next Part: 148020 *Qty: 1 NUT $5.53
Location: 23 Prev | Next Part: 102742 *Qty: 1 NUT $0.90
Location: 24 Prev | Next Part: 157115 *Qty: 1 WASHER $0.90
Location: 25 Prev | Next Part: 13550401 *Qty: 1 WASHER $0.90
Location: 26 Prev | Next Part: 10184411 *Qty: 1 UNION-VALVE $73.61
Location: 27 Prev | Next Part: 10278660 *Qty: 2 GASKET $0.90
Location: 28 Prev | Next Part: 153165 *Qty: 1 PIN $45.47

* Quantity shown indicates the number of pieces used in the diagram.
