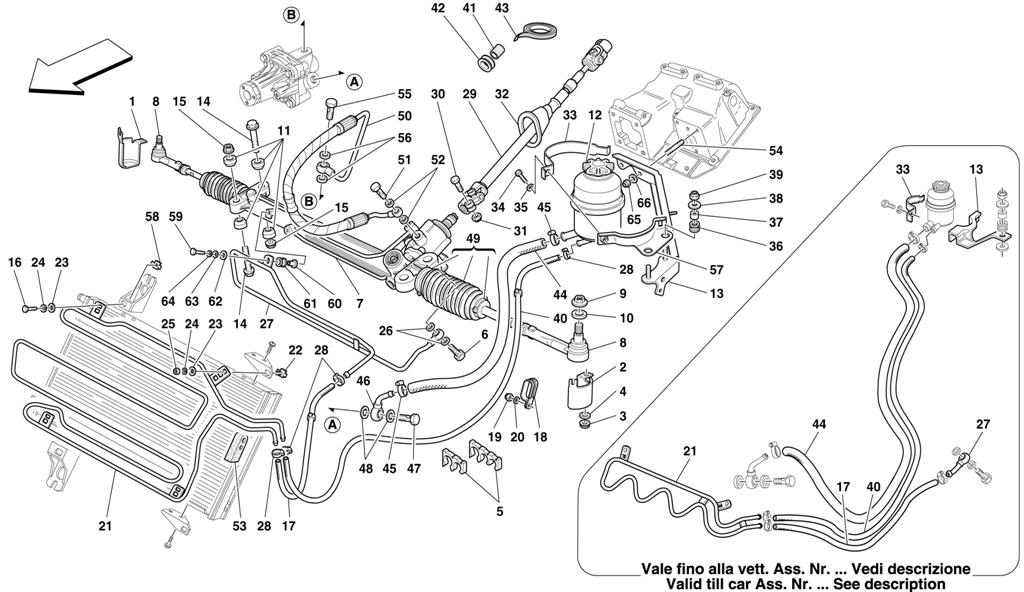

HYDRAULIC STEERING BOX AND SERPENTINE

Go to Split View

HYDRAULIC STEERING BOX AND SERPENTINE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 150879 *Qty: 1 R.H. PROTECTION $17.53
Location: 2 Prev | Next Part: 150878 *Qty: 1 L.H. PROTECTION $17.53
Location: 3 Prev | Next Part: 14058314 *Qty: 4 NUT $0.90
Location: 4 Prev | Next Part: 62764900 *Qty: 4 WASHER $0.90
Location: 5 Prev | Next Part: 171359 *Qty: 1 SPRINGS -Not for GD $8.38
Location: 5 Prev | Next Part: 172847 *Qty: 1 SPRINGS -Valid for GD $0.90
Location: 6 Prev | Next Part: 10185111 *Qty: 1 UNION $5.69
Location: 7 Prev | Next Part: 169888 *Qty: 1 RACK STEERING BOX -Valid for GD $4,769.79
Location: 7 Prev | Next Part: 170858 *Qty: 1 RACK STEERING BOX -Not for GD $4,300.55
Location: 8 Prev | Next Part: 158016 *Qty: 2 BALL JOINT $330.83
Location: 9 Prev | Next Part: 149807 *Qty: 2 NUT $1.44
Location: 10 Prev | Next Part: 155002 *Qty: 2 WASHER $4.09
Location: 11 Prev | Next Part: 155567 *Qty: 8 SILENTBLOCK $20.68
Location: 12 Prev | Next Part: 170877 *Qty: 1 OIL TANK FOR SERVOSTEERING $78.70
Location: 13 Prev | Next Part: 173586 *Qty: 1 BRACKET -Valid for GD $117.69
Location: 13 Prev | Next Part: 171019 *Qty: 1 BRACKET -Not for GD -Valid till car Ass. Nr. 32101 and till car Ass. Nr. 32056 M.Y. 99 $37.11
Location: 13 Prev | Next Part: 179303 *Qty: 1 BRACKET -Not for GD -Valid from car Ass. Nr. 32102 and from car Ass. Nr. 32057 M.Y. 99 Call
Location: 14 Prev | Next Part: 175701 *Qty: 4 SCREW $3.32
Location: 15 Prev | Next Part: 175283 *Qty: 4 NUT $0.90
Location: 16 Prev | Next Part: 10902224 *Qty: 2 SCREW $0.90
Location: 17 Prev | Next Part: 170959 *Qty: 1 RUBBER PIPE FROM STEERING BOX TO REFRIGERATING COIL -Not for GD -Valid till car Ass. Nr. 29470 $121.57
Location: 17 Prev | Next Part: 178183 *Qty: 1 RUBBER PIPE FROM STEERING BOX TO REFRIGERATING COIL -Not for GD -Valid from car Ass. Nr. 29471 $96.48
Location: 17 Prev | Next Part: 178184 *Qty: 1 RUBBER PIPE FROM STEERING BOX TO REFIGERATING COIL -Valid for GD -Valid from car Ass. Nr. 29471 $85.19
Location: 17 Prev | Next Part: 171815 *Qty: 1 RUBBER PIPE FROM STEERING BOX TO REFIGERATING COIL -Valid for GD -Valid till car Ass. Nr. 29470 Call
Location: 18 Prev | Next Part: 61712500 *Qty: 2 BRACKET WITH SHEATH $2.23
Location: 19 Prev | Next Part: 102948 *Qty: 1 NUT $0.90
Location: 20 Prev | Next Part: 12639724 *Qty: 1 WASHER $0.90
Location: 21 Prev | Next Part: 177360 *Qty: 1 REFRIGERATING COIL -Valid from car Ass. Nr. 29471 $443.78
Location: 21 Prev | Next Part: 170856 *Qty: 1 REFRIGERATING COIL -Valid till car Ass. Nr. 29470 Call
Location: 22 Prev | Next Part: 14662695 *Qty: 1 SCREW $5.80
Location: 23 Prev | Next Part: 12643724 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 25 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 26 Prev | Next Part: 10280060 *Qty: 2 GASKET $0.90
Location: 27 Prev | Next Part: 177395 *Qty: 1 PIPE FROM STEERING BOX WITH UNION -Valid from car Ass. Nr. 29471 $193.80
Location: 27 Prev | Next Part: 170859 *Qty: 1 UNION -Valid till car Ass. Nr. 29470 $70.24
Location: 28 Prev | Next Part: 161490 *Qty: 4 SCREW COLLAR $2.55
Location: 29 Prev | Next Part: 167168 *Qty: 1 STEERING CARDANIC TRASMISSION -Not for GD Call
Location: 29 Prev | Next Part: 169886 *Qty: 1 STEERING CARDANIC TRASMISSION -Valid for GD $2,706.90
Location: 30 Prev | Next Part: 150427 *Qty: 1 SCREW $7.99
Location: 31 Prev | Next Part: 150428 *Qty: 1 NUT $1.90
Location: 32 Prev | Next Part: 167341 *Qty: 1 GASKET $25.62
Location: 33 Prev | Next Part: 173587 *Qty: 1 CLAMP -Valid for GD $93.69
Location: 33 Prev | Next Part: 171018 *Qty: 1 CLAMP -Not for GD -Valid till car Ass. Nr. 32101 and till car Ass. Nr. 32056 M.Y. 99 $8.18
Location: 33 Prev | Next Part: 171746 *Qty: 1 CLAMP -Not for GD -Valid from car Ass. Nr. 32102 and from car Ass. Nr. 32057 M.Y. 99 $28.63
Location: 34 Prev | Next Part: 10902124 *Qty: 1 SCREW $0.90
Location: 35 Prev | Next Part: 12601274 *Qty: 1 WASHER $0.90
Location: 36 Prev | Next Part: 103549 *Qty: 2 CABLE GROMMET $0.90
Location: 37 Prev | Next Part: 103550 *Qty: 2 SPACER $2.55
Location: 38 Prev | Next Part: 12643724 *Qty: 4 WASHER $0.90
Location: 39 Prev | Next Part: 102948 *Qty: 1 NUT $0.90
Location: 40 Prev | Next Part: 170863 *Qty: 1 PIPE FROM REFRIGERATING COIL TO FUEL TANK -Not for GD -Valid till car Ass. Nr. 29470 Call
Location: 40 Prev | Next Part: 178181 *Qty: 1 PIPE FROM REFRIGERATING COIL TO FUEL TANK -Not for GD -Valid from car Ass. Nr. 29471 -Valid till $208.55
Location: 40 Prev | Next Part: 178182 *Qty: 1 PIPE FROM REFRIGERATING COIL TO FUEL TANK -Valid for GD -Valid from car Ass. Nr. 29471 $214.81
Location: 40 Prev | Next Part: 179377 *Qty: 1 PIPE FROM REFRIGERATING COIL TO FUEL TANK -Not for GD -Valid from car Ass. Nr. 32102 and from ca $206.27
Location: 40 Prev | Next Part: 171816 *Qty: 1 PIPE FROM REFRIGERATING COIL TO FUEL TANK -Valid for GD -Valid till car Ass. Nr. 29470 $160.69
Location: 41 Prev | Next Part: 167379 *Qty: 1 RUBBER HOSE $9.46
Location: 42 Prev | Next Part: 167376 *Qty: 1 SEAL RING $2.10
Location: 43 Prev | Next Part: 179038 *Qty: 1 FILM FOR CARDANIC TRASMISSION Call
Location: 44 Prev | Next Part: 170878 *Qty: 1 RUBBER PIPE FROM TANK TO PUMP -Not for GD -Valid till car Ass. Nr. 32101 and till car Ass. Nr. 3 $67.78
Location: 44 Prev | Next Part: 179381 *Qty: 1 RUBBER PIPE FROM TANK TO PUMP -Not for GD -Valid from car Ass. Nr. 32102 and from car Ass. Nr. 3 $81.63
Location: 44 Prev | Next Part: 173534 *Qty: 1 RUBBER PIPE FROM TANK TO PUMP -Valid for GD $92.86
Location: 45 Prev | Next Part: 13000390 *Qty: 2 SCREW COLLAR $0.90
Location: 46 Prev | Next Part: 155449 *Qty: 1 SWINGING UNION $455.19
Location: 47 Prev | Next Part: 155448 *Qty: 1 UNION $22.27
Location: 48 Prev | Next Part: 10261560 *Qty: 2 GASKET $0.90
Location: 49 Prev | Next Part: 171702 *Qty: 2 COMPLETE RUBBER BOOT $163.61
Location: 50 Prev | Next Part: 170860 *Qty: 1 PIPE FROM PUMP TO STEERING BOX -Not for GD $593.57
Location: 50 Prev | Next Part: 171813 *Qty: 1 PIPE FROM PUMP TO STEERING BOX -Valid for GD Call
Location: 51 Prev | Next Part: 170862 *Qty: 1 UNION-VALVE $25.12
Location: 52 Prev | Next Part: 10280060 *Qty: 2 GASKET $0.90
Location: 53 Prev | Next Part: 65141300 *Qty: 1 SEALING -Valid from car Ass. Nr. 29471 $9.30
Location: 54 Prev | Next Part: 13516824 *Qty: 2 STUD -Not for GD -Valid from car Ass. Nr. 32102 and from car Ass. Nr. 32057 M.Y. 99 $8.85
Location: 55 Prev | Next Part: 10184411 *Qty: 1 UNION-VALVE $75.92
Location: 56 Prev | Next Part: 10278660 *Qty: 2 GASKET $0.90
Location: 57 Prev | Next Part: 179279 *Qty: 1 BRACKET -Not for GD -Valid from car Ass. Nr. 32102 and from car Ass. Nr. 32057 M.Y. 99 Call
Location: 58 Prev | Next Part: 60758600 *Qty: 2 NUT WITH CAGE $0.90
Location: 59 Prev | Next Part: 10445224 *Qty: 1 SCREW -Valid from car Ass. Nr. 29471 $0.90
Location: 60 Prev | Next Part: 149707 *Qty: 1 SPACER -Valid from car Ass. Nr. 29471 $1.45
Location: 61 Prev | Next Part: 103549 *Qty: 2 CABLE GROMMET $0.90
Location: 62 Prev | Next Part: 10523424 *Qty: 1 WASHER -Valid from car Ass. Nr. 29471 $0.90
Location: 63 Prev | Next Part: 12642878 *Qty: 1 WASHER -Valid from car Ass. Nr. 29471 $0.90
Location: 64 Prev | Next Part: 10615274 *Qty: 1 WASHER -Valid from car Ass. Nr. 29471 $0.90
Location: 65 Prev | Next Part: 104030 *Qty: 2 NUT -Not for GD -Valid from car Ass. Nr. 32102 and from car Ass. Nr. 32057 M.Y. 99 $0.90
Location: 66 Prev | Next Part: 12638524 *Qty: 2 WASHER -Not for GD -Valid from car Ass. Nr. 32102 and from car Ass. Nr. 32057 M.Y. 99 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
