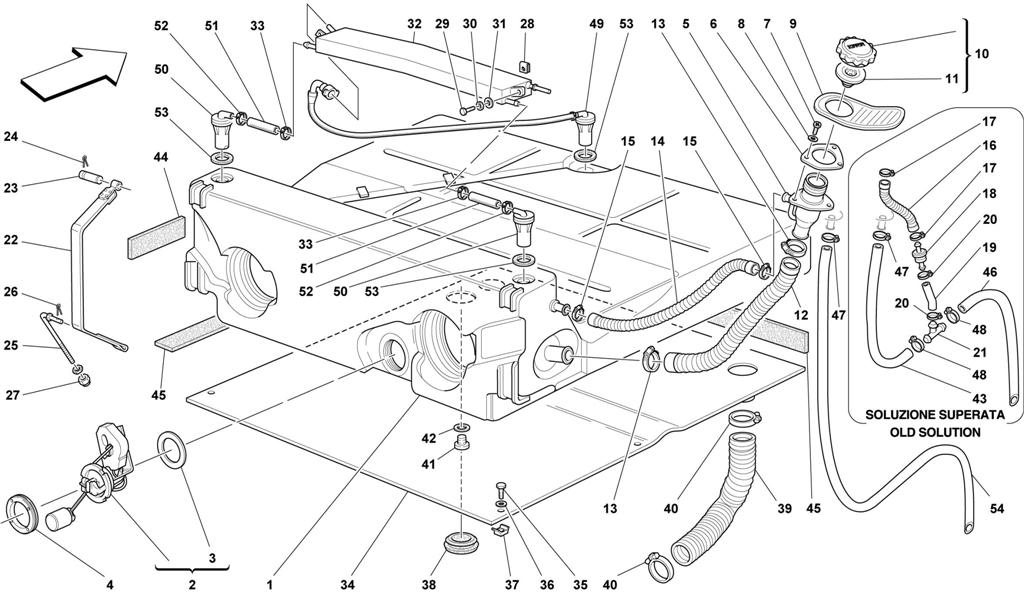

FUEL TANK -NOT FOR USA AND CDN M.Y. 99 & 2000-

Go to Split View

FUEL TANK -NOT FOR USA AND CDN M.Y. 99 & 2000-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 165129 *Qty: 1 FUEL TANK $2,873.13
Location: 2 Prev | Next Part: 168238 *Qty: 1 COMPLETE FUEL LEVEL INDICATOR CONTROL Call
Location: 3 Prev | Next Part: 154802 *Qty: 1 GASKET $31.93
Location: 4 Prev | Next Part: 121435 *Qty: 1 RING NUT $151.77
Location: 5 Prev | Next Part: 171278 *Qty: 1 FILLER -Valid from Ass. N? 24857 -Not for not catalyzed cars $267.90
Location: 5 Prev | Next Part: 172953 *Qty: 1 FILLER -Valid till Ass. Nr. 24856 -Not for not catalyzed cars $300.65
Location: 5 Prev | Next Part: 173482 *Qty: 1 FILLER -Valid for not catalyzed cars $278.90
Location: 6 Prev | Next Part: 174095 *Qty: 1 GASKET $6.31
Location: 7 Prev | Next Part: 13276470 *Qty: 3 SCREW $0.90
Location: 8 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 9 Prev | Next Part: 62943200 *Qty: 1 RUBBER PROTECTION $27.96
Location: 10 Prev | Next Part: 180321 *Qty: 1 PLUG Call
Location: 10 Prev | Next Part: 180320 *Qty: 1 PLUG $944.27
Location: 11 Prev | Next Part: 180321 *Qty: 1 GASKET -Valid from Ass. Nr. 24857 -Not as spare part now -With complete plug 180321 Call
Location: 11 Prev | Next Part: 180585 *Qty: 1 GASKET $89.81
Location: 12 Prev | Next Part: 167131 *Qty: 1 FILLER-TANK CONNECTING PIPE Call
Location: 13 Prev | Next Part: 170127 *Qty: 2 SCREW COLLAR $1.15
Location: 14 Prev | Next Part: 165132 *Qty: 1 VENT PIPE FROM TANK TO FILLER $33.52
Location: 15 Prev | Next Part: 164015 *Qty: 2 SCREW COLLAR $0.90
Location: 16 Prev | Next Part: 170166 *Qty: 1 PIPE FROM FILLER TO VALVE $41.51
Location: 17 Prev | Next Part: 13431570 *Qty: 2 SCREW COLLAR $1.51
Location: 18 Prev | Next Part: 169840 *Qty: 1 2-WAY VALVE $25.38
Location: 19 Prev | Next Part: 170546 *Qty: 1 RUBBER PIPE Call
Location: 20 Prev | Next Part: 13431870 *Qty: 2 SCREW COLLAR $0.90
Location: 21 Prev | Next Part: 170615 *Qty: 1 3-WAY UNION $2.23
Location: 22 Prev | Next Part: 172340 *Qty: 2 FUEL TANK FASTENER $89.37
Location: 23 Prev | Next Part: 103447 *Qty: 2 PIN $3.27
Location: 24 Prev | Next Part: 10796440 *Qty: 4 SPLIT PIN $0.90
Location: 25 Prev | Next Part: 127529 *Qty: 2 THREADED TIE ROD $116.23
Location: 26 Prev | Next Part: 10796440 *Qty: 4 SPLIT PIN $0.90
Location: 27 Prev | Next Part: 104030 *Qty: 2 NUT $0.90
Location: 28 Prev | Next Part: 62766300 *Qty: 2 CLIP $0.94
Location: 29 Prev | Next Part: 10902224 *Qty: 2 SCREW $0.90
Location: 30 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 31 Prev | Next Part: 10519424 *Qty: 2 WASHER Call
Location: 32 Prev | Next Part: 169583 *Qty: 1 DISAREATOR -Valid till car Ass. Nr. 30266 -Not for USA M.Y. 99 and CDN M.Y. 99 $252.16
Location: 32 Prev | Next Part: 178866 *Qty: 1 DISAREATOR -Valid from car Ass. Nr. 30267 -Valid for USA M.Y. 99 and CDN M.Y. 99 Call
Location: 33 Prev | Next Part: 13434670 *Qty: 2 SCREW COLLAR Call
Location: 34 Prev | Next Part: 65083800 *Qty: 1 UNDER TANK SHIELD $823.03
Location: 35 Prev | Next Part: 10902424 *Qty: 4 SCREW $0.90
Location: 36 Prev | Next Part: 12643724 *Qty: 4 WASHER $0.90
Location: 37 Prev | Next Part: 60758600 *Qty: 4 NUT WITH CAGE $0.90
Location: 38 Prev | Next Part: 64783600 *Qty: 1 RUBBER PLUG $7.55
Location: 39 Prev | Next Part: 65084500 *Qty: 2 AIR DELIVERY TUBE TO TANK $80.94
Location: 40 Prev | Next Part: 12173190 *Qty: 4 SCREW COLLAR $16.60
Location: 41 Prev | Next Part: 148045 *Qty: 1 THREADED PLUG $22.39
Location: 42 Prev | Next Part: 123622 *Qty: 1 O.R. GASKET $1.91
Location: 43 Prev | Next Part: 65197700 *Qty: 1 EXHAUST PLASTIC HOSE $6.61
Location: 44 Prev | Next Part: 157411 *Qty: 1 RUBBER THICKNESS $2.61
Location: 45 Prev | Next Part: 167025 *Qty: 3 RUBBER THICKNESS $7.78
Location: 46 Prev | Next Part: 161032 *Qty: 1 EXHAUST PLASTIC HOSE $12.90
Location: 47 Prev | Next Part: 13423671 *Qty: 1 ELASTIC COLLAR $2.02
Location: 48 Prev | Next Part: 161490 *Qty: 2 SCREW COLLAR $2.47
Location: 49 Prev | Next Part: 169937 *Qty: 1 PIPE WITH VALVE $228.12
Location: 50 Prev | Next Part: 169839 *Qty: 2 VALVE $32.87
Location: 51 Prev | Next Part: 116762 *Qty: 2 RUBBER HOSE $8.63
Location: 52 Prev | Next Part: 13434670 *Qty: 2 SCREW COLLAR Call
Location: 53 Prev | Next Part: 195049 *Qty: 3 GASKET $4.59
Location: 54 Prev | Next Part: 179851 *Qty: 1 RUBBER HOSE $30.70

* Quantity shown indicates the number of pieces used in the diagram.
