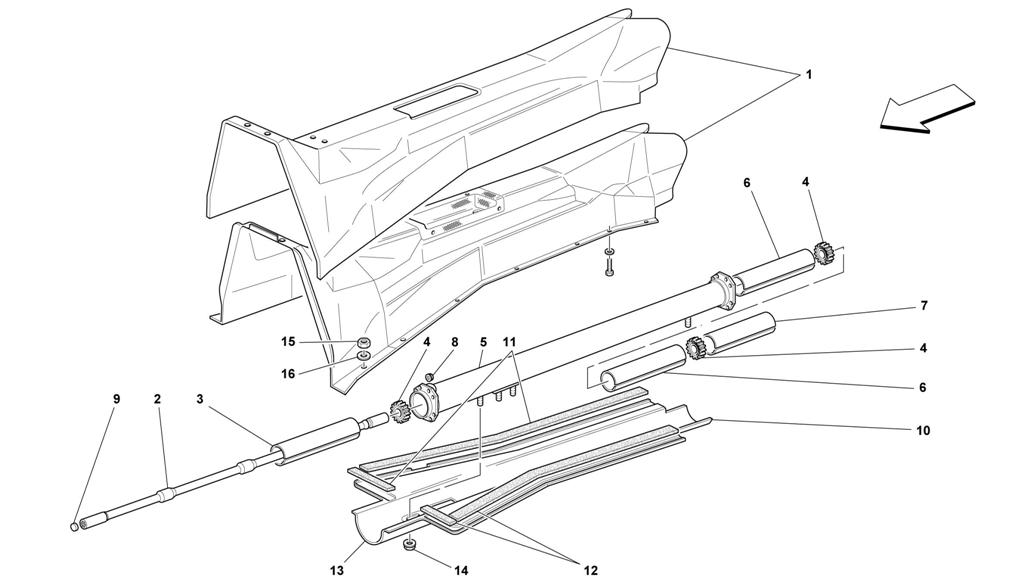

ENGINE/GEARBOX CONNECTING TUBE AND INSULATION

Go to Split View

ENGINE/GEARBOX CONNECTING TUBE AND INSULATION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65193000 *Qty: 1 COMPLETE TUNNEL HEAT SHIELD -Not as spare part now -Replaced by 65895100 Call
Location: 1 Prev | Next Part: 65859100 *Qty: 1 COMPLETE TUNNEL HEAT SHIELD Call
Location: 2 Prev | Next Part: 173817 *Qty: 1 COMPLETE PROPELLER SHAFT -Valid from gearbox N? 400 $4,274.46
Location: 2 Prev | Next Part: 169640 *Qty: 1 COMPLETE PROPELLER SHAFT -Valid till gearbox N? 399 $3,859.20
Location: 3 Prev | Next Part: 167000 *Qty: 1 ENGINE SIDE SPACER $80.69
Location: 4 Prev | Next Part: 166569 *Qty: 3 BEARING $125.67
Location: 5 Prev | Next Part: 170076 *Qty: 1 ENGINE-GEARBOX CONNECTING PIPE $2,409.03
Location: 6 Prev | Next Part: 166998 *Qty: 2 INTERMEDIATE SPACER $98.26
Location: 7 Prev | Next Part: 166999 *Qty: 1 GEARBOX SIDE SPACER $188.97
Location: 8 Prev | Next Part: 156462 *Qty: 16 NUT $1.17
Location: 9 Prev | Next Part: 144443 *Qty: 2 SPACER $4.73
Location: 10 Prev | Next Part: 197502 *Qty: 1 SHIELD FOR PIPE PROTECTION -Valid from Ass. N? 24599 $667.54
Location: 10 Prev | Next Part: 169790 *Qty: 1 SHIELD FOR PIPE PROTECTION -Valid till Ass. N? 24598 $625.46
Location: 11 Prev | Next Part: 167499 *Qty: 1 R.H. GASKET $329.58
Location: 12 Prev | Next Part: 172910 *Qty: 1 L.H. GASKET Call
Location: 13 Prev | Next Part: 172911 *Qty: 1 FRONT GASKET $91.74
Location: 14 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 15 Prev | Next Part: 13046011 *Qty: 4 NUT $0.90
Location: 16 Prev | Next Part: 12640624 *Qty: 4 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
