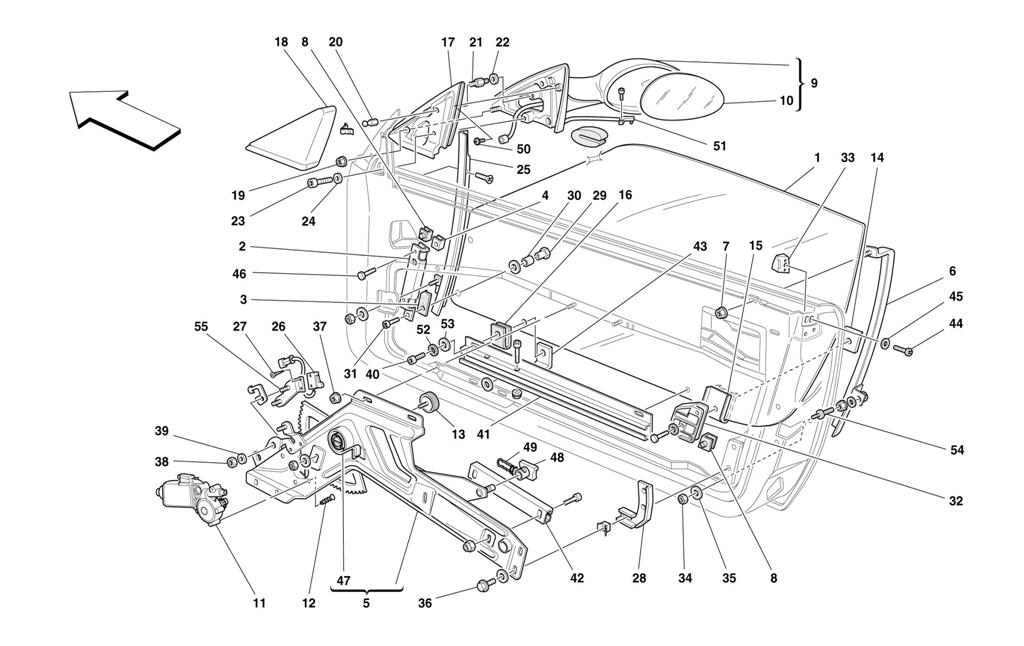

DOORS - POWER WINDOW AND REARVIEW MIRROR

Go to Split View

DOORS - POWER WINDOW AND REARVIEW MIRROR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 64573500 *Qty: 1 R.H. SIDE GLASS $364.41
Location: 1 Prev | Next Part: 64573600 *Qty: 1 L.H. SIDE GLASS $364.41
Location: 2 Prev | Next Part: 63768100 *Qty: 1 R.H. FRONT GUIDE SHOE $53.81
Location: 2 Prev | Next Part: 63768200 *Qty: 1 L.H. FRONT GUIDE SHOE $53.81
Location: 3 Prev | Next Part: 63486900 *Qty: 2 GASKET $1.81
Location: 4 Prev | Next Part: 63767900 *Qty: 8 CLIP $1.85
Location: 5 Prev | Next Part: 64742800 *Qty: 1 COMPLETE R.H. DEVICE FOR GLASS LIFT $1,583.28
Location: 5 Prev | Next Part: 64742900 *Qty: 1 COMPLETE L.H. DEVICE FOR GLASS LIFT $1,583.28
Location: 6 Prev | Next Part: 64579700 *Qty: 1 R.H. REAR GUIDE $111.91
Location: 6 Prev | Next Part: 64579800 *Qty: 1 L.H. REAR GUIDE $111.91
Location: 7 Prev | Next Part: 13046114 *Qty: 2 NUT $0.90
Location: 8 Prev | Next Part: 63890100 *Qty: 8 GASKET $7.79
Location: 9 Prev | Next Part: 65242310 *Qty: 1 R.H. OUTER REAR VIEW MIRROR -Valid for GB $1,527.66
Location: 9 Prev | Next Part: 64715210 *Qty: 1 R.H. OUTER REAR VIEW MIRROR -Not for USA, CDN, AUS and GB $1,869.92
Location: 9 Prev | Next Part: 64715310 *Qty: 1 L.H. OUTER REAR VIEW MIRROR -Not for USA, CDN, AUS and GB $1,869.92
Location: 9 Prev | Next Part: 65242410 *Qty: 1 L.H. OUTER REAR VIEW MIRROR -Valid for GB Call
Location: 9 Prev | Next Part: 65248710 *Qty: 1 R.H. OUTER REAR VIEW MIRROR -Valid for USA and CDN $1,495.94
Location: 9 Prev | Next Part: 65248810 *Qty: 1 L.H. OUTER REAR VIEW MIRROR -Valid for USA and CDN $1,495.94
Location: 9 Prev | Next Part: 65320210 *Qty: 1 R.H. OUTER REAR VIEW MIRROR -Valid for AUS $1,495.94
Location: 9 Prev | Next Part: 65320310 *Qty: 1 L.H. OUTER REAR VIEW MIRROR -Valid for AUS $1,495.96
Location: 10 Prev | Next Part: 66213200 *Qty: 1 R.H. OUTER REAR VIEW MIRROR GLASS -Not for USA, CDN, AUS and GB $146.08
Location: 10 Prev | Next Part: 66213300 *Qty: 1 L.H. OUTER REAR VIEW MIRROR GLASS -Not for USA, CDN, AUS and GB $146.08
Location: 10 Prev | Next Part: 66213400 *Qty: 1 R.H. OUTER REAR VIEW MIRROR GLASS -Valid for AUS $146.08
Location: 10 Prev | Next Part: 66213500 *Qty: 1 L.H. OUTER REAR VIEW MIRROR GLASS -Valid for GB $126.73
Location: 10 Prev | Next Part: 66213600 *Qty: 1 R.H. OUTER REAR VIEW MIRROR GLASS -Valid for USA and CDN $126.73
Location: 11 Prev | Next Part: 63211800 *Qty: 1 R.H. GLASS LIFTING MOTOR $1,489.29
Location: 11 Prev | Next Part: 63211900 *Qty: 1 L.H. GLASS LIFTING MOTOR $1,082.96
Location: 12 Prev | Next Part: 15917904 *Qty: 8 SCREW $0.90
Location: 13 Prev | Next Part: 65100400 *Qty: 2 STOP BUFFER $36.22
Location: 14 Prev | Next Part: 63768000 *Qty: 2 FIXING PLATE $7.45
Location: 15 Prev | Next Part: 63168800 *Qty: 2 PRE-LOADING REGULATOR Call
Location: 16 Prev | Next Part: 63120100 *Qty: 4 GASKET -Valid till car Ass. Nr. 33498 $2.44
Location: 16 Prev | Next Part: 65807300 *Qty: 4 GASKET -Valid from car Ass. Nr. 33499 $2.08
Location: 17 Prev | Next Part: 64740600 *Qty: 1 R.H. GASKET $447.88
Location: 17 Prev | Next Part: 64740700 *Qty: 1 L.H. GASKET $447.88
Location: 18 Prev | Next Part: 64586400 *Qty: 1 L.H. INNER MOULDING TRIANGLE $69.92
Location: 18 Prev | Next Part: 64586500 *Qty: 1 R.H. INNER MOULDING TRIANGLE $69.92
Location: 19 Prev | Next Part: 13046011 *Qty: 2 NUT $0.90
Location: 20 Prev | Next Part: 65048400 *Qty: 2 SPHERIC HEAD NUT $3.94
Location: 21 Prev | Next Part: 64586300 *Qty: 2 SCREW $5.83
Location: 22 Prev | Next Part: 14496101 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 13026121 *Qty: 2 SCREW $1.94
Location: 24 Prev | Next Part: 14497801 *Qty: 2 WASHER $2.41
Location: 25 Prev | Next Part: 63579500 *Qty: 1 R.H. FRONT GLASS GUIDE $75.87
Location: 25 Prev | Next Part: 63579600 *Qty: 1 L.H. FRONT GLASS GUIDE $75.87
Location: 26 Prev | Next Part: 168617 *Qty: 2 MICRO-SWITCH $87.30
Location: 27 Prev | Next Part: 13270811 *Qty: 4 SCREW $0.90
Location: 28 Prev | Next Part: 65291400 *Qty: 1 R.H. BRACKET $13.12
Location: 28 Prev | Next Part: 65292000 *Qty: 1 L.H. BRACKET $13.12
Location: 29 Prev | Next Part: 62932900 *Qty: 4 BUSHING $2.81
Location: 30 Prev | Next Part: 62932800 *Qty: 4 SPACER $1.81
Location: 31 Prev | Next Part: 13271811 *Qty: 4 SCREW $0.90
Location: 32 Prev | Next Part: 63853600 *Qty: 1 R.H. MOVING GUIDE $9.80
Location: 32 Prev | Next Part: 63853700 *Qty: 1 L.H. MOVING GUIDE $9.80
Location: 33 Prev | Next Part: 65174300 *Qty: 1 R.H. SMALL BLOCK $2.36
Location: 33 Prev | Next Part: 65174400 *Qty: 1 L.H. SMALL BLOCK $2.42
Location: 34 Prev | Next Part: 102948 *Qty: 2 NUT $0.60
Location: 35 Prev | Next Part: 12643724 *Qty: 2 WASHER $0.90
Location: 36 Prev | Next Part: 11612424 *Qty: 8 SCREW $2.17
Location: 37 Prev | Next Part: 102948 *Qty: 2 NUT $0.60
Location: 38 Prev | Next Part: 16101711 *Qty: 4 NUT $0.90
Location: 39 Prev | Next Part: 14496101 *Qty: 2 WASHER $0.90
Location: 40 Prev | Next Part: 14305224 *Qty: 2 SCREW -Valid till car Ass. Nr. 33498 $0.90
Location: 40 Prev | Next Part: 14305424 *Qty: 2 SCREW -Valid from car Ass. Nr. 33499 Superseded
Location: 41 Prev | Next Part: 65036100 *Qty: 1 L.H. SLIDING GUIDE $151.44
Location: 41 Prev | Next Part: 65036200 *Qty: 1 R.H. SLIDING GUIDE Call
Location: 42 Prev | Next Part: 65046600 *Qty: 2 SLIDING GUIDE $23.04
Location: 43 Prev | Next Part: 65044000 *Qty: 4 PLATE Call
Location: 44 Prev | Next Part: 15687870 *Qty: 2 SCREW $0.90
Location: 45 Prev | Next Part: 10519278 *Qty: 2 WASHER $0.90
Location: 46 Prev | Next Part: 10903224 *Qty: 2 SCREW Superseded
Location: 47 Prev | Next Part: 63206000 *Qty: 2 HELICOIDAL SPRING $4.98
Location: 48 Prev | Next Part: 64081100 *Qty: 6 SMALL BLOCK FOR GLASS GUIDE $2.91
Location: 49 Prev | Next Part: 64081200 *Qty: 6 CLIP FOR SMALL BLOCK $0.90
Location: 50 Prev | Next Part: 65408900 *Qty: 2 SCREW $2.33
Location: 51 Prev | Next Part: 65889400 *Qty: 1 OUTSIDE TEMPERATURE FEELER -L.H. Side $65.90
Location: 52 Prev | Next Part: 127494 *Qty: 2 WASHER -Valid from car Ass. Nr. 33499 $0.90
Location: 53 Prev | Next Part: 12643724 *Qty: 2 WASHER $0.90
Location: 54 Prev | Next Part: 62771300 *Qty: 2 STUD $10.72
Location: 55 Prev | Next Part: 64749300 *Qty: 1 R.H. MICROSWITCH BRACKET Call
Location: 55 Prev | Next Part: 64749400 *Qty: 1 L.H. MICROSWITCH BRACKET Call

* Quantity shown indicates the number of pieces used in the diagram.
