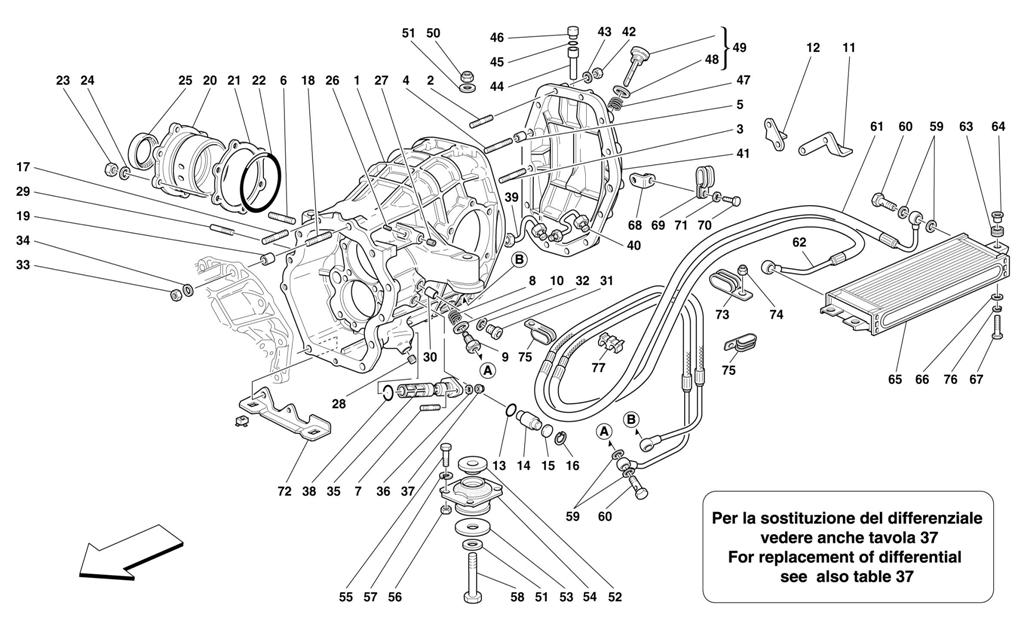

DIFFERENTIAL CARRIER AND CLUTCH COOLING RADIATOR

Go to Split View

DIFFERENTIAL CARRIER AND CLUTCH COOLING RADIATOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 172617 *Qty: 1 COMPLETE GEARBOX ASSEMBLY $3,662.12
Location: 1 Prev | Next Part: 161980 *Qty: 1 GEAR BOX 4th ELEMENT -With complete gear box Call
Location: 2 Prev | Next Part: 13543624 *Qty: 10 STUD $0.90
Location: 3 Prev | Next Part: 13543724 *Qty: 2 STUD $0.90
Location: 4 Prev | Next Part: 13543824 *Qty: 2 STUD Superseded
Location: 5 Prev | Next Part: 102704 *Qty: 2 CENTERING DOWEL $2.18
Location: 6 Prev | Next Part: 13546224 *Qty: 12 STUD $19.09
Location: 7 Prev | Next Part: 11001024 *Qty: 2 STUD $3.25
Location: 8 Prev | Next Part: 112254 *Qty: 2 THREADED INSERT $5.06
Location: 9 Prev | Next Part: 150853 *Qty: 2 UNION $17.00
Location: 10 Prev | Next Part: 10263460 *Qty: 2 GASKET Superseded
Location: 11 Prev | Next Part: 169466 *Qty: 1 L.H. BRACKET $17.43
Location: 12 Prev | Next Part: 169465 *Qty: 1 R.H. BRACKET $17.43
Location: 13 Prev | Next Part: 134232 *Qty: 1 O.R. GASKET $1.65
Location: 14 Prev | Next Part: 153719 *Qty: 1 PIN $20.36
Location: 15 Prev | Next Part: 154698 *Qty: 1 PAD Call
Location: 16 Prev | Next Part: 11057476 *Qty: 1 STOP RING $0.90
Location: 17 Prev | Next Part: 13543524 *Qty: 7 STUD $0.96
Location: 18 Prev | Next Part: 13543624 *Qty: 10 STUD $0.90
Location: 19 Prev | Next Part: 102704 *Qty: 2 CENTERING DOWEL $2.18
Location: 20 Prev | Next Part: 177438 *Qty: 2 DIFFERENTIAL COVER WITH BEARING -Valid for "ZF" differential $493.28
Location: 20 Prev | Next Part: 181626 *Qty: 1 R.H. DIFFERENTIAL COVER WITH BEARING -Valid for "GRAZIANO Trasmissioni" differential $1,345.26
Location: 20 Prev | Next Part: 181627 *Qty: 1 L.H. DIFFERENTIAL COVER WITH BEARING -Valid for "GRAZIANO Trasmissioni" differential $1,345.26
Location: 20 Prev | Next Part: 145531 *Qty: 2 DIFFERENTIAL COVER -Not as spare part now -Replaced by 177438 Call
Location: 21 Prev | Next Part: 175378 *Qty: 0 DITTO THINCKNESS mm. 1.75 $58.54
Location: 21 Prev | Next Part: 150100 *Qty: 0 DITTO THINCKNESS mm. 1.4 $78.31
Location: 21 Prev | Next Part: 150101 *Qty: 0 DITTO THINCKNESS mm. 1.5 $78.31
Location: 21 Prev | Next Part: 150102 *Qty: 0 DITTO THINCKNESS mm. 1.6 $78.31
Location: 21 Prev | Next Part: 150103 *Qty: 0 DITTO THINCKNESS mm. 1.7 $223.68
Location: 21 Prev | Next Part: 150104 *Qty: 0 DITTO THINCKNESS mm. 1.8 $65.61
Location: 21 Prev | Next Part: 150105 *Qty: 0 DITTO THINCKNESS mm. 1.9 $107.25
Location: 21 Prev | Next Part: 150106 *Qty: 0 DITTO THINCKNESS mm. 1.45 $101.82
Location: 21 Prev | Next Part: 150107 *Qty: 0 DITTO THINCKNESS mm. 1.55 $107.25
Location: 21 Prev | Next Part: 150108 *Qty: 0 DITTO THINCKNESS mm. 1.65 $78.31
Location: 21 Prev | Next Part: 150099 *Qty: 2 DIFFERENTIAL COVER THRUST THINCKNESS mm. 1,3 $85.25
Location: 22 Prev | Next Part: 139453 *Qty: 2 O.R. GASKET $3.41
Location: 23 Prev | Next Part: 133988 *Qty: 12 NUT $0.90
Location: 24 Prev | Next Part: 12601474 *Qty: 12 WASHER $0.90
Location: 25 Prev | Next Part: 133628 *Qty: 1 R.H. GASKET -Valid for "ZF" differential $121.20
Location: 25 Prev | Next Part: 181617 *Qty: 1 L.H. GASKET -Valid for "GRAZIANO Trasmissioni" differential $50.80
Location: 25 Prev | Next Part: 181618 *Qty: 1 R.H. GASKET -Valid for "GRAZIANO Trasmissioni" differential $56.44
Location: 25 Prev | Next Part: 141509 *Qty: 1 L.H. GASKET -Valid for "ZF" differential $121.20
Location: 26 Prev | Next Part: 65928500 *Qty: 2 PLUG $21.12
Location: 27 Prev | Next Part: 14326150 *Qty: 1 PLUG $0.90
Location: 28 Prev | Next Part: 14326050 *Qty: 1 PLUG $1.72
Location: 29 Prev | Next Part: 16183021 *Qty: 1 SCREW $0.97
Location: 30 Prev | Next Part: 115376 *Qty: 3 BUSHING $27.13
Location: 31 Prev | Next Part: 150731 *Qty: 1 PLUG $4.87
Location: 32 Prev | Next Part: 10282460 *Qty: 1 GASKET $1.17
Location: 33 Prev | Next Part: 16100814 *Qty: 13 NUT $0.90
Location: 34 Prev | Next Part: 12601374 *Qty: 13 WASHER $0.90
Location: 35 Prev | Next Part: 143939 *Qty: 1 OIL FILTER ON THE GEAR BOX $117.00
Location: 36 Prev | Next Part: 14496324 *Qty: 2 WASHER $4.02
Location: 37 Prev | Next Part: 169180 *Qty: 2 NUT $0.90
Location: 38 Prev | Next Part: 147278 *Qty: 1 O.R. GASKET $0.90
Location: 39 Prev | Next Part: 162321 *Qty: 1 OIL DELIVERY TUBE $61.09
Location: 40 Prev | Next Part: 162322 *Qty: 1 OIL RETURN TUBE $58.59
Location: 41 Prev | Next Part: 168107 *Qty: 1 GEARBOX REAR COVER $630.34
Location: 42 Prev | Next Part: 16100814 *Qty: 13 NUT $0.90
Location: 43 Prev | Next Part: 12601374 *Qty: 13 WASHER $0.90
Location: 44 Prev | Next Part: 153500 *Qty: 1 EXTENSION FOR OIL EXHAUST $12.08
Location: 45 Prev | Next Part: 13415400 *Qty: 1 OIL DEFLECTOR DISC FOR VENT $0.90
Location: 46 Prev | Next Part: 13414691 *Qty: 1 OIL BREATHER $15.57
Location: 47 Prev | Next Part: 112254 *Qty: 2 THREADED INSERT $5.06
Location: 48 Prev | Next Part: 10261860 *Qty: 1 GASKET $0.90
Location: 49 Prev | Next Part: 172478 *Qty: 1 PLUG $112.60
Location: 50 Prev | Next Part: 169193 *Qty: 2 NUT $1.91
Location: 51 Prev | Next Part: 10520224 *Qty: 4 WASHER Superseded
Location: 52 Prev | Next Part: 172935 *Qty: 2 UPPER SPACER $15.80
Location: 53 Prev | Next Part: 132269 *Qty: 2 LOWER SPACER Call
Location: 54 Prev | Next Part: 169492 *Qty: 2 WICK BODY $112.01
Location: 55 Prev | Next Part: 15970634 *Qty: 8 SCREW $0.90
Location: 56 Prev | Next Part: 133988 *Qty: 12 NUT $0.90
Location: 57 Prev | Next Part: 127497 *Qty: 8 WASHER $0.90
Location: 58 Prev | Next Part: 156458 *Qty: 2 SCREW $16.76
Location: 59 Prev | Next Part: 10261060 *Qty: 8 GASKET $0.90
Location: 60 Prev | Next Part: 132559 *Qty: 4 UNION $52.36
Location: 61 Prev | Next Part: 172323 *Qty: 1 OIL DELIVERY TUBE TO RADIATOR -Not as spare part now replaced by 173862 Call
Location: 61 Prev | Next Part: 173862 *Qty: 1 OIL DELIVERY TUBE TO RADIATOR $778.82
Location: 62 Prev | Next Part: 173863 *Qty: 1 OIL RETURN TUBE FROM RADIATOR $803.55
Location: 63 Prev | Next Part: 103549 *Qty: 3 CABLE GROMMET $1.57
Location: 64 Prev | Next Part: 149707 *Qty: 3 SPACER $1.41
Location: 65 Prev | Next Part: 168744 *Qty: 1 OIL RADIATOR $570.91
Location: 66 Prev | Next Part: 12643724 *Qty: 3 WASHER $0.90
Location: 67 Prev | Next Part: 10902521 *Qty: 3 SCREW $0.90
Location: 68 Prev | Next Part: 142060 *Qty: 1 BRACKET $8.33
Location: 69 Prev | Next Part: 10441290 *Qty: 2 BRACKET WITH SHEATH $0.90
Location: 70 Prev | Next Part: 10902124 *Qty: 2 SCREW $0.90
Location: 71 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 72 Prev | Next Part: 169464 *Qty: 1 FRONT BRACKET $18.81
Location: 73 Prev | Next Part: 138478 *Qty: 1 CLAMP $6.49
Location: 74 Prev | Next Part: 102948 *Qty: 1 NUT $0.90
Location: 75 Prev | Next Part: 61712500 *Qty: 2 BRACKET WITH SHEATH $2.16
Location: 76 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 77 Prev | Next Part: 140728 *Qty: 1 FIXING CLIP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
