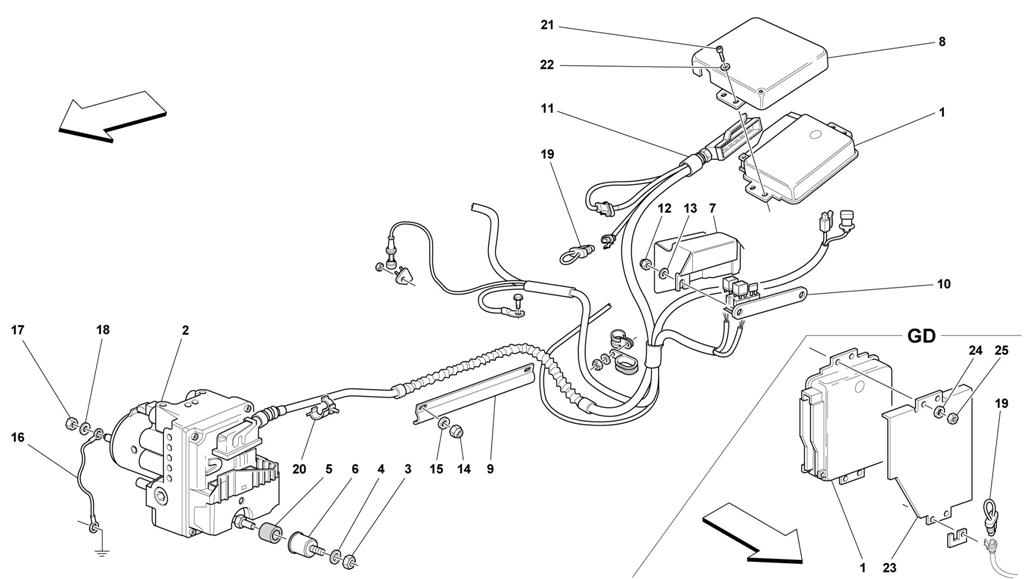

CONTROL UNIT AND HYDRAULIC EQUIPMENT FOR ABS/ASR SYSTEM

Go to Split View

CONTROL UNIT AND HYDRAULIC EQUIPMENT FOR ABS/ASR SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 164682 *Qty: 1 ABS/ASR ELECTRONIC CONTROL STATION $4,301.71
Location: 2 Prev | Next Part: 164001 *Qty: 1 ABS/ASR HYDRAULIC CONTROL STATION $3,583.82
Location: 3 Prev | Next Part: 102948 *Qty: 3 NUT $0.90
Location: 4 Prev | Next Part: 14496424 *Qty: 3 WASHER Superseded
Location: 5 Prev | Next Part: 154553 *Qty: 3 RUBBER PAD $2.18
Location: 6 Prev | Next Part: 127614 *Qty: 3 CUP $2.68
Location: 7 Prev | Next Part: 155056 *Qty: 1 ABS RELAY COVER $24.22
Location: 8 Prev | Next Part: 171817 *Qty: 1 ABS/ASR CONTROL STATION COVER -Valid for GD $48.07
Location: 8 Prev | Next Part: 168912 *Qty: 1 ABS/ASR CONTROL STATION COVER -Not for GD $40.29
Location: 9 Prev | Next Part: 171020 *Qty: 1 SHIELD FOR WIRING PASSAGE $23.98
Location: 10 Prev | Next Part: 155055 *Qty: 1 SUPPORT BRACKET $9.01
Location: 11 Prev | Next Part: 179064 *Qty: 1 ABS/ASR INSTALLATION CABLES -Valid for USA M.Y. 99, CDN M.Y. 99, USA M.Y. 2000 and CDN M.Y. 2000 $677.20
Location: 11 Prev | Next Part: 164672 *Qty: 1 ABS/ASR INSTALLATION CABLES -Not for GD -Not for USA M.Y. 99, CDN M.Y. 99, USA M.Y. 2000 and CDN $627.23
Location: 11 Prev | Next Part: 171388 *Qty: 1 ABS/ASR INSTALLATION CABLES -Valid for GD $646.63
Location: 12 Prev | Next Part: 113647 *Qty: 2 NUT $0.90
Location: 13 Prev | Next Part: 14496324 *Qty: 2 WASHER $4.15
Location: 14 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 15 Prev | Next Part: 10519424 *Qty: 2 WASHER Call
Location: 16 Prev | Next Part: 166854 *Qty: 1 GROUND CABLE $5.59
Location: 17 Prev | Next Part: 62790300 *Qty: 1 NUT $0.90
Location: 18 Prev | Next Part: 12642877 *Qty: 1 WASHER $0.90
Location: 19 Prev | Next Part: 170789 *Qty: 1 CONNECTOR $11.21
Location: 20 Prev | Next Part: 157385 *Qty: 3 CLIP $0.90
Location: 21 Prev | Next Part: 14305287 *Qty: 4 SCREW Call
Location: 22 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 23 Prev | Next Part: 175356 *Qty: 1 ABS/ASR CONTROL UNIT PROTECTION -Valid for GD Call
Location: 24 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 25 Prev | Next Part: 102741 *Qty: 2 NUT $0.90

* Quantity shown indicates the number of pieces used in the diagram.
