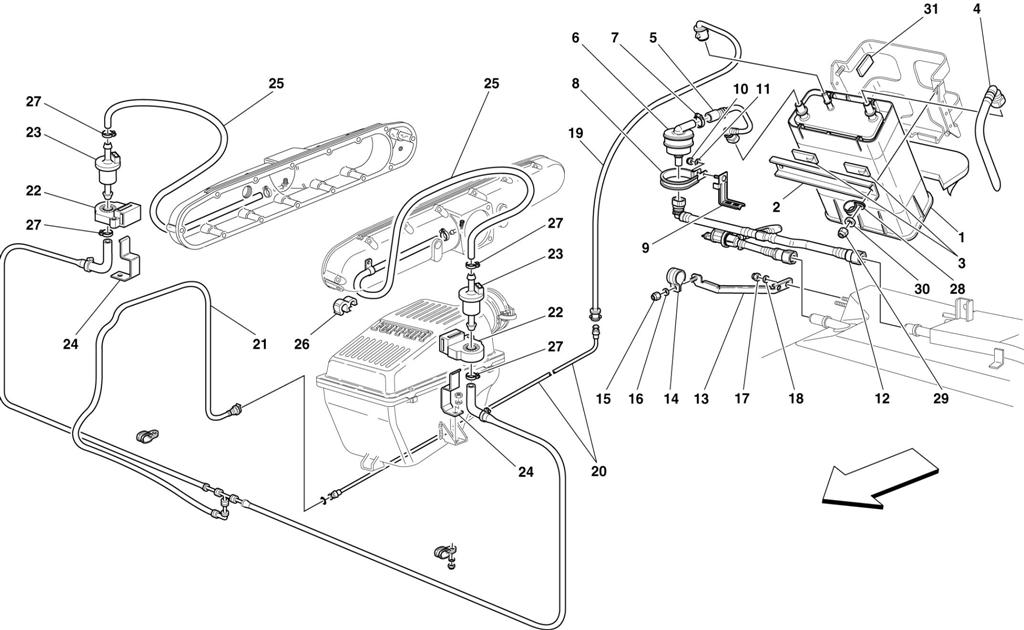

ANTIEVAPORATION DEVICE -VALID FOR USA M.Y. 2000 AND CDN M.Y. 2000-

Go to Split View

ANTIEVAPORATION DEVICE -VALID FOR USA M.Y. 2000 AND CDN M.Y. 2000-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 178536 *Qty: 1 FUEL VAPOR FILTER Call
Location: 2 Prev | Next Part: 180653 *Qty: 2 BRACKET $4.84
Location: 3 Prev | Next Part: 180655 *Qty: 4 THICKNESS $4.11
Location: 4 Prev | Next Part: 180487 *Qty: 1 EXHAUST TUBE $45.89
Location: 5 Prev | Next Part: 182074 *Qty: 1 COMPLETE TUBE $109.03
Location: 6 Prev | Next Part: 180573 *Qty: 1 ANTI FLOWING BACK VALVE $128.32
Location: 7 Prev | Next Part: 13000390 *Qty: 1 SCREW COLLAR $0.97
Location: 8 Prev | Next Part: 180426 *Qty: 1 BRACKET WITH SHEATH $8.47
Location: 9 Prev | Next Part: 180427 *Qty: 1 BRACKET Call
Location: 10 Prev | Next Part: 102948 *Qty: 1 NUT $0.90
Location: 11 Prev | Next Part: 14499324 *Qty: 1 WASHER Superseded
Location: 12 Prev | Next Part: 181961 *Qty: 1 COMPLETE VENT PIPE $363.70
Location: 13 Prev | Next Part: 182243 *Qty: 1 BRACKET $12.21
Location: 14 Prev | Next Part: 181607 *Qty: 1 BRACKET WITH SHEATH $9.73
Location: 15 Prev | Next Part: 102948 *Qty: 1 NUT $0.90
Location: 16 Prev | Next Part: 14499324 *Qty: 1 WASHER Superseded
Location: 17 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 18 Prev | Next Part: 125516 *Qty: 2 WASHER $6.18
Location: 19 Prev | Next Part: 180488 *Qty: 1 PIPE FROM VAPOR FILTER TO UNDERFLOOR PIPE $68.86
Location: 20 Prev | Next Part: 178858 *Qty: 2 INTERMEDIATE UNDERFLOOR TUBE -Not as spare part now -Replaced by 183489 Call
Location: 20 Prev | Next Part: 183489 *Qty: 2 INTERMEDIATE UNDERFLOOR TUBE $14.81
Location: 21 Prev | Next Part: 180799 *Qty: 1 UNIONS COMPLETE TUBE $204.97
Location: 22 Prev | Next Part: 174623 *Qty: 2 PAD $12.72
Location: 23 Prev | Next Part: 162412 *Qty: 2 WASHER VALVE $45.16
Location: 24 Prev | Next Part: 178792 *Qty: 2 PAD SUPPORT BRACKET $5.76
Location: 25 Prev | Next Part: 179768 *Qty: 2 PIPE FROM AIR CAPACITY TO VALVE Call
Location: 26 Prev | Next Part: 180148 *Qty: 2 CLIP Call
Location: 27 Prev | Next Part: 13434670 *Qty: 2 COLLAR FOR SLEEVE Call
Location: 28 Prev | Next Part: 181245 *Qty: 1 BRACKET WITH SHEATH $6.98
Location: 29 Prev | Next Part: 169180 *Qty: 4 NUT $0.90
Location: 30 Prev | Next Part: 12637824 *Qty: 4 WASHER $0.90
Location: 31 Prev | Next Part: 180654 *Qty: 4 THICKNESS $0.90

* Quantity shown indicates the number of pieces used in the diagram.
