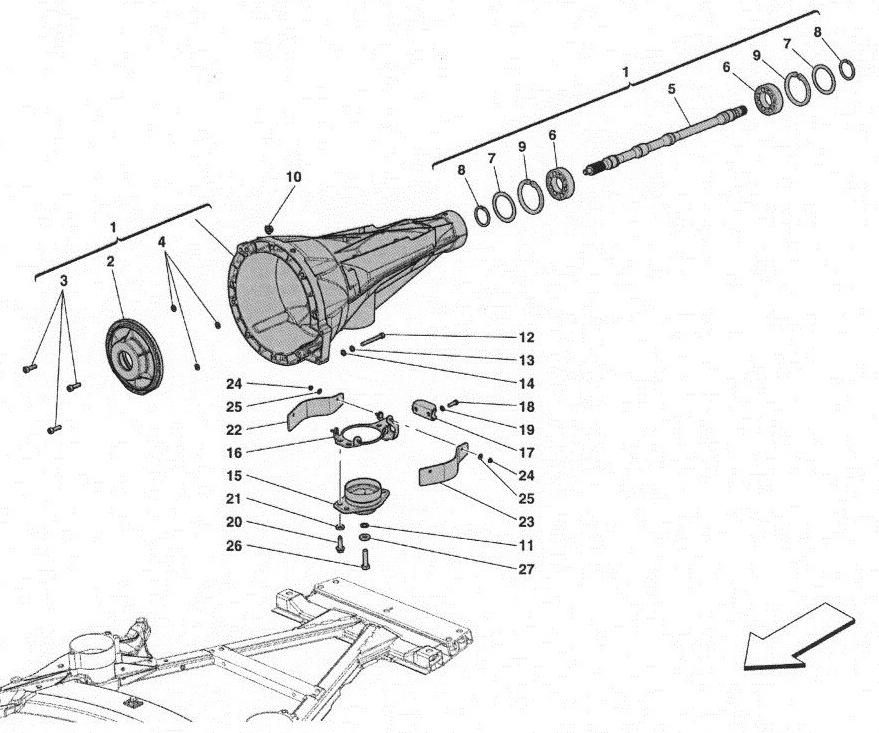

TRANSMISSION HOUSING

Go to Split View

TRANSMISSION HOUSING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 277346 *Qty: 0 COMPL. TRANSMISSION HOUSING Call
Location: 2 Prev | Next Part: 251921 *Qty: 0 TRANSMISSION HOUSING FLANGE $581.09
Location: 3 Prev | Next Part: 14306424 *Qty: 0 SCREW $0.90
Location: 4 Prev | Next Part: 12638524 *Qty: 0 WASHER $0.90
Location: 5 Prev | Next Part: 277347 *Qty: 0 TRANSMISSION HOUSING SHAFT $4,258.06
Location: 6 Prev | Next Part: 253629 *Qty: 0 COMPLETE BEARING $670.70
Location: 7 Prev | Next Part: 253627 *Qty: 0 CONTAINMENT RING $242.12
Location: 8 Prev | Next Part: 11068874 *Qty: 0 SEEGER RING $20.01
Location: 9 Prev | Next Part: 11062474 *Qty: 0 SNAP RING $6.82
Location: 10 Prev | Next Part: 14059421 *Qty: 0 NUT $0.90
Location: 11 Prev | Next Part: 127498 *Qty: 0 WASHER $0.90
Location: 12 Prev | Next Part: 14309024 *Qty: 0 SCREW -M8 X 70- $1.76
Location: 13 Prev | Next Part: 12638524 *Qty: 0 WASHER $0.90
Location: 14 Prev | Next Part: 12601374 *Qty: 0 WASHER $0.90
Location: 15 Prev | Next Part: 247141 *Qty: 0 RUBBER BUSHING $197.83
Location: 16 Prev | Next Part: 269400 *Qty: 0 LIMITER BRACKET Call
Location: 17 Prev | Next Part: 269246 *Qty: 0 RETAINER BRACKET Call
Location: 18 Prev | Next Part: 13028734 *Qty: 0 SCREW -M8 X 25- $0.90
Location: 19 Prev | Next Part: 14499424 *Qty: 0 WASHER Superseded
Location: 20 Prev | Next Part: 18754424 *Qty: 0 SCREW -M10 X 1.25 X 35- -No longer supplied- -Replaced by 18754324- Call
Location: 20 Prev | Next Part: 18754324 *Qty: 0 SCREW -M10 X 1,25 X 32- $2.07
Location: 21 Prev | Next Part: 269664 *Qty: 0 WASHER Call
Location: 22 Prev | Next Part: 253910 *Qty: 0 RH TRANSMISSION HOUSING BUSHING HEAT SHIELD Call
Location: 23 Prev | Next Part: 253911 *Qty: 0 LH TRANSMISSION HOUSING BUSHING HEAT SHIELD Call
Location: 24 Prev | Next Part: 14059114 *Qty: 0 NUT $0.90
Location: 25 Prev | Next Part: 12638124 *Qty: 0 WASHER $0.90
Location: 26 Prev | Next Part: 11599524 *Qty: 0 SCREW -M12 X 1.75 X 45- $0.90
Location: 27 Prev | Next Part: 12648524 *Qty: 0 WASHER Call

* Quantity shown indicates the number of pieces used in the diagram.
