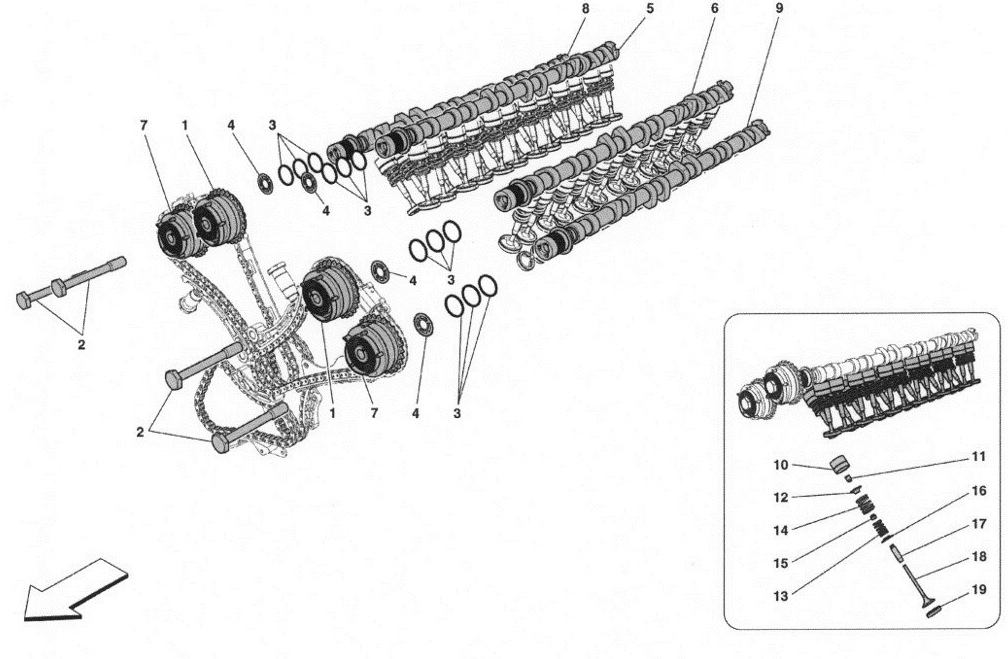

TIMING SYSTEM - TAPPETS

Location Part # Quantity* Description Price Add To Cart
1 241906 0 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT $494.75
2 254892 0 SCREW -M14 X 1.5- $16.54
3 197975 0 SEAL RING $8.99
4 240559 0 DIAMOND COATED WASHER $11.27
5 261603 0 RH INTAKE CAMSHAFT $8,722.28
6 261604 0 LH INTAKE CAMSHAFT $8,722.28
7 248020 0 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT $496.88
8 261605 0 RH EXHAUST CAMSHAFT $8,722.28
9 261606 0 LH EXHAUST CAMSHAFT $8,722.28
10 247480 0 HYDRAULIC TAPPET $96.00
11 179763 0 VALVE SPRING HALF-CONE Unavailable
12 237390 0 UPPER VALVE SPRING CAP $9.85
13 228824 0 INTERNAL SPRING $7.11
14 228823 0 EXTERNAL SPRING $9.40
15 221473 0 OIL SEAL $1.75
16 247484 0 LOWER VALVE SPRING CAP $5.99
17 6213498 0 VALVE GUIDE Unavailable
18 198581 0 INTAKE VALVE $16.02
18 198582 0 EXHAUST VALVE $38.41
19 6222847 0 INTAKE VALVE SEAT $9.38
19 6222848 0 EXHAUST VALVE SEAT $10.07

* Quantity shown indicates the number of pieces used in the diagram.
