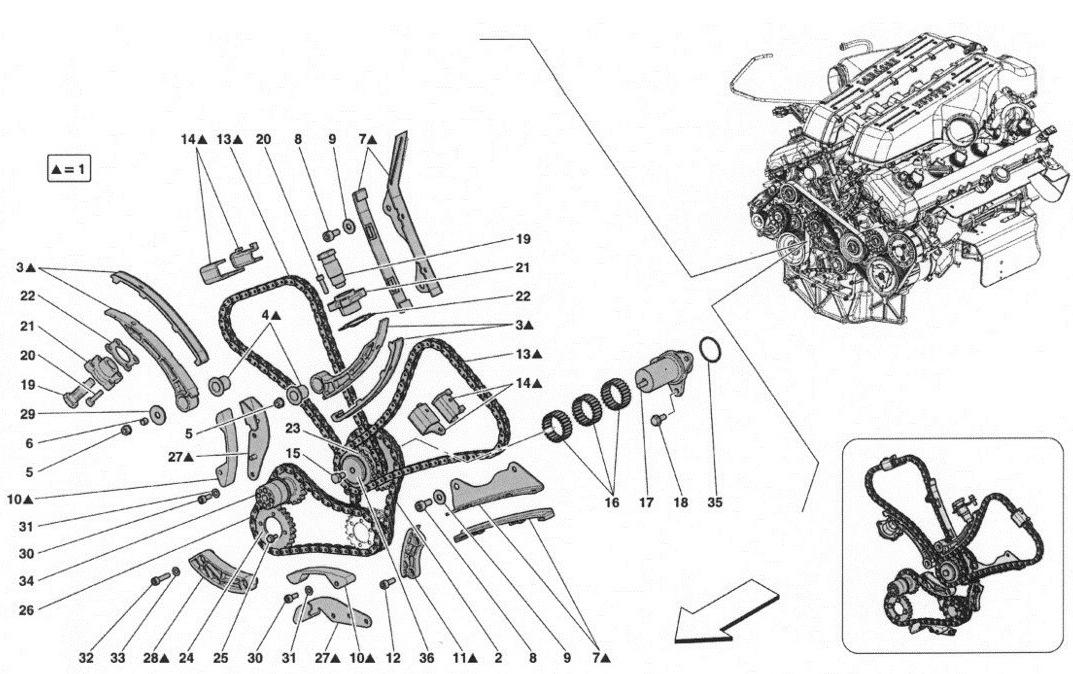

TIMING SYSTEM - DRIVE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 258396 *Qty: 0 VALVE TIMING AND PUMP DRIVE SYSTEM $1,527.35
Location: 2 Prev | Next Part: 175286 *Qty: 0 CHAIN $32.90
Location: 3 Prev | Next Part: 260614 *Qty: 0 MOBILE SHOE Call
Location: 4 Prev | Next Part: 175303 *Qty: 0 BUSHING $13.85
Location: 5 Prev | Next Part: 177778 *Qty: 0 NUT $2.13
Location: 6 Prev | Next Part: 183929 *Qty: 0 BUSHING $10.03
Location: 7 Prev | Next Part: 198034 *Qty: 0 FIXED SHOE $74.98
Location: 8 Prev | Next Part: 14306224 *Qty: 0 SCREW -M8 X 16- $0.90
Location: 9 Prev | Next Part: 163759 *Qty: 0 WASHER $5.03
Location: 10 Prev | Next Part: 257626 *Qty: 0 SHOE Call
Location: 11 Prev | Next Part: 186181 *Qty: 0 FIXED SHOE $25.93
Location: 12 Prev | Next Part: 14432224 *Qty: 0 SCREW -M6 X 22- Superseded
Location: 13 Prev | Next Part: 254263 *Qty: 0 CHAIN Call
Location: 14 Prev | Next Part: 239566 *Qty: 0 FIXED SHOE $50.68
Location: 15 Prev | Next Part: 16043124 *Qty: 0 SCREW -M8 X 14- $0.90
Location: 16 Prev | Next Part: 267808 *Qty: 0 ROLLER BEARING CAGE Call
Location: 17 Prev | Next Part: 267743 *Qty: 0 MOUNTING Call
Location: 18 Prev | Next Part: 13026924 *Qty: 0 SCREW -M6 X 14- $0.90
Location: 19 Prev | Next Part: 197880 *Qty: 0 HYDRAULIC TENSIONER $158.68
Location: 20 Prev | Next Part: 14433124 *Qty: 0 SCREW -M6 X 18- $0.90
Location: 21 Prev | Next Part: 252512 *Qty: 0 BUSHING Call
Location: 22 Prev | Next Part: 250055 *Qty: 0 GASKET $3.38
Location: 23 Prev | Next Part: 264129 *Qty: 0 DRIVE GEAR Call
Location: 24 Prev | Next Part: 187656 *Qty: 0 PUMP DRIVE GEAR $268.91
Location: 25 Prev | Next Part: 186668 *Qty: 0 SCREW -M5 X 12- $17.85
Location: 26 Prev | Next Part: 253294 *Qty: 0 CHAIN $1,101.25
Location: 27 Prev | Next Part: 254327 *Qty: 0 MOUNTING Call
Location: 28 Prev | Next Part: 260615 *Qty: 0 FIXED SHOE Call
Location: 29 Prev | Next Part: 175306 *Qty: 0 SHOULDER $5.22
Location: 30 Prev | Next Part: 14305724 *Qty: 0 SCREW -M6 X 14- $0.90
Location: 31 Prev | Next Part: 11197774 *Qty: 0 WASHER Superseded
Location: 32 Prev | Next Part: 14305424 *Qty: 0 SCREW Superseded
Location: 33 Prev | Next Part: 11197774 *Qty: 0 WASHER Superseded
Location: 34 Prev | Next Part: 260228 *Qty: 0 GEAR WHEEL Call
Location: 35 Prev | Next Part: 140071 *Qty: 0 GASKET $1.14
Location: 36 Prev | Next Part: 264130 *Qty: 0 BUSHING Call

* Quantity shown indicates the number of pieces used in the diagram.
