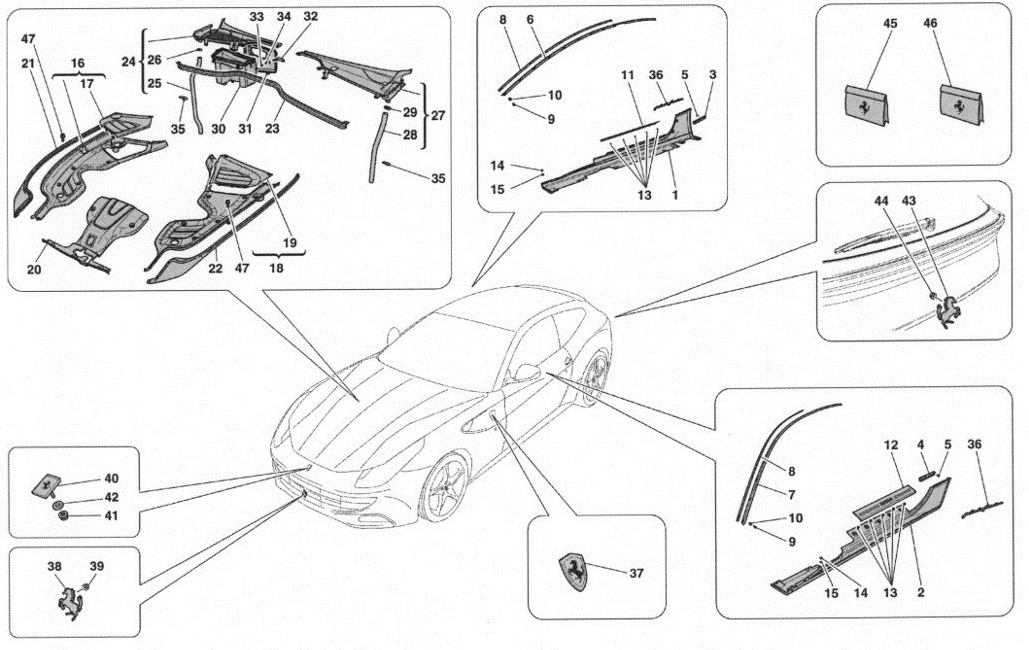

SHIELDS - EXTERNAL TRIM

Go to Split View

SHIELDS - EXTERNAL TRIM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 83342210 *Qty: 0 RH SILL TRIM LATERAL TRIM -Applicable up to Ass. No. 100724- $991.31
Location: 1 Prev | Next Part: 83314910 *Qty: 0 RH SILL TRIM LATERAL TRIM -Applicable from Ass. No. 100725- $2,420.97
Location: 2 Prev | Next Part: 83342310 *Qty: 0 LH SILL TRIM LATERAL TRIM -Applicable up to Ass. No. 100724- Superseded
Location: 2 Prev | Next Part: 83315010 *Qty: 0 LH SILL TRIM LATERAL TRIM -Applicable from Ass. No. 100725- $2,420.97
Location: 3 Prev | Next Part: 83315300 *Qty: 0 REAR RH SILL TRIM BRACKET $28.48
Location: 4 Prev | Next Part: 83315400 *Qty: 0 REAR LH SILL TRIM BRACKET $28.48
Location: 5 Prev | Next Part: 11625824 *Qty: 0 SCREW -M6 X 18- $0.90
Location: 6 Prev | Next Part: 82169700 *Qty: 0 RH ROOF GUTTER MOULDING $486.38
Location: 7 Prev | Next Part: 82169800 *Qty: 0 LH ROOF GUTTER MOULDING $486.38
Location: 8 Prev | Next Part: 84020400 *Qty: 0 GUTTER RAIL TRIM SEAL $12.94
Location: 9 Prev | Next Part: 16083501 *Qty: 0 SCREW -No longer supplied- -Replaced by 15538777- $0.90
Location: 9 Prev | Next Part: 15538777 *Qty: 0 SCREW $0.90
Location: 10 Prev | Next Part: 14215480 *Qty: 0 BLOCK Superseded
Location: 11 Prev | Next Part: 83315100 *Qty: 0 RH KICKPLATE $341.79
Location: 11 Prev | Next Part: 84004600 *Qty: 0 RH KICKPLATE -Carbon- $2,987.76
Location: 12 Prev | Next Part: 83315200 *Qty: 0 LH KICKPLATE $341.79
Location: 12 Prev | Next Part: 84004800 *Qty: 0 LH KICKPLATE -Carbon- $2,987.76
Location: 13 Prev | Next Part: 80874900 *Qty: 0 SCREW $1.41
Location: 14 Prev | Next Part: 82115900 *Qty: 0 SCREW -M6 X 12- -No longer supplied- -Replaced by 11625824- Call
Location: 14 Prev | Next Part: 11625824 *Qty: 0 SCREW -M6 X 18- $0.90
Location: 14 Prev | Next Part: 80874900 *Qty: 0 SCREW $1.41
Location: 14 Prev | Next Part: 80874700 *Qty: 0 SCREW -M6 X 22- Superseded
Location: 15 Prev | Next Part: 10732414 *Qty: 0 WASHER $9.83
Location: 16 Prev | Next Part: 83753300 *Qty: 0 RH LATERAL ENGINE COMPARTMENT COVER -Not for GD- Superseded
Location: 16 Prev | Next Part: 84487300 *Qty: 0 RH LATERAL ENGINE COMPARTMENT COVER -Applicable for GD- Call
Location: 17 Prev | Next Part: 83896700 *Qty: 0 RH COVER $427.21
Location: 18 Prev | Next Part: 83753400 *Qty: 0 LH LATERAL ENGINE COMPARTMENT COVER Superseded
Location: 19 Prev | Next Part: 83896800 *Qty: 0 LH COVER Call
Location: 20 Prev | Next Part: 82502700 *Qty: 0 CENTRAL ENGINE COMPARTMENT COVER $170.89
Location: 21 Prev | Next Part: 83320000 *Qty: 0 RH SEAL $109.91
Location: 22 Prev | Next Part: 83320100 *Qty: 0 LH SEAL $109.91
Location: 23 Prev | Next Part: 83315600 *Qty: 0 UNDERWINDSCREEN TRAY SEAL Call
Location: 24 Prev | Next Part: 83765400 *Qty: 0 COMPL. RH UNDERWINDSCREEN TRAY -Not for GD- Call
Location: 24 Prev | Next Part: 83943300 *Qty: 0 COMPL. RH UNDERWINDSCREEN TRAY -Applicable for GD- Call
Location: 25 Prev | Next Part: 83720000 *Qty: 0 CORRUGATED PIPE -L. 742 mm- Call
Location: 26 Prev | Next Part: 13000490 *Qty: 0 SCREW COLLAR Call
Location: 27 Prev | Next Part: 83765500 *Qty: 0 COMPL. LH UNDERWINDSCREEN TRAY -Not for GD- Call
Location: 27 Prev | Next Part: 83943400 *Qty: 0 COMPL. LH UNDERWINDSCREEN TRAY -Applicable for GD- Call
Location: 28 Prev | Next Part: 83720100 *Qty: 0 CORRUGATED PIPE -L. 692 mm- Call
Location: 29 Prev | Next Part: 13000490 *Qty: 0 SCREW COLLAR Call
Location: 30 Prev | Next Part: 84020300 *Qty: 0 AC UNIT AIR INTAKE TRAY, MOBILE PART -Not for GD- $306.17
Location: 30 Prev | Next Part: 84027100 *Qty: 0 AC UNIT AIR INTAKE TRAY, MOBILE PART -Applicable for GD- Call
Location: 31 Prev | Next Part: 84020200 *Qty: 0 AC UNIT AIR INTAKE TRAY, FIXED PART -Not for GD- Call
Location: 31 Prev | Next Part: 84027000 *Qty: 0 AC UNIT AIR INTAKE TRAY, FIXED PART -Applicable for GD- Call
Location: 32 Prev | Next Part: 84082700 *Qty: 0 BRACKET Call
Location: 33 Prev | Next Part: 16284927 *Qty: 0 SCREW -M5 X 10- -No longer supplied- -Replaced by 16285127- Call
Location: 33 Prev | Next Part: 16285127 *Qty: 0 SCREW -M6 X 16- $0.90
Location: 34 Prev | Next Part: 12638124 *Qty: 0 WASHER $0.90
Location: 35 Prev | Next Part: 206739 *Qty: 0 CABLE TIE -No longer supplied- $10.75
Location: 36 Prev | Next Part: 81604500 *Qty: 0 PININFARINA BADGE $84.91
Location: 37 Prev | Next Part: 83628100 *Qty: 0 SQUADRA CORSE SHIELD BADGE -Version with shields- $1,139.28
Location: 38 Prev | Next Part: 67165200 *Qty: 0 CAVALLINO RAMPANTE BADGE $74.86
Location: 39 Prev | Next Part: 16101711 *Qty: 0 NUT $0.90
Location: 40 Prev | Next Part: 65394800 *Qty: 0 FRONT BADGE $223.35
Location: 41 Prev | Next Part: 113647 *Qty: 0 NUT $0.90
Location: 42 Prev | Next Part: 12638124 *Qty: 0 WASHER $0.90
Location: 43 Prev | Next Part: 80214400 *Qty: 0 CAVALLINO RAMPANTE BADGE $75.63
Location: 44 Prev | Next Part: 62790300 *Qty: 0 NUT $0.90
Location: 45 Prev | Next Part: 70002076 *Qty: 0 COMPL. FILM KIT $2,932.42
Location: 45 Prev | Next Part: 70002077 *Qty: 0 LH SIDE FILM KIT $1,778.82
Location: 45 Prev | Next Part: 70002078 *Qty: 0 RH SIDE FILM KIT $1,778.82
Location: 45 Prev | Next Part: 70002079 *Qty: 0 FRONT ADHESIVE FILM KIT $2,110.81
Location: 46 Prev | Next Part: 70002083 *Qty: 0 HIGH WEAR FILM KIT $266.22
Location: 47 Prev | Next Part: 14304187 *Qty: 0 SCREW -M5 X 12- $0.90

* Quantity shown indicates the number of pieces used in the diagram.
