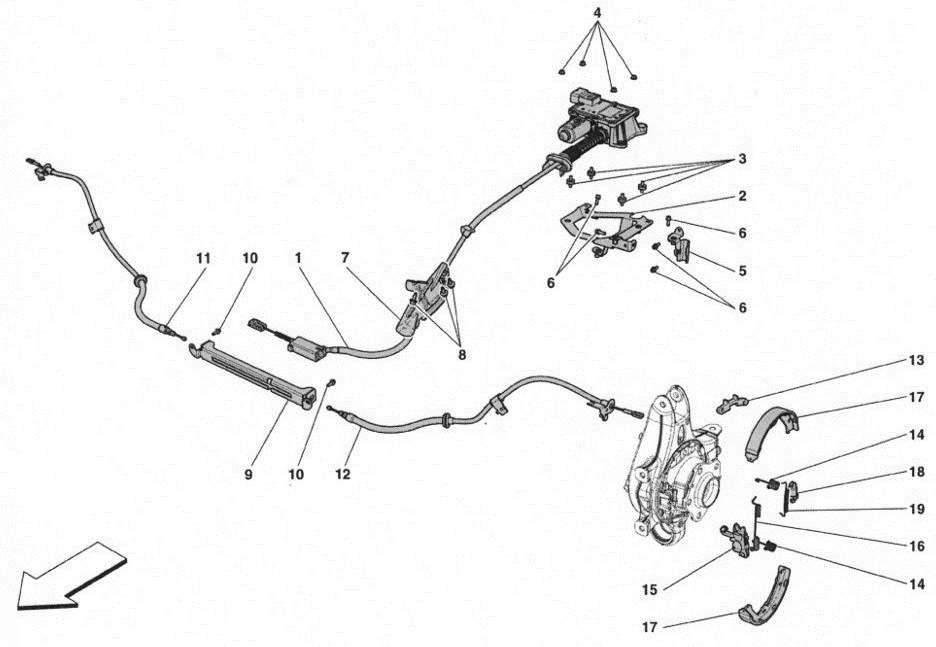

PARKING BRAKE CONTROL

Go to Split View

PARKING BRAKE CONTROL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 269268 *Qty: 0 COMPL. ELECTRONIC ACTUATOR -Applicable up to Ass. No. 100649- -Applicable until depletion- Superseded
Location: 1 Prev | Next Part: 281146 *Qty: 0 COMPL. ELECTRONIC ACTUATOR -Applicable from Ass. No. 100650- -Applicable after depletion of 269268- $1,375.71
Location: 2 Prev | Next Part: 272515 *Qty: 0 BRACKET Call
Location: 3 Prev | Next Part: 225408 *Qty: 0 CYLINDRICAL BUSHING $8.68
Location: 4 Prev | Next Part: 14059214 *Qty: 0 NUT $0.90
Location: 5 Prev | Next Part: 274559 *Qty: 0 BRACKET -Fastening EPB to rear part- Call
Location: 6 Prev | Next Part: 231617 *Qty: 0 SCREW -M6 X 18- $0.90
Location: 7 Prev | Next Part: 248300 *Qty: 0 EPB CABLE HEAT SHIELD Call
Location: 8 Prev | Next Part: 11566224 *Qty: 0 SCREW -M5 X 14- $0.90
Location: 9 Prev | Next Part: 238549 *Qty: 0 EQUALISER BRACKET $114.11
Location: 10 Prev | Next Part: 11568027 *Qty: 0 SCREW -M6 X 18- $2.01
Location: 11 Prev | Next Part: 249701 *Qty: 0 RH PARKING BRAKE CABLE $236.06
Location: 12 Prev | Next Part: 249700 *Qty: 0 LH PARKING BRAKE CABLE $236.06
Location: 13 Prev | Next Part: 240953 *Qty: 0 REACTION PLATE $12.10
Location: 14 Prev | Next Part: 240952 *Qty: 0 FASTENER SPRING $11.62
Location: 15 Prev | Next Part: 254156 *Qty: 0 COMPL. PARKING BRAKE LEVER $146.89
Location: 16 Prev | Next Part: 240947 *Qty: 0 LONG EXTENSION SPRING $14.97
Location: 17 Prev | Next Part: 240948 *Qty: 0 PARKING BRAKE SHOE $183.14
Location: 18 Prev | Next Part: 186572 *Qty: 0 ADJUSTER $76.65
Location: 19 Prev | Next Part: 243123 *Qty: 0 SHORT EXTENSION SPRING $14.97

* Quantity shown indicates the number of pieces used in the diagram.
