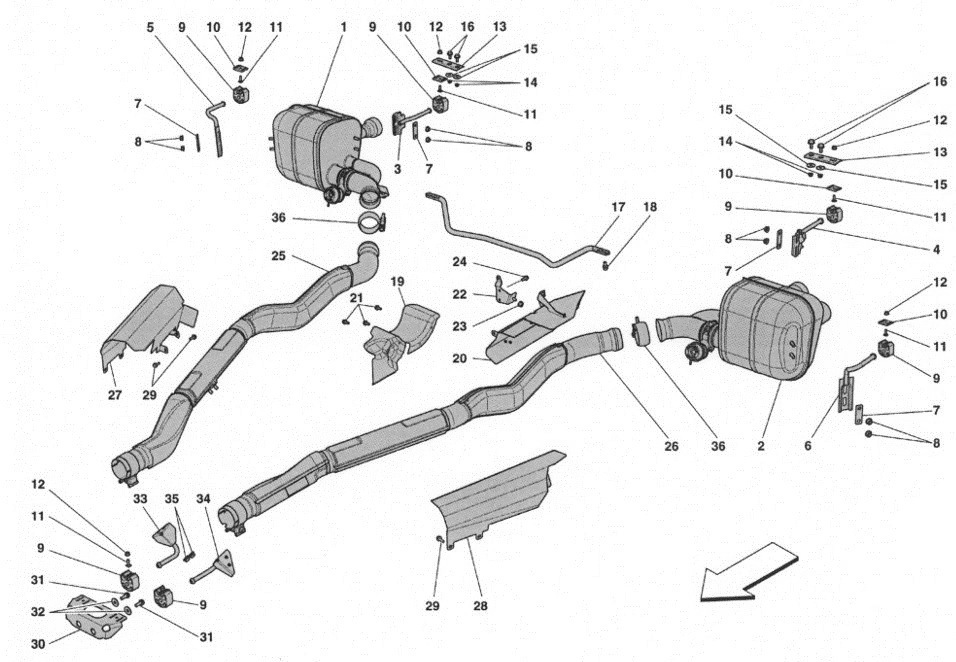

MUFFLERS/SILENCERS

Go to Split View

MUFFLERS/SILENCERS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 272319 *Qty: 0 REAR RH SILENCER Superseded
Location: 2 Prev | Next Part: 272320 *Qty: 0 REAR LH SILENCER Superseded
Location: 3 Prev | Next Part: 268174 *Qty: 0 REAR RH BRACKET Call
Location: 4 Prev | Next Part: 268176 *Qty: 0 REAR LH BRACKET Call
Location: 5 Prev | Next Part: 250283 *Qty: 0 RH LATERAL BRACKET Call
Location: 6 Prev | Next Part: 250285 *Qty: 0 LH LATERAL BRACKET Call
Location: 7 Prev | Next Part: 240597 *Qty: 0 PLATE $11.28
Location: 8 Prev | Next Part: 14059311 *Qty: 0 NUT $0.90
Location: 9 Prev | Next Part: 239798 *Qty: 0 FLEXIBLE SILENCER MOUNTING BUSH $68.43
Location: 10 Prev | Next Part: 240598 *Qty: 0 PLATE $15.05
Location: 11 Prev | Next Part: 250222 *Qty: 0 SQUARE HEADED SCREW -M6 X 18.5- $3.74
Location: 12 Prev | Next Part: 14058421 *Qty: 0 NUT $1.44
Location: 13 Prev | Next Part: 266812 *Qty: 0 AR BRACKET Call
Location: 14 Prev | Next Part: 13046224 *Qty: 0 NUT $0.90
Location: 15 Prev | Next Part: 12647024 *Qty: 0 WASHER Superseded
Location: 16 Prev | Next Part: 16287127 *Qty: 0 SCREW -M8 X 20- $0.90
Location: 17 Prev | Next Part: 272615 *Qty: 0 SILENCER CROSS PIECE Call
Location: 18 Prev | Next Part: 231627 *Qty: 0 SCREW -M8 X 16- $0.90
Location: 19 Prev | Next Part: 272274 *Qty: 0 RH GEARBOX HEAT SHIELD $206.49
Location: 20 Prev | Next Part: 272275 *Qty: 0 LH GEARBOX HEAT SHIELD $192.25
Location: 21 Prev | Next Part: 231617 *Qty: 0 SCREW -M6 X 18- $0.90
Location: 22 Prev | Next Part: 263583 *Qty: 0 BRACKET -On LH strut- Call
Location: 23 Prev | Next Part: 14040611 *Qty: 0 NUT $0.90
Location: 24 Prev | Next Part: 16286124 *Qty: 0 SCREW -M6 X 20- $0.90
Location: 25 Prev | Next Part: 266421 *Qty: 0 RH REAR EXTENSION Call
Location: 26 Prev | Next Part: 266422 *Qty: 0 LH REAR EXTENSION Call
Location: 27 Prev | Next Part: 272668 *Qty: 0 RH FRONT GEARBOX HEAT SHIELD Call
Location: 28 Prev | Next Part: 269417 *Qty: 0 LH FRONT GEARBOX HEAT SHIELD Call
Location: 29 Prev | Next Part: 16286124 *Qty: 0 SCREW -M6 X 20- $0.90
Location: 30 Prev | Next Part: 272447 *Qty: 0 EXTENSION MOUNTING BRACKET Call
Location: 31 Prev | Next Part: 16043524 *Qty: 0 SCREW $0.90
Location: 32 Prev | Next Part: 11193874 *Qty: 0 WASHER $0.90
Location: 33 Prev | Next Part: 267836 *Qty: 0 REMOVABLE BRACKET ON RH REAR EXTENSION Call
Location: 34 Prev | Next Part: 267837 *Qty: 0 REMOVABLE BRACKET ON LH REAR EXTENSION Call
Location: 35 Prev | Next Part: 179808 *Qty: 0 NUT $0.90
Location: 36 Prev | Next Part: 229100 *Qty: 0 SPHERICAL CLAMP $42.52

* Quantity shown indicates the number of pieces used in the diagram.
