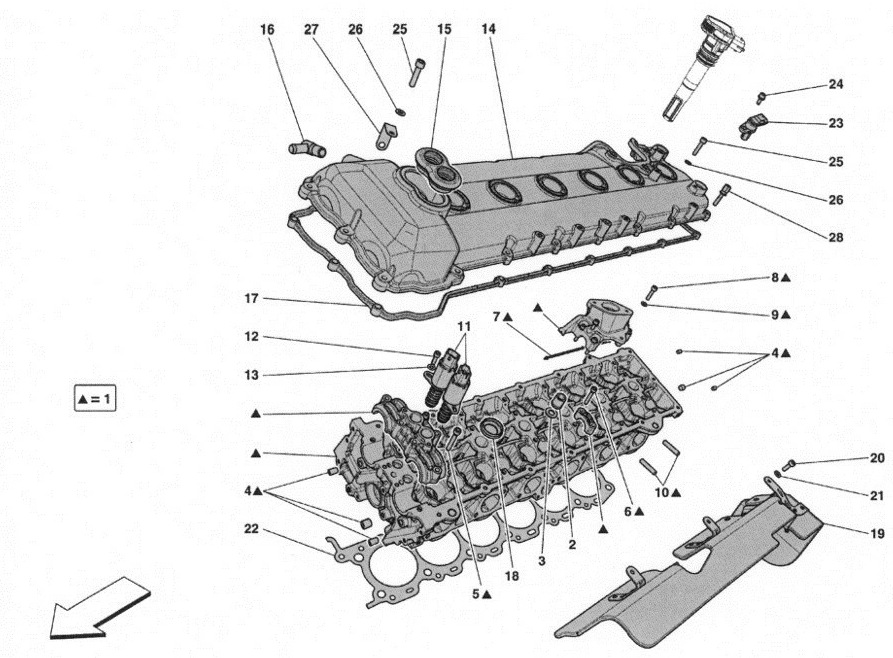

LH CYLINDER HEAD

Go to Split View

LH CYLINDER HEAD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 273224 *Qty: 0 LH HEAD $4,492.88
Location: 2 Prev | Next Part: 183524 *Qty: 0 NUT $4.33
Location: 3 Prev | Next Part: 151117 *Qty: 0 WASHER $1.41
Location: 4 Prev | Next Part: 127635 *Qty: 0 THREADED PLUG -M18 X 11 X 1.5- $4.35
Location: 4 Prev | Next Part: 14326001 *Qty: 0 THREADED PLUG -D. 10 X 1.25- $0.90
Location: 4 Prev | Next Part: 10275501 *Qty: 0 THREADED PLUG -M12 X 11- $1.27
Location: 4 Prev | Next Part: 127635 *Qty: 0 THREADED PLUG -M18 X 11 X 1.5- $4.35
Location: 4 Prev | Next Part: 199760 *Qty: 0 THREADED PLUG -D. 6 X 1- $0.90
Location: 5 Prev | Next Part: 243720 *Qty: 0 SCREW -M6 X 40- $0.90
Location: 5 Prev | Next Part: 243721 *Qty: 0 SCREW WITH WASHER -M6 X 45- $0.90
Location: 6 Prev | Next Part: 243719 *Qty: 0 SCREW WITH WASHER -M6 X 35- $0.90
Location: 7 Prev | Next Part: 239614 *Qty: 0 GASKET $6.72
Location: 8 Prev | Next Part: 243719 *Qty: 0 SCREW WITH WASHER -M6 X 35- $0.90
Location: 8 Prev | Next Part: 239502 *Qty: 0 SCREW -M6 X 25- $0.90
Location: 9 Prev | Next Part: 11197774 *Qty: 0 WASHER Superseded
Location: 10 Prev | Next Part: 211641 *Qty: 0 STUD BOLT -M8 X 16- -Shank length 24 mm- $1.24
Location: 10 Prev | Next Part: 13541324 *Qty: 0 STUD BOLT -M6 X 12- -Shank length 25 mm- $1.11
Location: 10 Prev | Next Part: 13541424 *Qty: 0 STUD BOLT -M6 X 12- -Shank length 28 mm- $0.90
Location: 11 Prev | Next Part: 255442 *Qty: 0 OIL PRESSURE REGULATOR VALVE $490.13
Location: 12 Prev | Next Part: 14304224 *Qty: 0 SCREW -M5 X 16- $0.90
Location: 13 Prev | Next Part: 11181574 *Qty: 0 WASHER $0.90
Location: 14 Prev | Next Part: 271269 *Qty: 0 LH CYLINDER HEAD COVER Call
Location: 15 Prev | Next Part: 229353 *Qty: 0 SOLENOID VALVE GASKET $17.95
Location: 16 Prev | Next Part: 271521 *Qty: 0 CONNECTOR Call
Location: 17 Prev | Next Part: 243802 *Qty: 0 LH HEAD COVER GASKET $85.45
Location: 18 Prev | Next Part: 223982 *Qty: 0 SPARK PLUG TUBE SEAL $2.50
Location: 19 Prev | Next Part: 276026 *Qty: 0 COMPL. LH HEAD HEAT SHIELD Call
Location: 20 Prev | Next Part: 14305724 *Qty: 0 SCREW -M6 X 14- $0.90
Location: 21 Prev | Next Part: 11197774 *Qty: 0 WASHER Superseded
Location: 22 Prev | Next Part: 243804 *Qty: 0 LH HEAD-CRANKCASE GASKET $300.28
Location: 23 Prev | Next Part: 224573 *Qty: 0 TIMING SENSOR $41.78
Location: 24 Prev | Next Part: 231616 *Qty: 0 SCREW -M6 X 14- $0.90
Location: 25 Prev | Next Part: 157218 *Qty: 0 SCREW -M6 X 25- $0.90
Location: 26 Prev | Next Part: 11197774 *Qty: 0 WASHER Superseded
Location: 27 Prev | Next Part: 219946 *Qty: 0 BRACKET Call
Location: 28 Prev | Next Part: 214412 *Qty: 0 STUD BOLT -No longer supplied- $13.37

* Quantity shown indicates the number of pieces used in the diagram.
