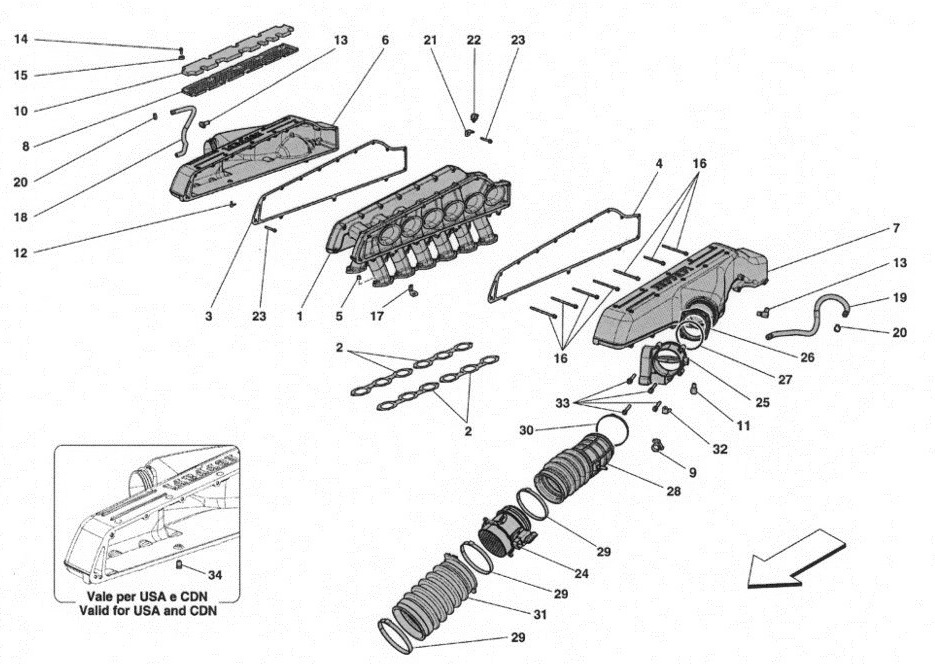

INTAKE MANIFOLD

Go to Split View

INTAKE MANIFOLD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 271909 *Qty: 0 COMPL. INTAKE MANIFOLD -Applicable up to engine No. 176320- Call
Location: 1 Prev | Next Part: 280957 *Qty: 0 COMPL. INTAKE MANIFOLD -Applicable from engine No. 176321- Call
Location: 2 Prev | Next Part: 259680 *Qty: 0 GASKET $11.29
Location: 3 Prev | Next Part: 276948 *Qty: 0 RH SEAL $76.36
Location: 4 Prev | Next Part: 276946 *Qty: 0 LH SEAL $76.36
Location: 5 Prev | Next Part: 228265 *Qty: 0 NUT $0.90
Location: 6 Prev | Next Part: 276950 *Qty: 0 RH INTAKE PLENUM Call
Location: 7 Prev | Next Part: 276952 *Qty: 0 LH INTAKE PLENUM Call
Location: 8 Prev | Next Part: 257849 *Qty: 0 COMPL. RH LINER HOLDER FRAME Call
Location: 8 Prev | Next Part: 257850 *Qty: 0 COMPL. LH LINER HOLDER FRAME Call
Location: 9 Prev | Next Part: 178430 *Qty: 0 CLIP $0.90
Location: 10 Prev | Next Part: 257851 *Qty: 0 RUBBER LINER Call
Location: 11 Prev | Next Part: 268877 *Qty: 0 CONNECTOR Call
Location: 12 Prev | Next Part: 268875 *Qty: 0 CONNECTOR -Not for USA, CDN- Call
Location: 13 Prev | Next Part: 198223 *Qty: 0 CONNECTOR Call
Location: 14 Prev | Next Part: 259328 *Qty: 0 SCREW -M6 X 14 X 1- Call
Location: 15 Prev | Next Part: 216292 *Qty: 0 GASKET $4.23
Location: 16 Prev | Next Part: 270936 *Qty: 0 SCREW -M6 X 40 X 1- -Fastening plenum to manifold- Call
Location: 16 Prev | Next Part: 14300524 *Qty: 0 SCREW -M6 X 75- -Lower rear fastening for LH plenum in area under pump- -No longer supplied- -Replaced by 14300534- $1.11
Location: 16 Prev | Next Part: 14300534 *Qty: 0 SCREW -M6 X 75- -Lower rear fastening for LH plenum in area under pump- Call
Location: 16 Prev | Next Part: 155304 *Qty: 0 SCREW -M6 X 85- -Fastening plenum in area under RH pump- -No longer supplied- -Replaced by 278351- Call
Location: 16 Prev | Next Part: 278351 *Qty: 0 SCREW -M6 X 85- -Fastening plenum in area under RH pump- Call
Location: 16 Prev | Next Part: 14303824 *Qty: 0 SCREW -M6 X 60- -Fastening plenum in area under RH pump- -No longer supplied- -Replaced by 14303834- $2.92
Location: 16 Prev | Next Part: 14303834 *Qty: 0 SCREW -M6 X 60- -Fastening plenum in area under RH pump- Call
Location: 16 Prev | Next Part: 14300424 *Qty: 0 SCREW -M6 X 95- -Fastening plenums in lower area- -No longer supplied- -Replaced by 14300434- Call
Location: 16 Prev | Next Part: 14300434 *Qty: 0 SCREW -M6 X 95- -Fastening plenums in lower area- Call
Location: 17 Prev | Next Part: 262736 *Qty: 0 BRACKET Call
Location: 18 Prev | Next Part: 276166 *Qty: 0 RH FLUSH PIPE Call
Location: 19 Prev | Next Part: 276167 *Qty: 0 LH FLUSH PIPE Call
Location: 20 Prev | Next Part: 13434670 *Qty: 0 COLLAR Call
Location: 21 Prev | Next Part: 261374 *Qty: 0 BRACKET Call
Location: 22 Prev | Next Part: 247440 *Qty: 0 CLIP $0.90
Location: 23 Prev | Next Part: 233600 *Qty: 0 SCREW -M6 X 12- $0.90
Location: 24 Prev | Next Part: 245028 *Qty: 0 AIR FLOW METER $406.58
Location: 25 Prev | Next Part: 179912 *Qty: 0 THROTTLE BODY $1,133.83
Location: 26 Prev | Next Part: 240262 *Qty: 0 SHIM $115.10
Location: 27 Prev | Next Part: 150302 *Qty: 0 GASKET $3.05
Location: 28 Prev | Next Part: 269867 *Qty: 0 LH CONNECTOR PIPE -Not for USA, CDN- $168.89
Location: 28 Prev | Next Part: 269865 *Qty: 0 LH CONNECTOR PIPE -Applicable for USA, CDN- $212.94
Location: 28 Prev | Next Part: 269866 *Qty: 0 RH CONNECTOR PIPE -Not for USA, CDN- $168.89
Location: 28 Prev | Next Part: 269864 *Qty: 0 RH CONNECTOR PIPE -Applicable for USA, CDN- $212.94
Location: 29 Prev | Next Part: 190151 *Qty: 0 RING CLAMP $3.59
Location: 30 Prev | Next Part: 180046 *Qty: 0 RING CLAMP $2.37
Location: 31 Prev | Next Part: 266404 *Qty: 0 CONNECTOR PIPE $119.39
Location: 32 Prev | Next Part: 268987 *Qty: 0 CABLE RETAINER BRACKET Call
Location: 33 Prev | Next Part: 14305924 *Qty: 0 SCREW -M6 X 45- Superseded
Location: 34 Prev | Next Part: 219786 *Qty: 0 THREADED PLUG -Applicable for USA, CDN- $20.71

* Quantity shown indicates the number of pieces used in the diagram.
