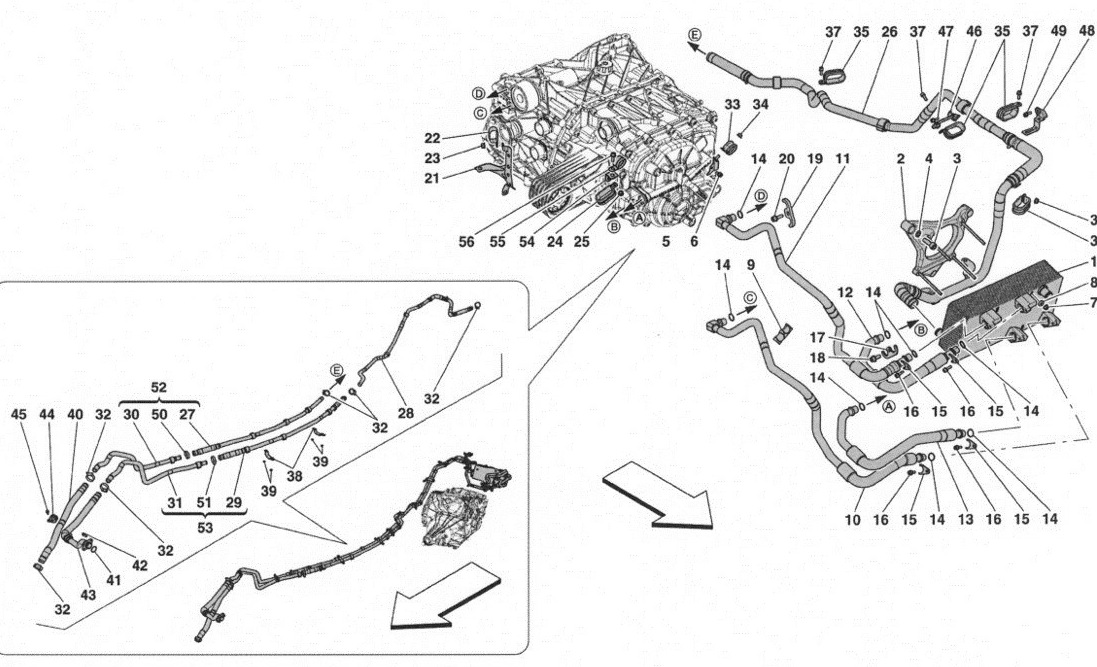

HEAT EXCHANGER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 266826 *Qty: 0 OIL HEAT EXCHANGER $1,342.58
Location: 2 Prev | Next Part: 268351 *Qty: 0 MOUNTING Call
Location: 3 Prev | Next Part: 14307534 *Qty: 0 SCREW -M10 X 1.25 X 30- $3.55
Location: 4 Prev | Next Part: 12648321 *Qty: 0 WASHER $1.01
Location: 5 Prev | Next Part: 268359 *Qty: 0 BRACKET Call
Location: 6 Prev | Next Part: 233600 *Qty: 0 SCREW -M6 X 12- $0.90
Location: 7 Prev | Next Part: 14058421 *Qty: 0 NUT $1.44
Location: 8 Prev | Next Part: 13604015 *Qty: 0 SHIM $1.11
Location: 9 Prev | Next Part: 264810 *Qty: 0 SHIM $5.56
Location: 10 Prev | Next Part: 262812 *Qty: 0 ATF FLUID DELIVERY PIPE $508.05
Location: 11 Prev | Next Part: 262813 *Qty: 0 ATF FLUID RETURN PIPE $470.38
Location: 12 Prev | Next Part: 262814 *Qty: 0 GL OIL RETURN PIPE $301.85
Location: 13 Prev | Next Part: 262815 *Qty: 0 GL OIL DELIVERY PIPE $353.74
Location: 14 Prev | Next Part: 254644 *Qty: 0 GASKET $0.90
Location: 15 Prev | Next Part: 262827 *Qty: 0 PIPE RETAINER FORK $19.94
Location: 16 Prev | Next Part: 231617 *Qty: 0 SCREW -M6 X 18- $0.90
Location: 17 Prev | Next Part: 261824 *Qty: 0 PIPE RETAINER FORK $31.34
Location: 18 Prev | Next Part: 248471 *Qty: 0 SCREW -M8 X 20- $1.43
Location: 19 Prev | Next Part: 236479 *Qty: 0 PIPE RETAINER FORK Superseded
Location: 20 Prev | Next Part: 231628 *Qty: 0 SCREW -M8 X 25- $0.90
Location: 21 Prev | Next Part: 274638 *Qty: 0 BRACKET Call
Location: 22 Prev | Next Part: 265771 *Qty: 0 BRACKET $2.84
Location: 23 Prev | Next Part: 14040611 *Qty: 0 NUT $0.90
Location: 24 Prev | Next Part: 61712500 *Qty: 0 BRACKET WITH SHEATH $2.16
Location: 25 Prev | Next Part: 14040611 *Qty: 0 NUT $0.90
Location: 26 Prev | Next Part: 266779 *Qty: 0 REAR WATER DELIVERY PIPE $740.53
Location: 27 Prev | Next Part: 271669 *Qty: 0 CENTRAL WATER DELIVERY PIPE -No longer supplied- -Replaced by 281461- Superseded
Location: 28 Prev | Next Part: 266781 *Qty: 0 REAR WATER RETURN PIPE $508.97
Location: 29 Prev | Next Part: 271668 *Qty: 0 CENTRAL WATER RETURN PIPE -No longer supplied- -Replaced by 281462- Superseded
Location: 30 Prev | Next Part: 275894 *Qty: 0 COMPL. FRONT WATER DELIVERY PIPE -No longer supplied- -Replaced by 281461- Call
Location: 31 Prev | Next Part: 275895 *Qty: 0 COMPL. WATER RETURN PIPE -No longer supplied- -Replaced by 281462- Call
Location: 32 Prev | Next Part: 268210 *Qty: 0 SCREW COLLAR $2.35
Location: 33 Prev | Next Part: 10442090 *Qty: 0 BRACKET WITH SHEATH Superseded
Location: 34 Prev | Next Part: 14040611 *Qty: 0 NUT $0.90
Location: 35 Prev | Next Part: 248454 *Qty: 0 BRACKET WITH SHEATH $10.04
Location: 36 Prev | Next Part: 14040611 *Qty: 0 NUT $0.90
Location: 37 Prev | Next Part: 231617 *Qty: 0 SCREW -M6 X 18- $0.90
Location: 38 Prev | Next Part: 266783 *Qty: 0 BRACKET Call
Location: 39 Prev | Next Part: 14040611 *Qty: 0 NUT $0.90
Location: 40 Prev | Next Part: 271546 *Qty: 0 FRONT WATER DELIVERY HOSE $389.49
Location: 41 Prev | Next Part: 250888 *Qty: 0 GASKET $0.94
Location: 42 Prev | Next Part: 231619 *Qty: 0 SCREW -M6 X 22- $0.90
Location: 43 Prev | Next Part: 270155 *Qty: 0 FRONT WATER RETURN HOSE $112.50
Location: 44 Prev | Next Part: 10442290 *Qty: 0 BRACKET WITH SHEATH $0.94
Location: 45 Prev | Next Part: 16286024 *Qty: 0 SCREW -M6 X 16- $0.90
Location: 46 Prev | Next Part: 273830 *Qty: 0 BRACKET $41.87
Location: 47 Prev | Next Part: 231617 *Qty: 0 SCREW -M6 X 18- $0.90
Location: 48 Prev | Next Part: 272486 *Qty: 0 BRACKET Call
Location: 49 Prev | Next Part: 231617 *Qty: 0 SCREW -M6 X 18- $0.90
Location: 50 Prev | Next Part: 10860470 *Qty: 0 COLLAR -No longer supplied- -Replaced by 281461- Call
Location: 51 Prev | Next Part: 10860470 *Qty: 0 COLLAR -No longer supplied- -Replaced by 281462- Call
Location: 52 Prev | Next Part: 276790 *Qty: 0 COMPL. WATER DELIVERY PIPE -No longer supplied- -Replaced by 281461- Superseded
Location: 52 Prev | Next Part: 281461 *Qty: 0 COMPL. WATER DELIVERY PIPE $306.47
Location: 53 Prev | Next Part: 276792 *Qty: 0 COMPL. WATER RETURN PIPE -No longer supplied- -Replaced by 281462- Call
Location: 53 Prev | Next Part: 281462 *Qty: 0 COMPL. WATER RETURN PIPE $376.67
Location: 54 Prev | Next Part: 142060 *Qty: 0 BRACKET $8.33
Location: 55 Prev | Next Part: 10442190 *Qty: 0 BRACKET WITH SHEATH $0.94
Location: 56 Prev | Next Part: 233600 *Qty: 0 SCREW -M6 X 12- $0.90

* Quantity shown indicates the number of pieces used in the diagram.
