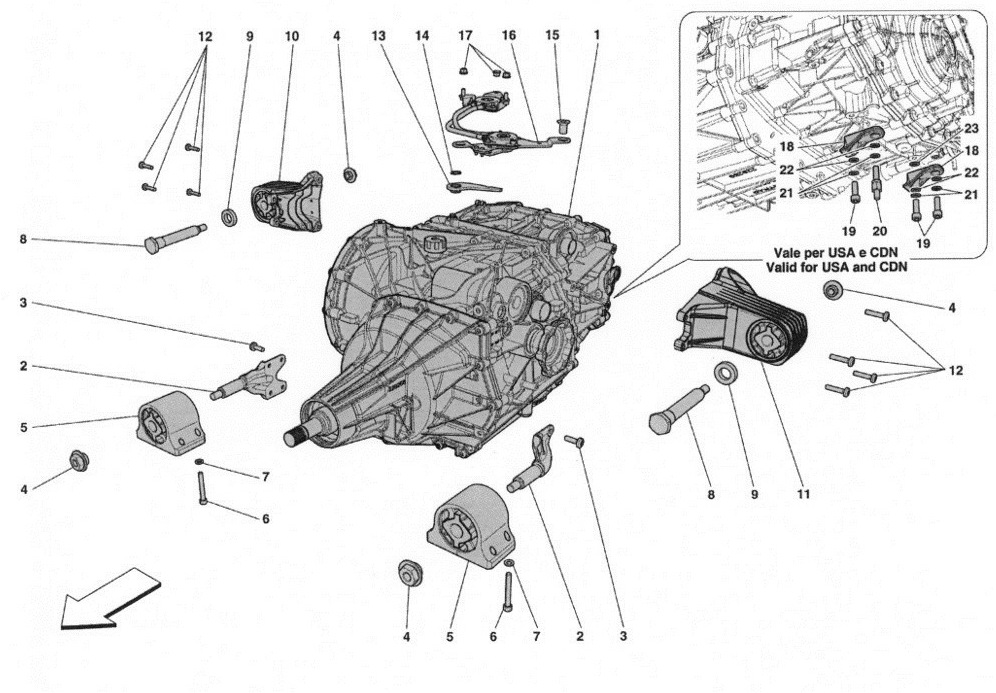

GEARBOX HOUSING

Go to Split View

GEARBOX HOUSING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 270501 *Qty: 0 COMPL. DCT GEARBOX Call
Location: 2 Prev | Next Part: 235647 *Qty: 0 FRONT STRUT $211.82
Location: 3 Prev | Next Part: 247856 *Qty: 0 SCREW -M8 X 1.25 X 25- Call
Location: 4 Prev | Next Part: 260046 *Qty: 0 NUT Call
Location: 5 Prev | Next Part: 253004 *Qty: 0 COMPL. BUSHING MOUNTING $341.35
Location: 6 Prev | Next Part: 14308924 *Qty: 0 SCREW -M8 X 60- $5.17
Location: 7 Prev | Next Part: 11198074 *Qty: 0 WASHER $0.90
Location: 8 Prev | Next Part: 243075 *Qty: 0 GEARBOX MOUNTING BUSH PIN $141.85
Location: 9 Prev | Next Part: 243122 *Qty: 0 SHIM $7.57
Location: 10 Prev | Next Part: 266362 *Qty: 0 COMPL. RH REAR STRUT $390.91
Location: 11 Prev | Next Part: 266364 *Qty: 0 COMPL. LH REAR STRUT $400.18
Location: 12 Prev | Next Part: 247857 *Qty: 0 SCREW -M8 X 1.25 X 35- $2.58
Location: 13 Prev | Next Part: 238370 *Qty: 0 COMPLETE RELEASE LEVER $68.96
Location: 14 Prev | Next Part: 11066176 *Qty: 0 SEEGER RING $0.90
Location: 15 Prev | Next Part: 243151 *Qty: 0 SCREW -M12 X 1.25 X 20- $7.45
Location: 16 Prev | Next Part: 268926 *Qty: 0 COMPL. PARK LOCK RELEASE $712.05
Location: 17 Prev | Next Part: 14040611 *Qty: 0 NUT $0.90
Location: 18 Prev | Next Part: 248689 *Qty: 0 RETENTION BRACKET -Applicable for USA, CDN- $65.37
Location: 19 Prev | Next Part: 14306474 *Qty: 0 SCREW -Applicable for USA, CDN- $0.90
Location: 20 Prev | Next Part: 266645 *Qty: 0 STUD BOLT -Applicable for USA, CDN- $18.52
Location: 21 Prev | Next Part: 12638524 *Qty: 0 WASHER -Applicable for USA, CDN- $0.90
Location: 22 Prev | Next Part: 12601374 *Qty: 0 WASHER -Applicable for USA, CDN- $0.90
Location: 23 Prev | Next Part: 10730514 *Qty: 0 WASHER -Applicable for USA, CDN- $1.01

* Quantity shown indicates the number of pieces used in the diagram.
