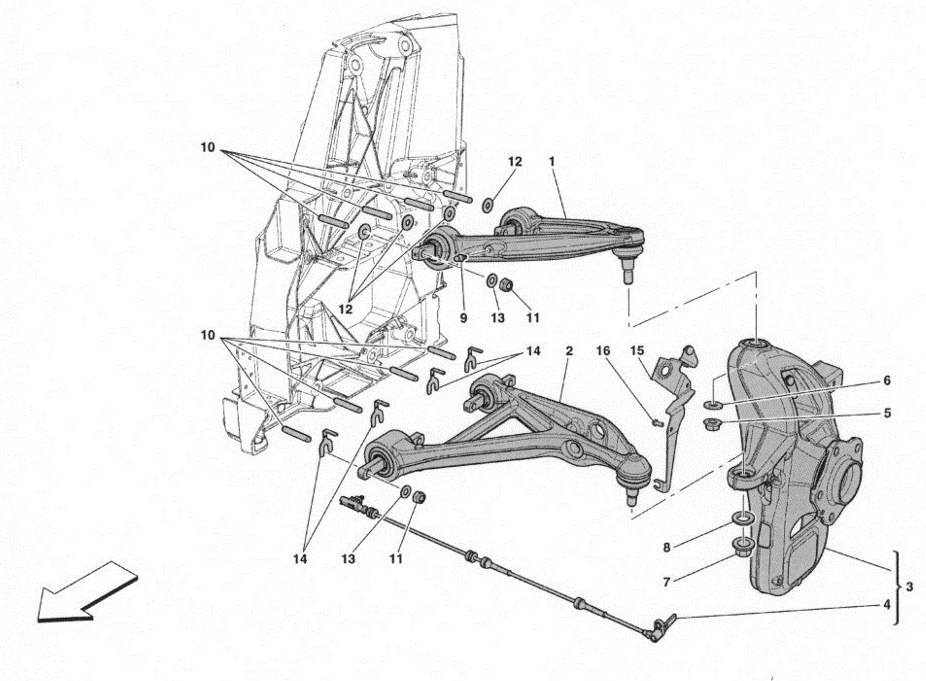

FRONT SUSPENSION - ARMS

Go to Split View

FRONT SUSPENSION - ARMS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 269263 *Qty: 0 COMPL. RH FRONT UPPER ARM $1,024.36
Location: 1 Prev | Next Part: 269262 *Qty: 0 COMPL. LH FRONT UPPER ARM $1,024.36
Location: 2 Prev | Next Part: 268895 *Qty: 0 COMPL. RH FRONT LOWER ARM -No longer supplied- -Replaced by 268897- Superseded
Location: 2 Prev | Next Part: 268897 *Qty: 0 COMPL. RH FRONT LOWER ARM $1,455.06
Location: 2 Prev | Next Part: 268894 *Qty: 0 COMPL. LH FRONT LOWER ARM -No longer supplied- -Replaced by 268896- Superseded
Location: 2 Prev | Next Part: 268896 *Qty: 0 COMPL. LH FRONT LOWER ARM $1,455.06
Location: 3 Prev | Next Part: 268378 *Qty: 0 COMPL. RH FRONT HUB CARRIER $2,643.79
Location: 3 Prev | Next Part: 268377 *Qty: 0 COMPL. LH FRONT HUB CARRIER $2,643.79
Location: 4 Prev | Next Part: 259615 *Qty: 0 ABS SENSOR $82.46
Location: 5 Prev | Next Part: 149807 *Qty: 0 NUT $1.44
Location: 6 Prev | Next Part: 12646921 *Qty: 0 WASHER $0.90
Location: 7 Prev | Next Part: 203795 *Qty: 0 NUT $3.01
Location: 8 Prev | Next Part: 241689 *Qty: 0 WASHER $9.80
Location: 9 Prev | Next Part: 216973 *Qty: 0 BALL JOINT $4.27
Location: 10 Prev | Next Part: 264528 *Qty: 0 THREADED ROD $5.01
Location: 11 Prev | Next Part: 104114 *Qty: 0 NUT Superseded
Location: 12 Prev | Next Part: 12646821 *Qty: 0 WASHER $0.90
Location: 12 Prev | Next Part: 14496624 *Qty: 0 WASHER $0.90
Location: 13 Prev | Next Part: 14496624 *Qty: 0 WASHER $0.90
Location: 14 Prev | Next Part: 238692 *Qty: 0 ADJUSTMENT SHIM -Th. 0.5 mm- $8.54
Location: 14 Prev | Next Part: 238693 *Qty: 0 ADJUSTMENT SHIM -Th. 1 mm- $6.84
Location: 14 Prev | Next Part: 238694 *Qty: 0 ADJUSTMENT SHIM -Th. 2 mm- $6.84
Location: 14 Prev | Next Part: 238881 *Qty: 0 ADJUSTMENT SHIM -Th. 1.5 mm- $6.84
Location: 14 Prev | Next Part: 238882 *Qty: 0 ADJUSTMENT SHIM -Th. 2.5 mm- $6.84
Location: 14 Prev | Next Part: 238883 *Qty: 0 ADJUSTMENT SHIM -Th. 3 mm- $6.84
Location: 14 Prev | Next Part: 238884 *Qty: 0 ADJUSTMENT SHIM -Th. 3.5 mm- $6.84
Location: 14 Prev | Next Part: 238885 *Qty: 0 ADJUSTMENT SHIM -Th. 4 mm- $6.84
Location: 15 Prev | Next Part: 274461 *Qty: 0 RH JOINT BRACKET $86.51
Location: 15 Prev | Next Part: 274460 *Qty: 0 LH JOINT BRACKET $86.51
Location: 16 Prev | Next Part: 190870 *Qty: 0 SCREW -M6 X 14- $2.89

* Quantity shown indicates the number of pieces used in the diagram.
