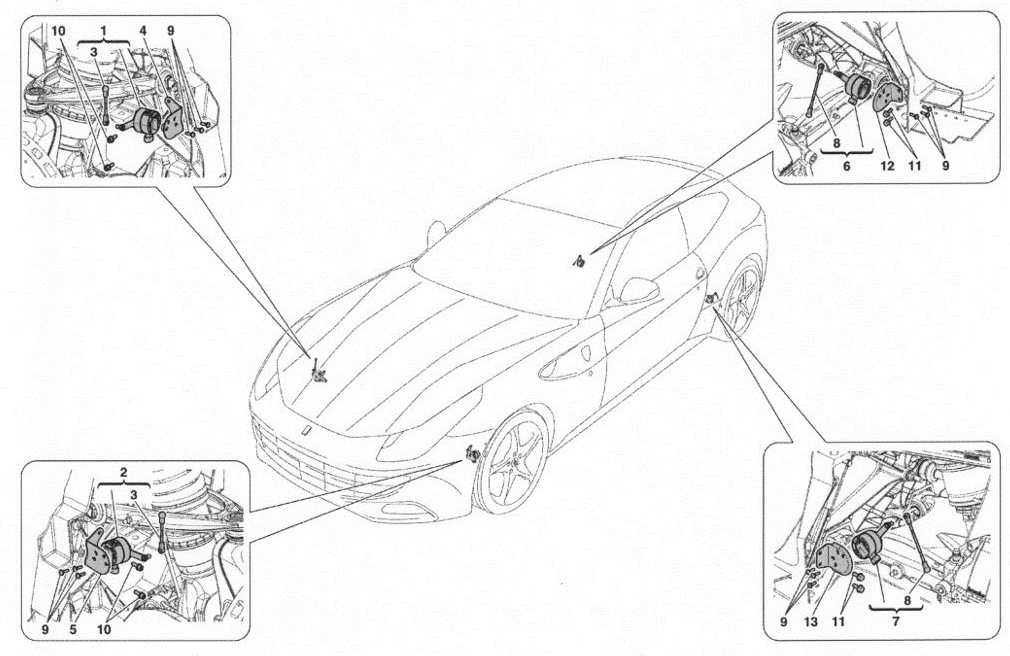

ELECTRONIC MANAGEMENT (SUSPENSION)

Go to Split View

ELECTRONIC MANAGEMENT (SUSPENSION)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 253164 *Qty: 0 COMPL. FRONT RH MOTION SENSOR $244.42
Location: 2 Prev | Next Part: 253162 *Qty: 0 COMPL. FRONT LH MOTION SENSOR $244.42
Location: 3 Prev | Next Part: 253165 *Qty: 0 POTENTIOMETER TIE-ROD -L. 72.2 mm- $57.44
Location: 4 Prev | Next Part: 263090 *Qty: 0 FRONT RH BRACKET Call
Location: 5 Prev | Next Part: 263089 *Qty: 0 FRONT LH BRACKET Call
Location: 6 Prev | Next Part: 259266 *Qty: 0 COMPL. REAR RH MOTION SENSOR $244.59
Location: 7 Prev | Next Part: 259265 *Qty: 0 COMPL. REAR LH MOTION SENSOR $244.59
Location: 8 Prev | Next Part: 229653 *Qty: 0 POTENTIOMETER TIE-ROD -L. 115 mm- $40.83
Location: 9 Prev | Next Part: 217456 *Qty: 0 SCREW $0.90
Location: 10 Prev | Next Part: 231617 *Qty: 0 SCREW -M6 X 18- $0.90
Location: 11 Prev | Next Part: 16286024 *Qty: 0 SCREW -M6 X 16- $0.90
Location: 12 Prev | Next Part: 268368 *Qty: 0 REAR RH BRACKET Call
Location: 13 Prev | Next Part: 268367 *Qty: 0 REAR LH BRACKET Call

* Quantity shown indicates the number of pieces used in the diagram.
